BASIC OPERATION
3-9
Selecting D ‘kHz’ step
Whenthe‘kHz’QuickTuningisselected,thefrequen-
cy can be changed in the selected ‘kHz’ steps. The
steps can be memorized, depending on the operating
modes.
On the Mode selection screen, select the desired op- q
erating mode. (p. 3-17)

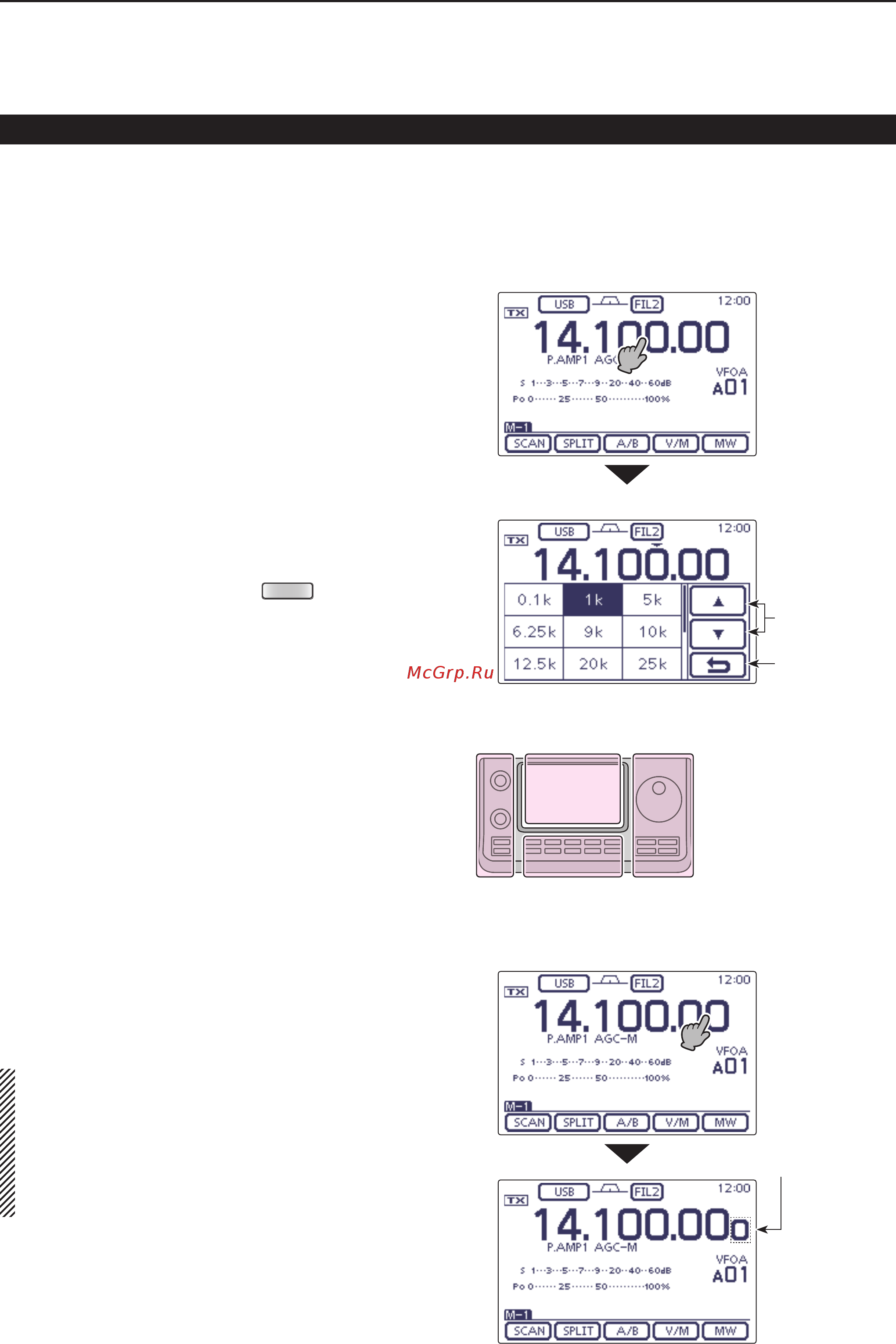

Touch the kHz digits for 1 second to enter the Tuning w
step selection screen.
•The‘kHz’QuickTuningfunctionisturnedON,andthen
the “Z” icon is displayed.
Touch the desired tuning step to e
select the desired
‘
kHz
’
step.
•0.1,1,5,6.25,9,10,12.5,20,25,50and100kHzare
selectable.
•Ifthedesiredstepisnotdisplayed,touch[Y] or [Z](D)
to select the page.
•On theTuning step selection screen, rotating the Dial
also selects the tuning step.
•Ifdesired,touch[](D) or push
MENU
(C) to return to
the normal operating screen.
Repeat steps r q to e to select the Quick tuning
steps for other modes.
Setting frequency (Continued)
The L, R, C or D in the in-
structions indicate the part
of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
L
eft
R
ight
C
enter
D
isplay
Selecting 1 Hz step D
You can change the frequency in 1 Hz steps for fine
tuning.
Touch the Hz digits for 1 second to turn the 1 Hz tun- ➥
ing step ON or OFF.
NOTE:
•WhentheRITfunctionisused,italsotunesin1Hz
tuning steps.
•The frequencychanges in 50 Hz steps when the
[UP]/[DN] switches of the microphone are used for
frequency tuning (if the quick tuning function is not
selected.)
Touch the kHz dig-
its for 1 second
•Tuningstepselectionscreen
Selects pages
Cancel edit
Touch the Hz dig-
its for 1 second
1 Hz indication
