Icom IC-Q7A [10/43] Frequency and channel setting
![Icom IC-Q7A [10/43] Frequency and channel setting](/views2/1074437/page10/bga.png)
6
3
FREQUENCY AND CHANNEL SETTING
■
VFO and memory/call channels
This transceiver has 2 normal operating modes: VFO mode
and memory (call) mode.
VFO mode is used for setting a desired frequency within the
band range.
➥Push [V/M] once or twice to select
VFO mode.
Memory (call) mode is used for operation of memory (call)
channels which have programmed frequencies.
➥Push [V/M] once or twice to select
memory mode.
•To program a memory, refer to p. 12.
➥Push [CALL(LOCK)] to select a call
channel.
What is VFO?
VFO is an abbreviation of Variable Frequency Oscillator. Fre-
quencies for transmitting and receiving are generated and
controlled by the VFO.

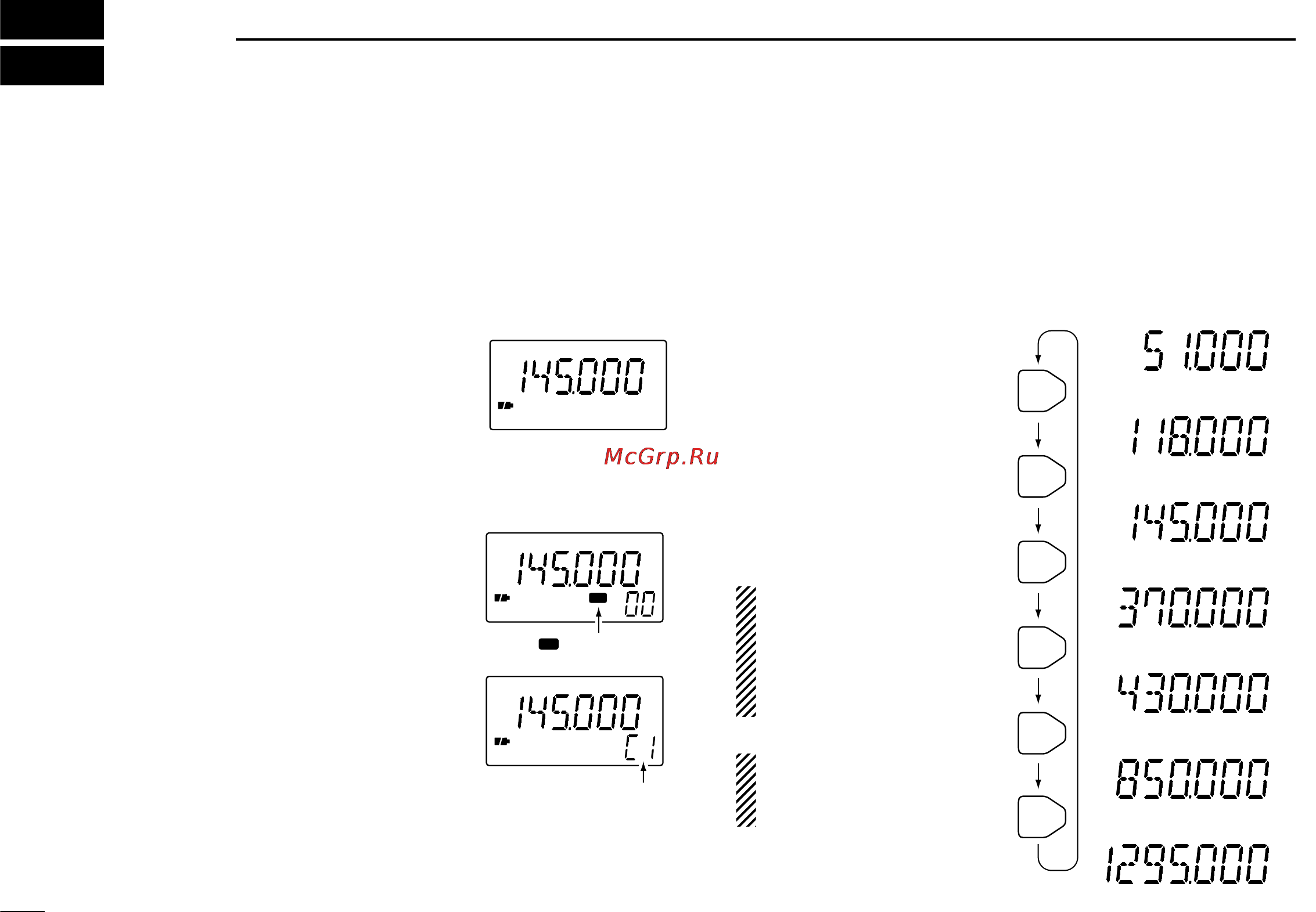

■ Operating band selection
The transceiver can receive the 50 MHz band, VHF avionics
band, 144 MHz band, 300 MHz band, 400 MHz band, 800
MHz band* or 1200 MHz band.
➥Push [BAND] several
times to select the de-
sired band.
•When a memory or call
channel is selected, the
first push of [BAND] se-
lects VFO mode (and
transfers the memory or
call channel contents).
When pushing [PTT],
“OFF” appears indicating
the frequency is outside
the 144/400 MHz ama-
teur bands.
*Some frequencies can-
not be received with
the U.S.A.version.
FM
FM
MR
FM
MR
“ ” appears.
“C1” or “C2” appears.
FM
FM
FM
FM
AM
FM
FM
30–89.995 MHz
90–141.995 MHz
142–254.995 MHz
255–382.995 MHz
383–769.745 MHz
769.750–939.995 MHz
940–1309.995 MHz
BAND
BAND
BAND
BAND
BAND
BAND
