25
8
REPEATER OPERATION
■ Auto repeater function
(U.S.A. version only)
The U.S.A. version automatically activates the repeater set-
tings (duplex ON/OFF, duplex direction, tone encoder
ON/OFF) when the operating frequency falls within or outside
of the general repeater output frequency range. The offset
and repeater tone frequencies are not changed by the auto
repeater function, reset these frequencies, if necessary.
q Select VFO mode with [V/M].
w Push [V/M] for 2 sec. to enter expanded set mode.
e Rotate [DIAL] until “AUTORP” appears.
•Turn the expanded set mode ON for selection. (p.28)
•“AUTO RP” disappears after 1 sec. and “AR” appears.
r While pushing [FUNC], rotate [DIAL] to turn the auto re-
peater function ON (DUP ONLY or DUP TONE) or OFF.
t Push [V/M] to exit set mode.

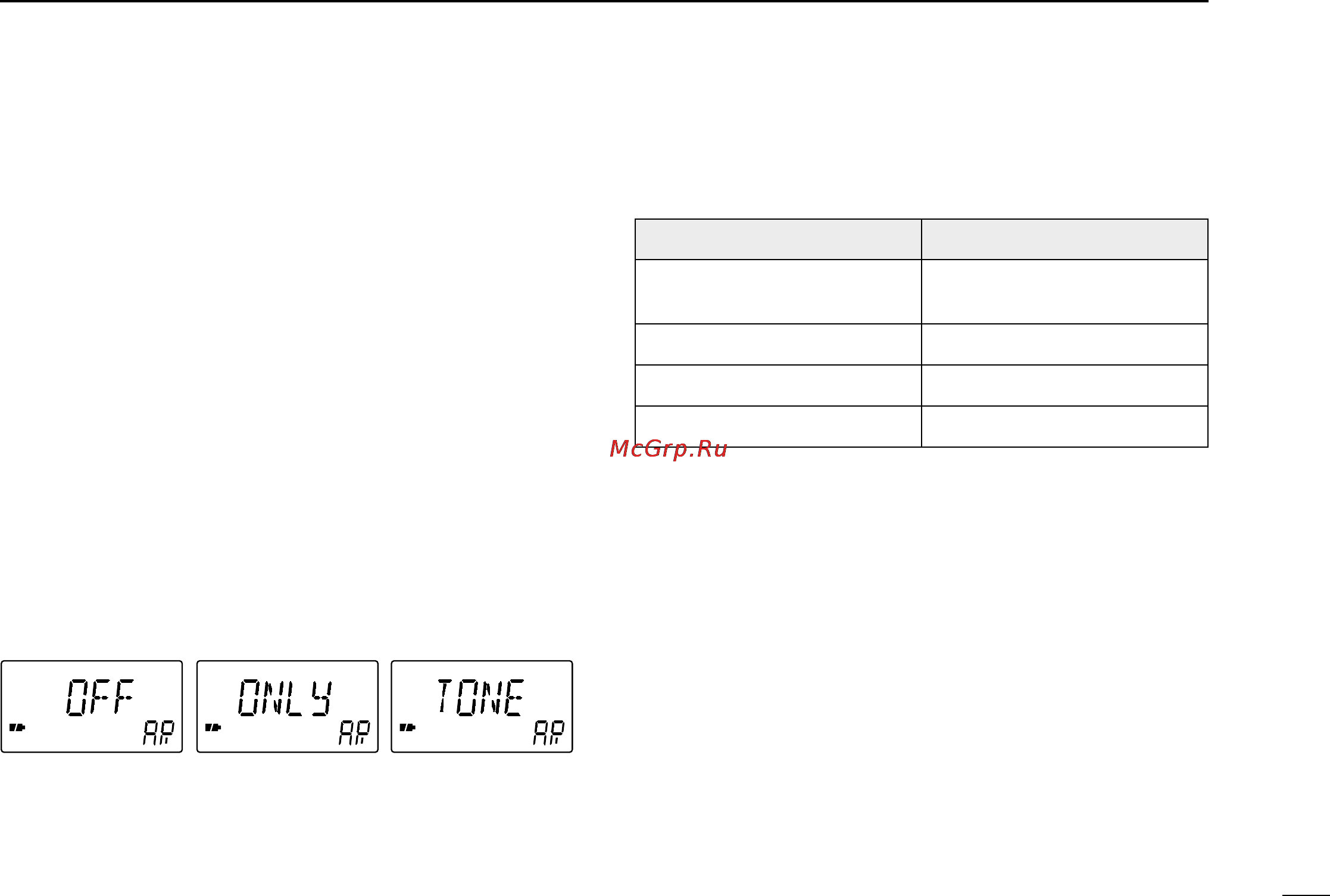

DFrequency range and offset direction
DUP DUP
Activates for duplex
only.
Activates for duplex
and tone.
Auto repeater function
is turned OFF.
FREQUENCY RANGE DUPLEX DIRECTION
145.200–145.495 MHz
146.610–146.995 MHz
“–DUP” appears
147.000–147.395 MHz “DUP” appears
442.000–444.995 MHz “DUP” appears
447.000–449.995 MHz “–DUP” appears
