24
8
REPEATER OPERATION
■ 1750 Hz tone
(Europe and Italy versions only)
Some European repeaters require a 1750 Hz tone to be ac-
cessed. For such European repeaters, perform the following.
q Set the receive frequency (repeater output frequency).
w Set the shift direction of the transmit frequency. (–DUP or
DUP; see p.22 for details.)
e While pushing [PTT], push and hold [CALL] for 1 to 2 sec.
to transmit a 1750 Hz tone burst signal.
•Pushing [PTT] 2 times quickly also transmits a 1750 Hz tone.Re-
lease [PTT] briefly, then push [PTT] again to talk in this case.
•If “OFF” appears, check the offset frequency (right section) or
shift direction (p. 22).
•The displayed frequency automatically changes to the transmit
frequency (repeater input frequency).
r Push and hold [PTT] to transmit.
t Release [PTT] to receive.
y Push and hold [SQL] to check whether the other station’s
transmit signal can be directly received or not.
■ Offset frequency
When communicating through a repeater, the transmit fre-
quency is shifted from the receive frequency by an amount
determined by the offset frequency.
q Select VFO mode or desired memory channel to be pro-
grammed.
w Push [V/M] for 2 sec. to enter expanded set mode.
e Rotate [DIAL] until “OFFSET” appears.
•Turn the expanded set mode ON for selection. (p. 28)
•“OFFSET” disappears after 1 sec. and “OW” appears.
r While pushing [FUNC], rotate [DIAL] to set the desired off-
set.
t Push [V/M] to exit set mode.

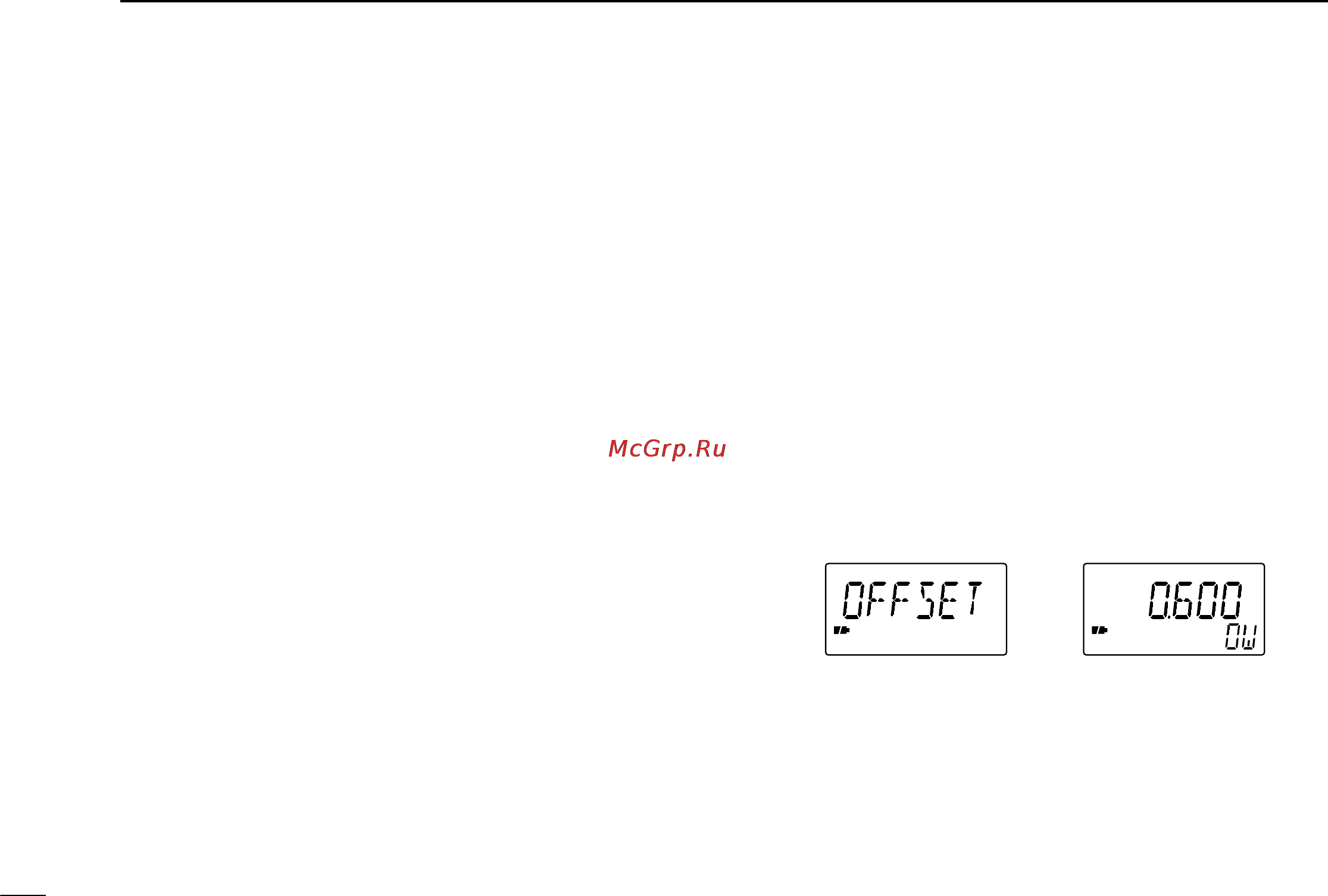

Offset frequency set mode 0.6 MHz (600 kHz) offset
