1
1

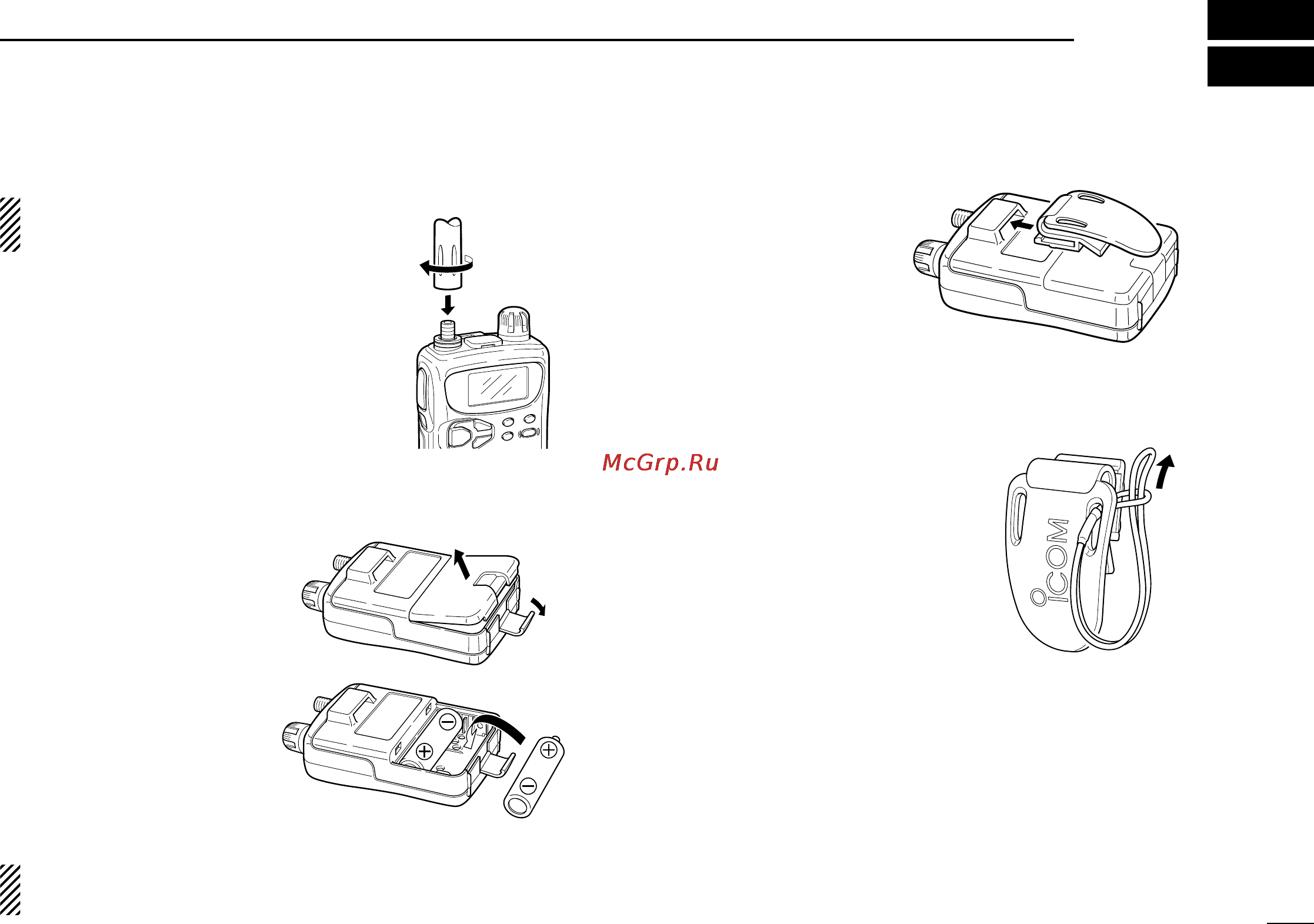

ACCESSORY ATTACHMENT
D Antenna
CAUTION:
Transmitting without an
antenna may damage the transceiver.
Insert the supplied antenna into the an-
tenna connector and screw down the an-
tenna as shown at right.
Keep the jack cover attached when jack
is not in use to avoid bad contacts from
dust and moisture.
D Battery installation
q Remove the battery
cover from the trans-
ceiver.
w Install 2 R6 (AA) size al-
kaline, dry cell or op-
tional Ni-Cd batteries.
•Be sure to observe the cor-
rect polarity.
Keep battery contacts clean. It’s a good idea to clean bat-
tery terminals once a week.
DBelt clip
Conveniently attaches to
your belt.
Slide the belt clip into the
plastic loop on the back of
the transceiver.
DHandstrap
Slide the handstrap through the loop
on the side of the belt clip as illus-
trated at right. Facilitates carrying.
