Icom IC-Q7A [35/43] I dial speed acceleration
![Icom IC-Q7A [35/43] I dial speed acceleration](/views2/1074437/page35/bg23.png)
31
10
OTHER FUNCTIONS
■ Dial speed acceleration
The dial speed acceleration automatically speeds up the tun-
ing dial speed when rotating the [DIAL] rapidly.
q Push [V/M] for 2 sec. to enter expanded set mode.
w Rotate [DIAL] until “SPEED” appears.
•Turn the expanded set mode ON for selection. (p. 28)
•“SPEED” disappears after 1 sec. and “SP” appears.
e While pushing [FUNC], rotate [DIAL] to set the dial speed
acceleration ON or OFF.
r Push [V/M] to exit set mode.
■ Lock function effect
The lock function prevents accidental frequency changes and
accidental function access.
While the lock function is ON, [POWER], [VOL], [SQL] and
[PTT] can still be accessed. Accessible switches can be set to
1 of 4 groups in expanded set mode.
q Push [V/M] for 2 sec. to enter expanded set mode.
w Rotate [DIAL] until “LOCK” appears.
•Turn the expanded set mode ON for selection. (p. 28)
•“LOCK” disappears after 1 sec. and “Lk” appears.
e While pushing [FUNC], rotate [DIAL] to select the acces-
sible switches.
•“NORMAL” :[POWER], [VOL], [SQL] and [PTT] are accessible.
•“NO SQL” :[POWER], [SQL] and [PTT] are accessible.
•“NO VOL” :[POWER], [VOL] and [PTT] are accessible.
•“ALL” :[POWER] and [PTT] are accessible.
r Push [V/M] to exit set mode.

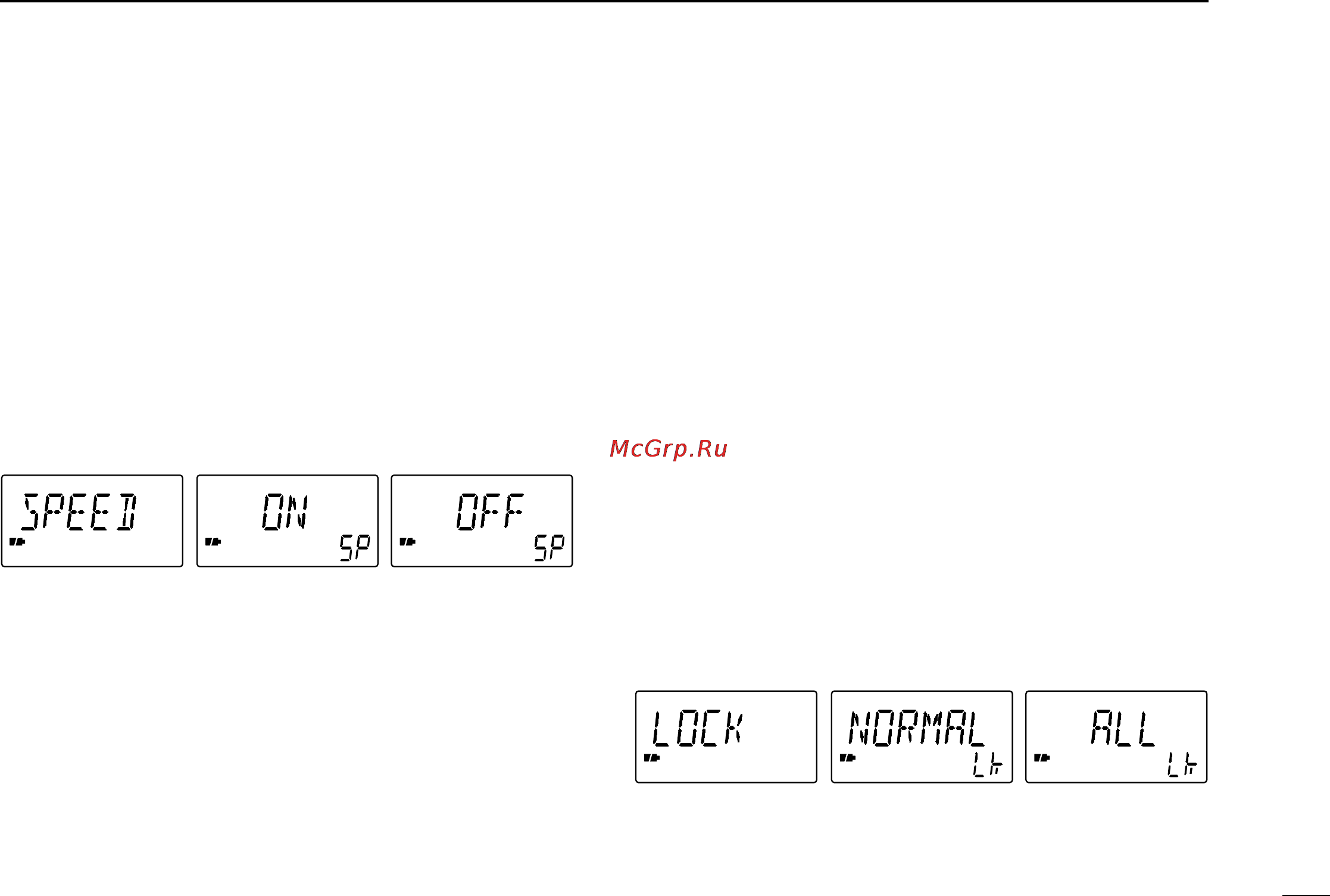

Dial speed acceleration
set mode
Dial speed
acceleration ON
Dial speed
acceleration OFF
Lock function effect
set mode
[POWER], [VOL],
[SQL] and [PTT] are
accessible.
[POWER] and [PTT]
are accessible.
