28
10
OTHER FUNCTIONS
■ Set mode
Set mode is used for programming infrequently changed val-
ues or conditions of functions.
In addition, this transceiver has an expanded set mode which
is used for programming more infrequently changed values or
conditions of functions.When turning OFF the expanded set
mode, only half of the set mode items are displayed for sim-
pler operation.
D Expanded set mode ON/OFF
q Push [V/M] for 2 sec. to enter set mode.
w Rotate [DIAL] until “EXPAND” appears.
•“EXPAND” disappears after 1 sec. and “EX” appears.
e While pushing [FUNC], rotate [DIAL] to turn the expanded
set mode ON or OFF.
r Push [V/M] to exit set mode or rotate [DIAL] to select a set
mode item.

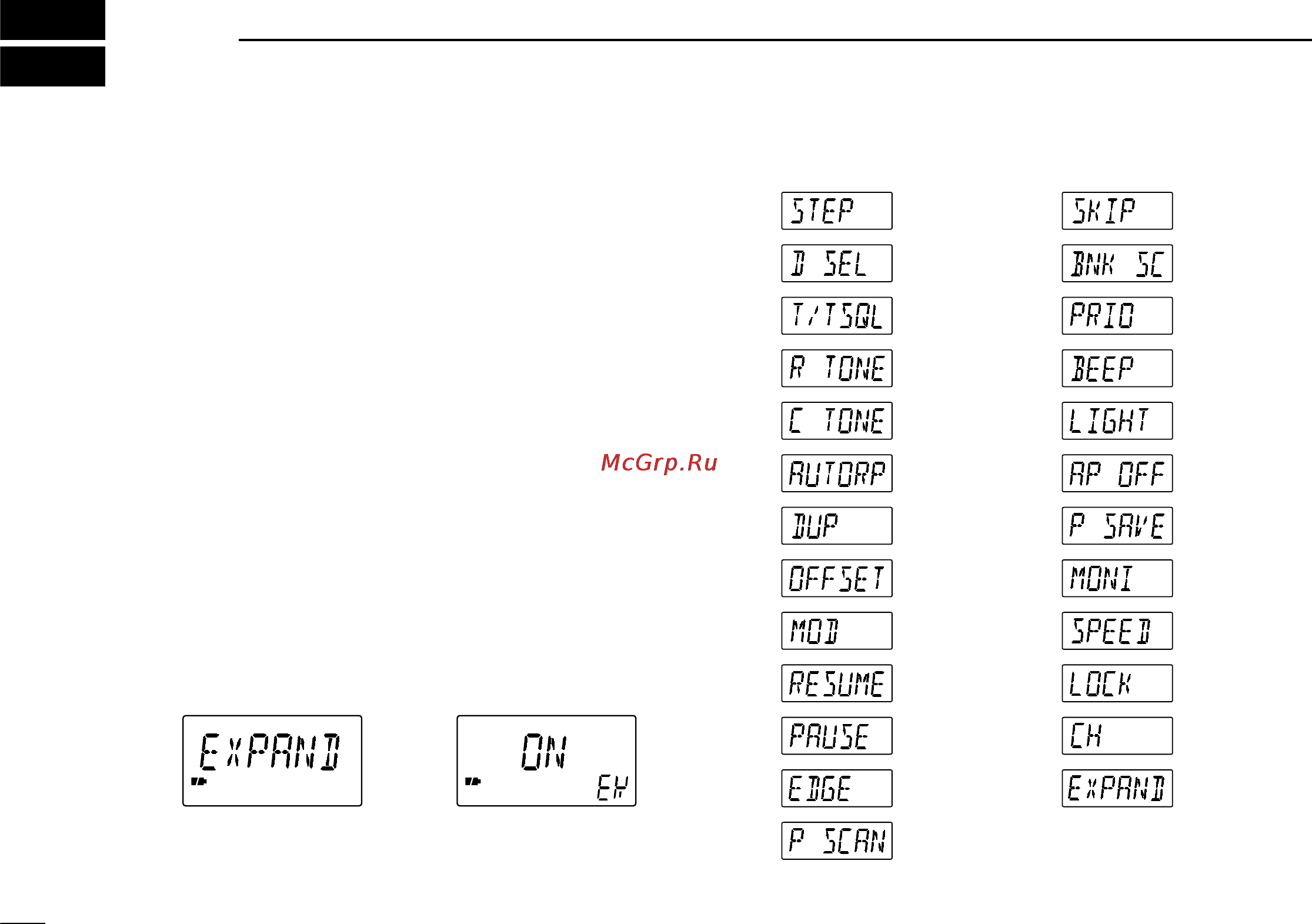

DSet mode items
E: Appears when expanded set mode is ON.
v:VFO mode only. M: Memory mode only.
Tuning step
(p. 7)
Dial select step
(p. 29)
Tone function
(pgs. 23, 26)
Repeater tone
(p. 23)
CTCSS tone
(p. 26)
Auto repeater*
(p. 25)
* U.S.A. version only
Duplex direction
(p. 22)
Offset frequency
(p. 24)
Receive mode
(p. 11)
Scan resume
time (p. 18)
Scan pause
time (p. 18)
Scan edge
(p. 17)
Frequency skip
function (p. 19)
Skip channel
(p. 18)
Memory bank
(p. 16)
Priority watch
(p. 21)
Confirmation
beep (p. 29)
Backlighting
(p. 11)
Auto power OFF
(p. 30)
Power save
(p. 29)
Monitor switch
function (p. 30)
Dial speed
(p. 31)
Lock function
effect (p. 31)
Channel indication
mode (p. 32)
v
v
v
v
M
M
E
E
E
E
E
E
E
E
E
E
E
E
E
M
Expanded set
mode (p. 28)
Expanded set mode setting Expanded set mode ON
