■ Setting a frequency
q Select VFO mode with [V/M].
w Select the desired band with [BAND].
e Rotate [DIAL] to change the frequency.
•The frequency changes according to the preset tuning steps.See
the right section for selecting the tuning step.
•Rotate [DIAL] while pushing [FUNC] to change the frequency in 1
MHz steps (default; p. 29).
The 1 MHz tuning step (dial select step) can be set to 100
kHz, 1 MHz or 10 MHz tuning steps in set mode. See p. 29
for details.
■ Setting a tuning step
Tuning steps can be selected for each band.This transceiver
has 10 tuning steps as follows:
•5 kHz •6.25 kHz •10 kHz •12.5 kHz •15 kHz
•20 kHz •25 kHz •30 kHz •50 kHz •100 kHz
DUsing the band switch
q Select VFO mode with [V/M].
w Select the desired band with [BAND].
e Push [BAND] for 2 sec. to enter tuning step setting condi-
tion.
r Rotate [DIAL] to select the desired
tuning step.
t Push [BAND] to return to normal
operation.
DUsing set mode
q Select VFO mode with [V/M].
w Select the desired band with [BAND].
e Push [V/M] for 2 sec. to enter set mode.
r Rotate [DIAL] until “STEP” appears.
•“STEP” disappears after 1 sec. and the previously selected tun-
ing step and “tS” appear.
t While pushing [FUNC], rotate [DIAL] to select the desired
tuning step.
y Push [V/M] to exit set mode.
7
3
FREQUENCY AND CHANNEL SETTING
15 kHz tuning step
FM
7
5
5
0
2
5
7
5
5
0
2
5
FM
7
5
5
0
2
5
7
5
5
0
2
5

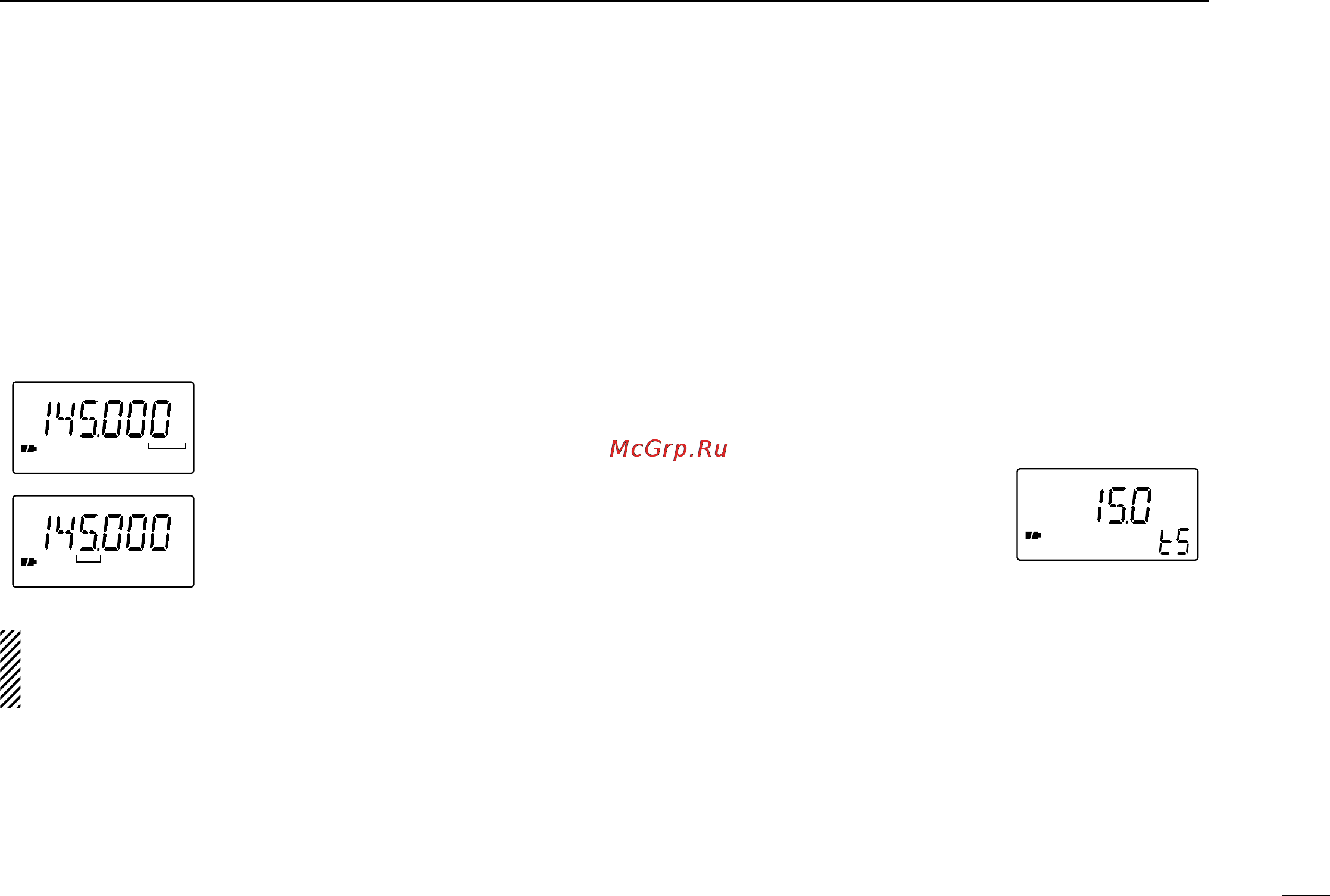

[DIAL] changes the frequency according
to the selected tuning step.
While pushing [FUNC], [DIAL] changes
the frequency in 1 MHz steps (default).
