Ensure that the diamond cutting blades are
installed in accordance with the manufacturer's
instructions.
Prior to use, ensure that the diamond cutting
blades are properly fitted and secured. Run the
machine in idling for 60 seconds in a safe position
and bring to a standstill immediately if there are
significant vibrations or if other deficiencies are
determined. If such a situation occurs, check the
machine to determine the cause.
Never switch on the machine without the
protective cover installed.
The material being processed must be firmly
secured.
Ensure that sparks produced during work do not
constitute a risk to the user or other personnel and
are not able to ignite inflammable substances.
Endangered areas must be protected with flame-
resistant covers. Make sure that fire-risk areas are
always provided with suitable fire extinguishers.
When working in dusty conditions, ensure that
ventilation openings are not blocked. If it becomes
necessary to remove dust, first disconnect the
power tool from the mains supply (use non-
metallic objects) and avoid damaging internal
components.
The diamond cutting blades continue running after
the machine has been switched off.
5 Initial operation
Before plugging in check to see that the
rated mains voltage and power
frequency, as stated on the rating label,
match with your power supply.
6 Power supply
This wall chaser is equipped with an electronic
starting-current limitation. It can therefore be
oprated on circuits protected by a miniature circuit
breaker of type H characteristics or a fast acting
fuse.
7 Chase width
See page 2.
– unplug,
– remove the hex. socket head cap screw (3),
– loosen the hex. socket head cap screw (7) and
– set the guard (9) and guide shoe (10) – approx.
as shown on page 2 – so that the diamond
cutting blades are reradily accessible; then
– press the spindle-lock button (12) and
– slowly turn the front diamond cutting blade
(with the other hand) until the spindle-lock
button engages.
– Hold the spindle-lock button down and
remove the clamping nut (11) with the pin
spanner supplied.
Caution! Never press the spindle-lock
button (12) while the machine is running
(and when it is drifting to a stop)!

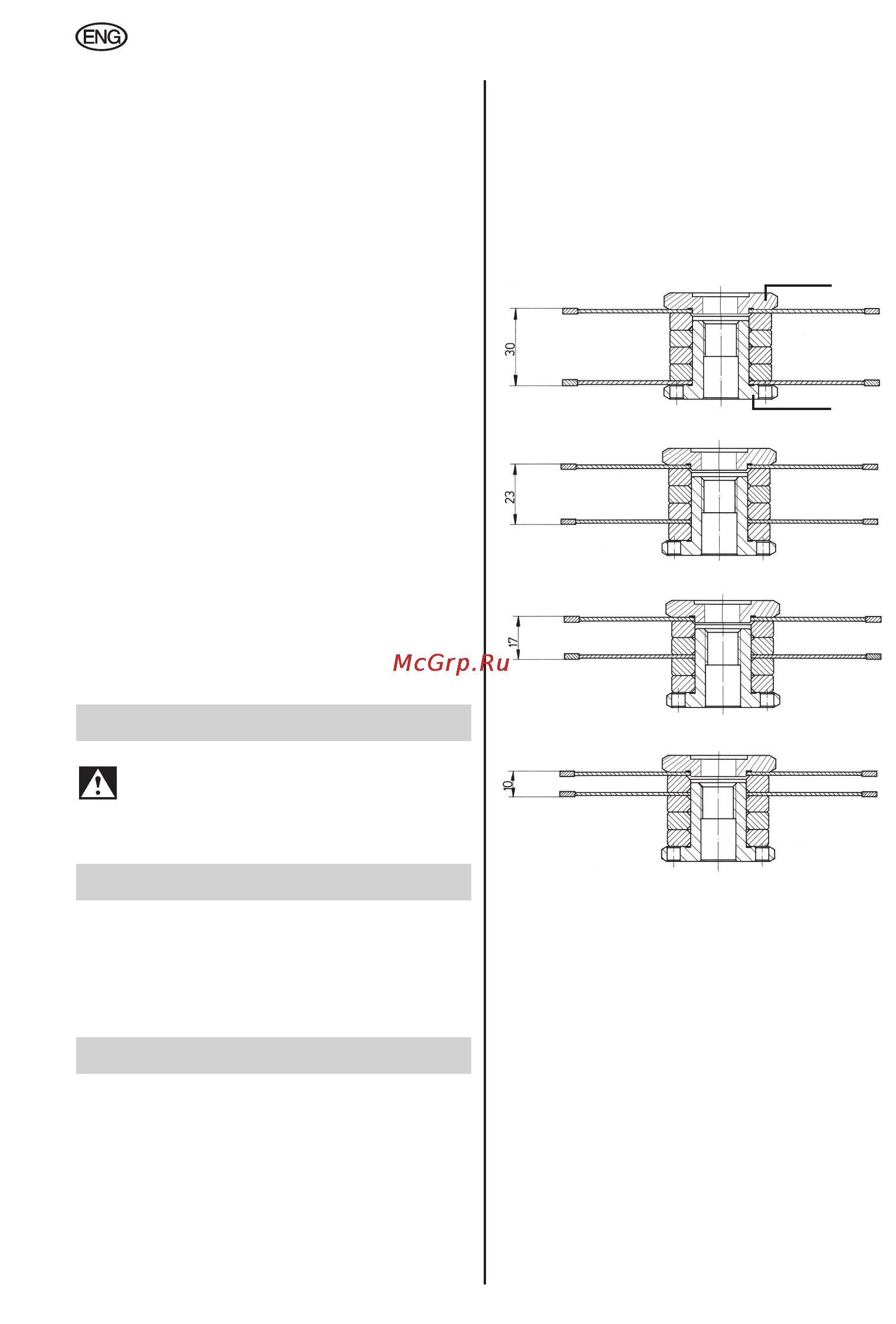

Figure 1 a
Figure 1 b
Figure 1 c
Figure 1 d
The support flange (15) must always be
placed with the
flange outwards
(as illustrated in
figures 1a – 1d) onto the spindle. Make sure the
support flange does not turn on the spindle.
Arrangement of spacer rings (16) and diamond
cutting blades (for required chase width) as
illustrated in figures 1a – 1d.The direction of
rotation of the diamond cutting blades is indicated
by arrows on both the blades and guard (9).
Lock the spindle by pressing the spindle-lock
button (12), then tighten the clamping nut (11) with
the pin spanner.
Then
– swing guard (9) and guide shoe (10) back,
– turn hex. socket head cap screw (3) back in and
– tighten the hex. socket head cap screw (7)
16
ENGLISH
15
}
16
11
