SiBE27-702 Field Settings
Test Operation 117
2.12 I-Demand Function
Purpose Set a limitation towards the power consumption from the system.(e.g. budget control, limit
power consumption during peak moments,..)

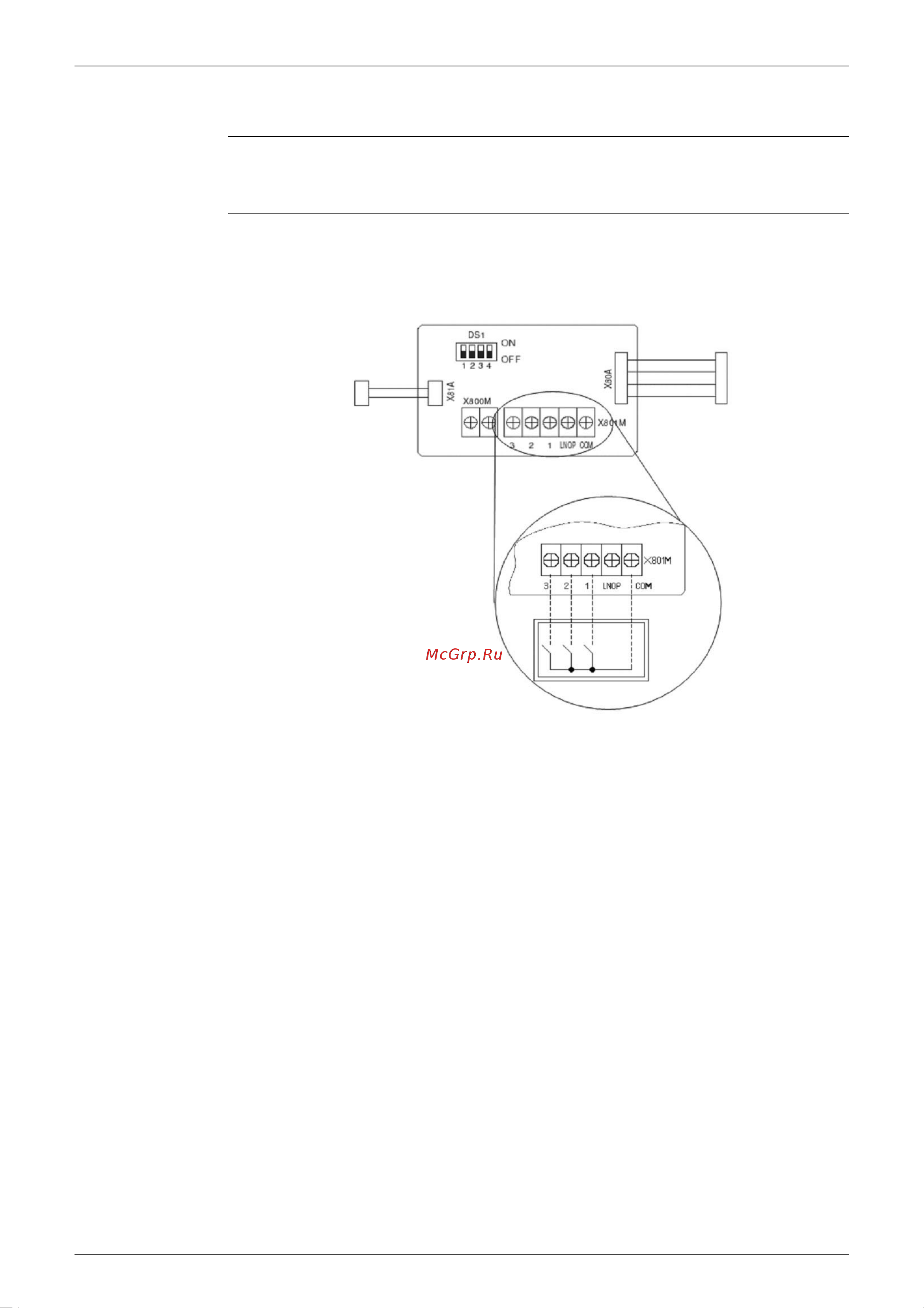

Setting 3 different demand setting can be selected by using terminal X801M:
Demand 1
→
Close contact between COM and contact 1
Demand 2
→
Close contact between COM and contact 2
Demand 3
→
Close contact between COM and contact 3
Power supply connector
(on outdoor PCB X77A)
Output on X801M =
12VDC, 12mA
Maximum wire length =
100 meter
Transmission connector
(on outdoor PCB X6A)
