SiBE27-702 RZQ71B9, RZQS71·100B7V3B / RZQ100~140B8W1B
Removal Procedure 299

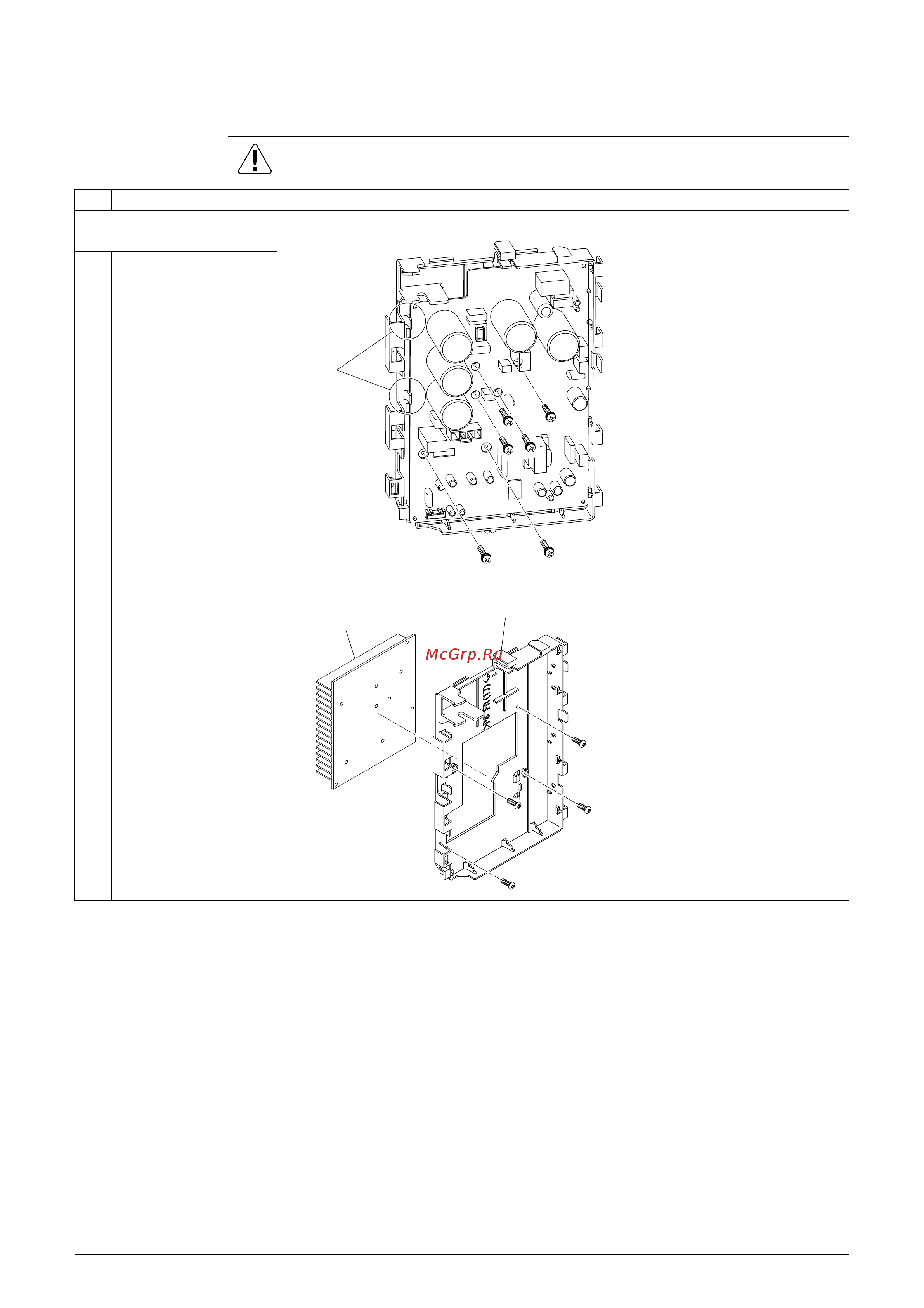

1.6 Removal of PC Board Assy (3)
Procedure Warning Be sure to commence the disassembling work after 10 minutes or
more elapsed from all power supplies have been turned off.
Step
Procedure Points
3. Remove the PC board
unit (for inverter).
Only on RZQ71B9, RZQS71·100B7V3B
1
Unscrew the four
screws that fix the PC
board and the heat
sink.
2
Disengage the two
hooks, and then while
peeling off silicon,
remove the PC board
(for inverter).
3
Disengage the four
mounting screws to
remove the heat sink.
Hooks
PC board mounting plate
Heat sink
