Daikin RZQ100B8W1B [306/344] Removal of propeller fan and fan motor
![Daikin RZQ100B8W1B [306/344] Removal of propeller fan and fan motor](/views2/1769683/page306/bg132.png)
SiBE27-702 RZQ71B9, RZQS71·100B7V3B / RZQ100~140B8W1B
Removal Procedure 293

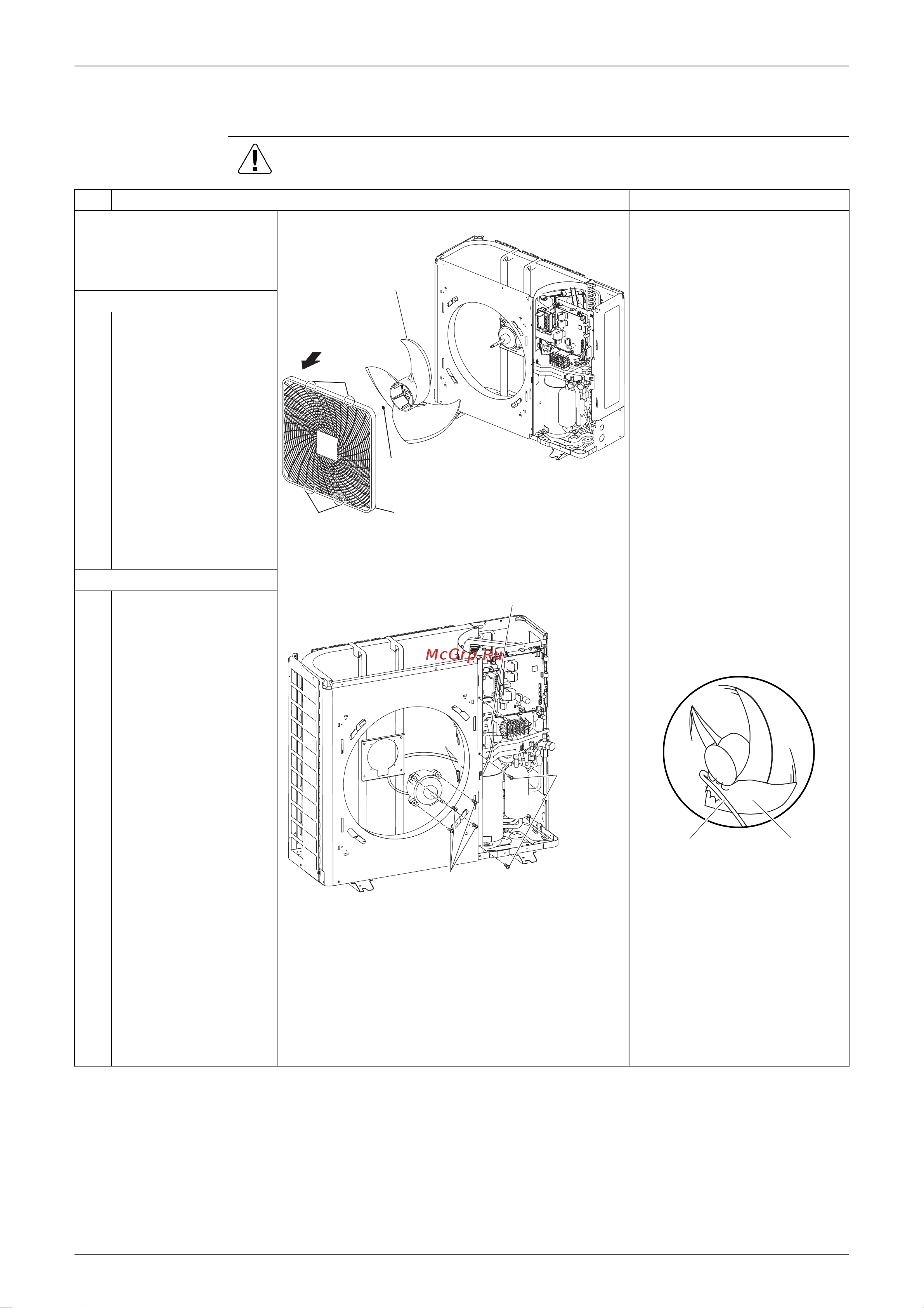

1.2 Removal of Propeller Fan and Fan Motor
Procedure Warning Be sure to commence the disassembling work after 10 minutes or
more elapsed from all power supplies have been turned off.
Step
Procedure Points
Remove the front and top
panels in accordance with
the Removal Procedure
for Outside Panels.
1. Remove the propeller fan
1
Unscrew the four
screws that fix the air
discharge grille and
disengage the four
hooks at the top and
bottom of the grille, and
then remove this air
discharge grille.
2
Unfasten the fan lock
nut that fixes the
propeller fan.
2. Remove the fan motor
In order to disconnect the
connector, do not pull the
lead wire. Hold the
connector part and then
push the hooks.
Cautions in mounting the
motor
Be sure to fix the motor lead
wire with a clamp. Not
heeding this caution will
cause the entanglement of
the lead wire around the fan,
which will result in damage
to the fan.
1
Remove the connector
for the fan motor from
the PC board.
One phase models:
X206A
Three phase models:
X206A, X207A
2
The lead wire is
clamped in three
places. (Click on
partition plate×3 places)
3
Unscrew the three
screws that fix the front
panel and then pull up
the lead wire.
4
Unfastening the four
lock bolts from the fan
motor enables the
removal of this fan
motor.
Air discharge grille
Fan lock nut
Propeller fan
Hooks
Hooks
Bolts (four numbers)
Connector for fan motor
Screws
(three
numbers)
Clamp
Lead wire Propeller fan
