![Daikin RZQ100B8W1B [134/344] Graph 1 target evaporating temperature control in case of factory setting 16 26 2 01](/img/pdf.png)
Daikin RZQ100B8W1B [134/344] Graph 1 target evaporating temperature control in case of factory setting 16 26 2 01
![Daikin RZQ100B8W1B [134/344] Graph 1 target evaporating temperature control in case of factory setting 16 26 2 01](/views2/1769683/page134/bg86.png)
SiBE27-702 Field Settings
Test Operation 121

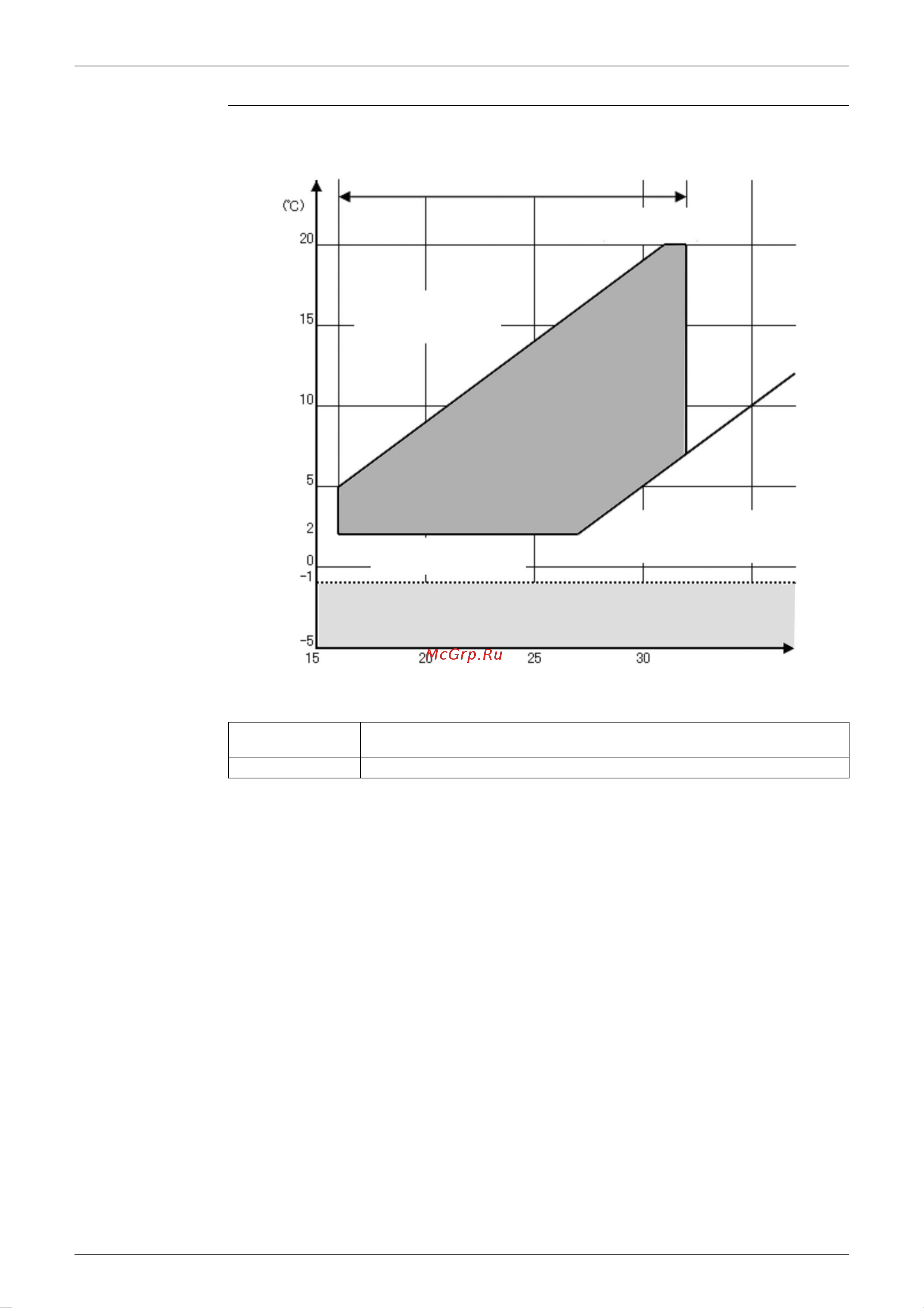

Graph 1 Target evaporating temperature control in case of factory setting 16(26)-2-01:
Note:
Remote controller setting temp.
Te target limitted ≤ 20˚C
(to protect the comp.)
Te target limitted
≤ Indoor temp. – 11˚
(not to rising wetbulb)
Te (see note) target
acceptable area
Indoor temp. > setting
→ Te target down
Indoor temp. < setting
→ Te target up
Te target limitted ≥ 2˚C
(not to freeze)
Te target limitted
≥ Indoor temp. – 25˚
(not to sweat)
Freeze protection
(40min. integrated coil temp. ≤ -1˚C)
Indoor Temp
(˚C DB)
Te target acceptable area
Te by LP sensor RZQ71B9V3B, RZQ71·100B7V3B, RZQ100~140C7V1B,
RZQS125·140C7V1B
Te by calculation RZQ100~140B8W1B
