Troubleshooting by Remote Controller Display / LED Display SiBE27-702
194 Troubleshooting

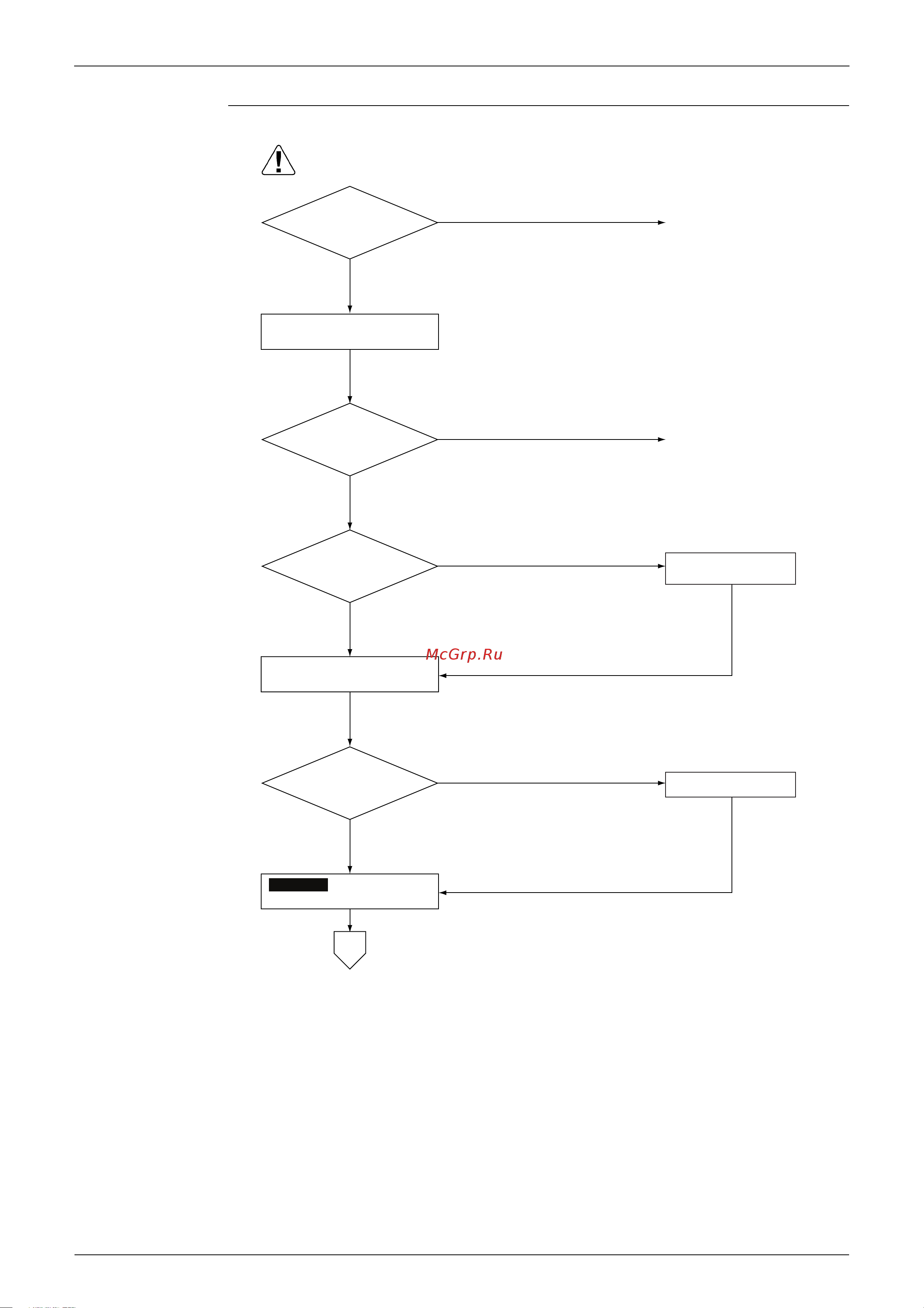

Troubleshooting
Is the supply
voltage within the range 180 to
220 VAC ?
NO
YES
Ask repair so that the
supply voltage will be
within the normal range.
Turn OFF the power again
(and wait for 10 minutes).
Remove the fan motor
connector.
Is the fan
motor connector correctly
connected to the outdoor PC
board?
NO
YES
Properly connect the
connector.
Is there
any foreign matter around
the fan?
NO
YES
Remove the foreign
matter.
check the resistance
value for the fan motor. (P246)
Is the fan
rotatable easily by hand?
NO
YES
Replace the fan motor.
Check 9
A
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
