ASUS ESC4000 G4 Series

4-19

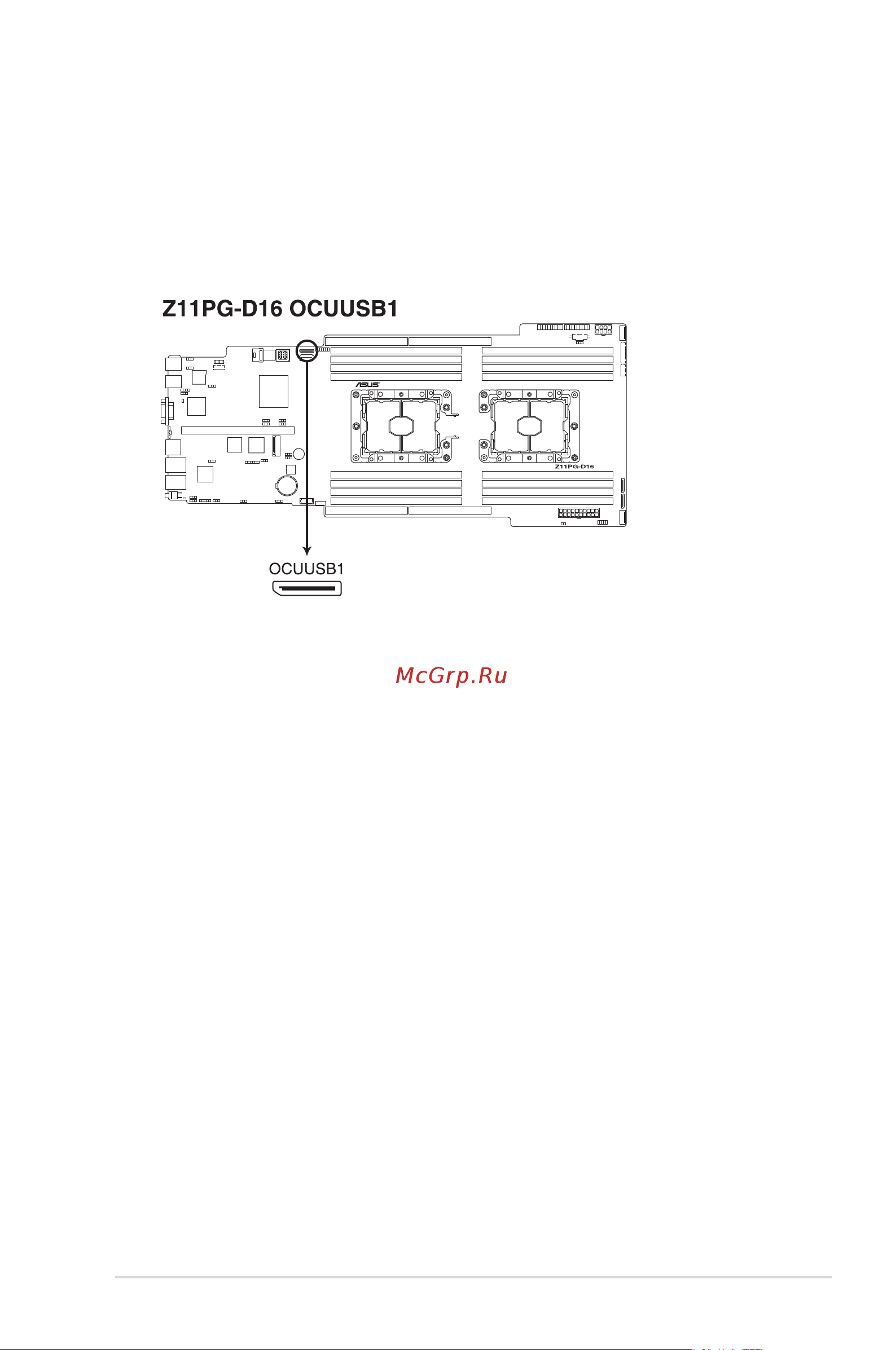

15. USB 3.0 connectors (OCUUSB1)

Connect a compatible USB module cable to the OCUUSB1 connector, and then install

the module to a slot opening at the back or front of the system chassis. You can enjoy

all the benets of USB 3.0 including faster data transfer speeds of up to 5 Gbps, faster

charging time for USB-chargeable devices, optimized power efciency, and backward

compatibility with USB 2.0. (OCUUSB1 connector is used for the front USB panel by

default).
