Chapter 2: Hardware Setup
2-52

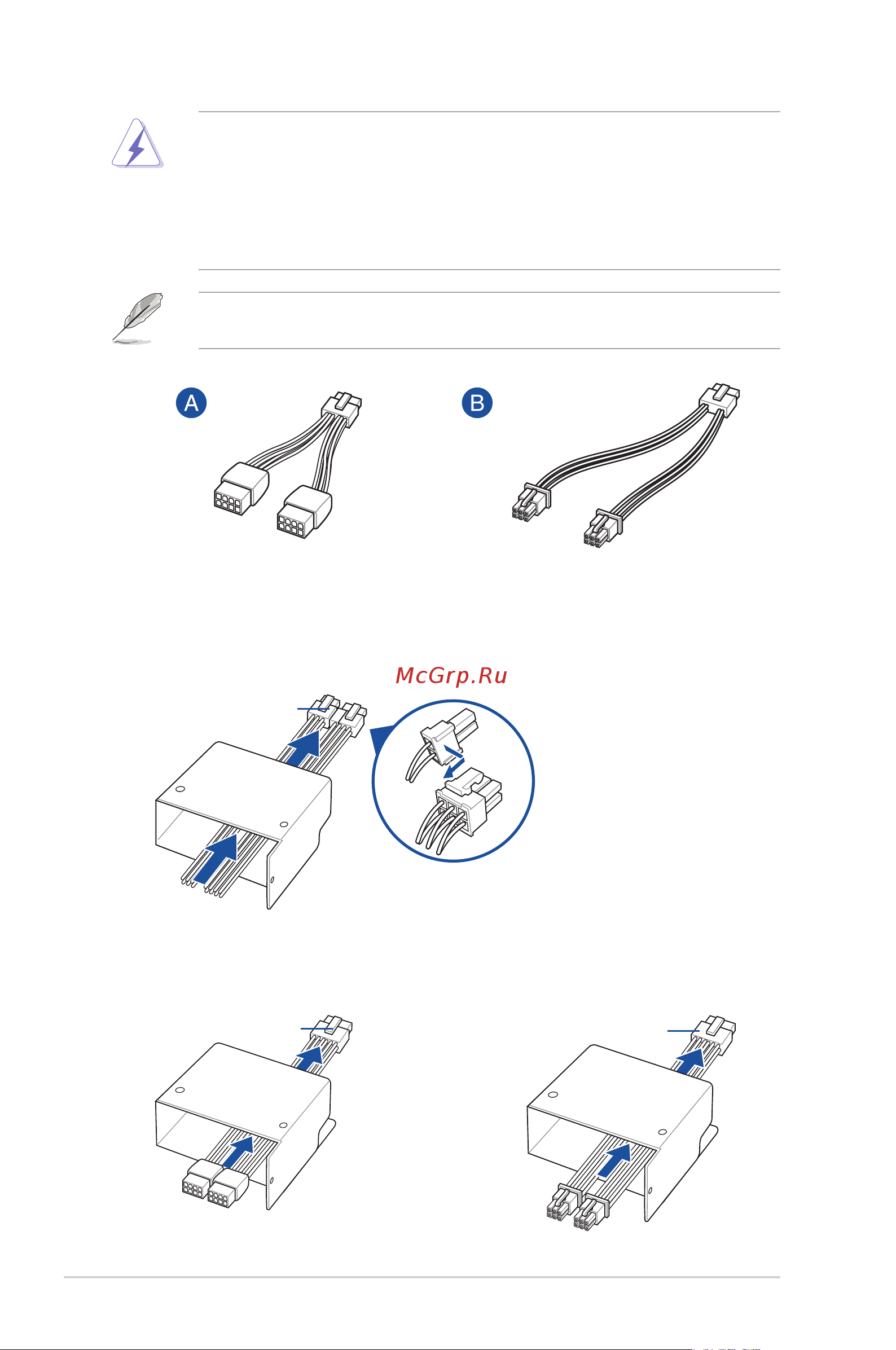

5. Pass the power cable through the air duct as shown.
For Nvidia CPU-12V or above GPU cards:
A. A dongle may be required to connect the system's GPU power cable to the GPU
card. The Nvidia CPU-12V GPU card will not work, or may even cause damage to the
system, if the dongle is not used.
B. The ASUS CPU 8-pin power cable may be used to connect to the GPU card and 6-pin
power connector.
The dongle comes with your Nvidia CPU-12V GPU card. Ask your vendor or retailer if the
dongle is missing.
Nvidia CPU-12V GPU card dongle
ASUS CPU 8-pin power cable
ASUS CPU 8-pin power cable
For Nvidia CPU-12V GPU card installation
OR
dongle
GPU power cable
For Intel/AMD/Nvidia GPU card installation
