2-21
ASUS ESC4000 G4 Series
ESC4000 G4S
1
2

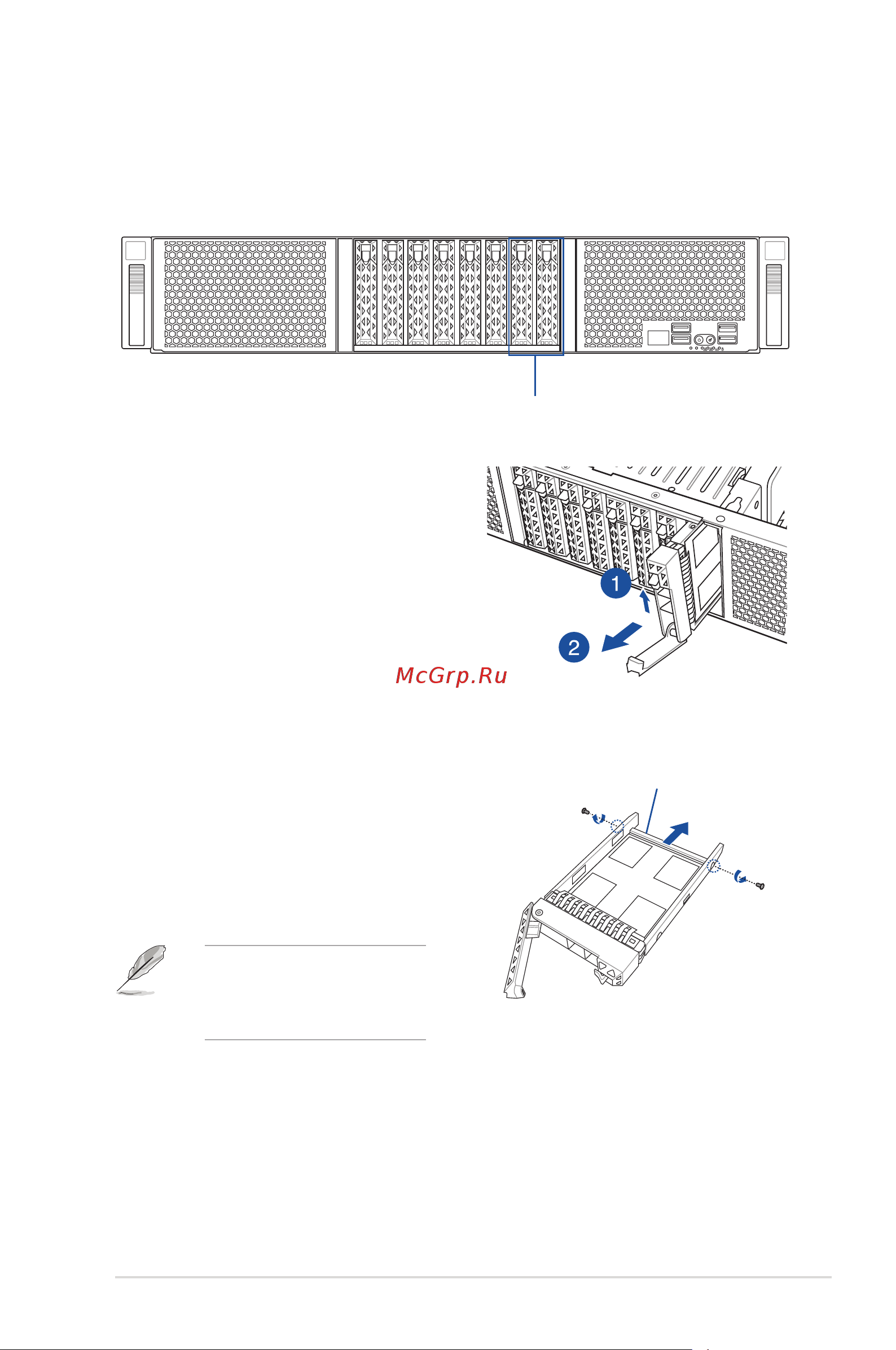

Storage device bay 7 and 8
For the ESC4000 G4S, the NVME storage devices may be installed in storage device bay 7
and 8 as shown in the illustration below:
1
2
1
2
1
2
1
2
1. Press the spring lock.
2. Pull the tray lever outwards to remove
the drive tray.
3. Place the storage device tray on a at
and stable surface.
4. Release the screws on each side of the
storage device tray to release the metal
beam.
The metal beam supports the
storage device tray horizontally
to prevent the storage device tray
from bending or deforming.
Metal beam
