Chapter 2: Hardware Setup

2-22

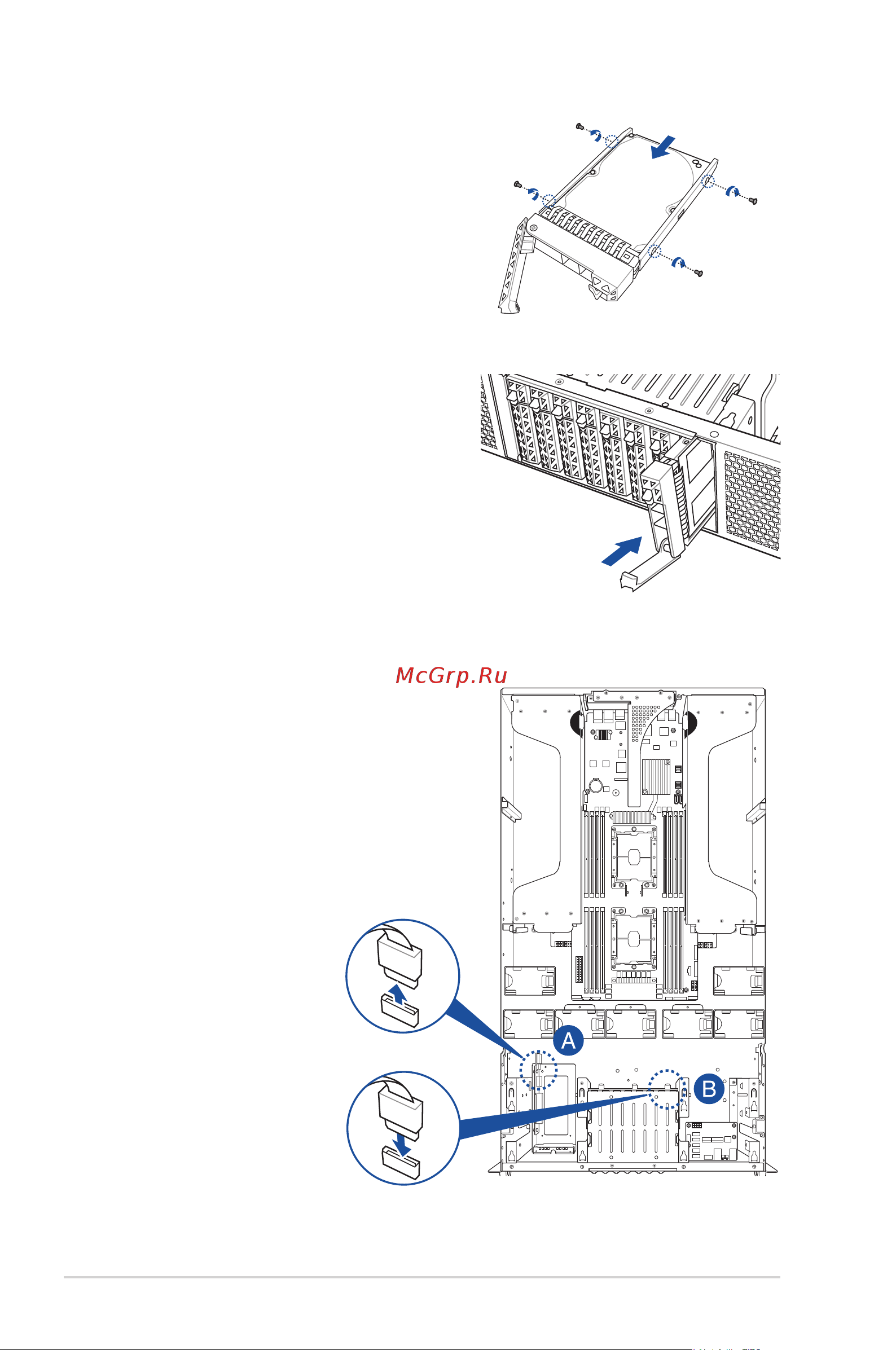

5. Place the SATA/SAS storage

device into the storage device tray

then secure it with four screws.

6. Insert the storage device tray and

storage device assembly all the

way into the depth of the bay until

just a small fraction of the tray

edge protrudes.

7. Push the tray lever until it clicks

and secures the storage device

tray in place.

8. Repeat steps 1 to 7 to install the

other storage devices.

9. Remove the two default OCuLink

cables (A) and connect it to the

backplane (B).
