Asus ESC4000 G4 [58/202] Remove the three 3 cables on the cache vault power module clip holder a then release the two 2 screws on the cache vault power module clip holder b
![Asus ESC4000 G4 [58/202] Remove the three 3 cables on the cache vault power module clip holder a then release the two 2 screws on the cache vault power module clip holder b](/views2/1771514/page58/bg3a.png)
Chapter 2: Hardware Setup
2-30

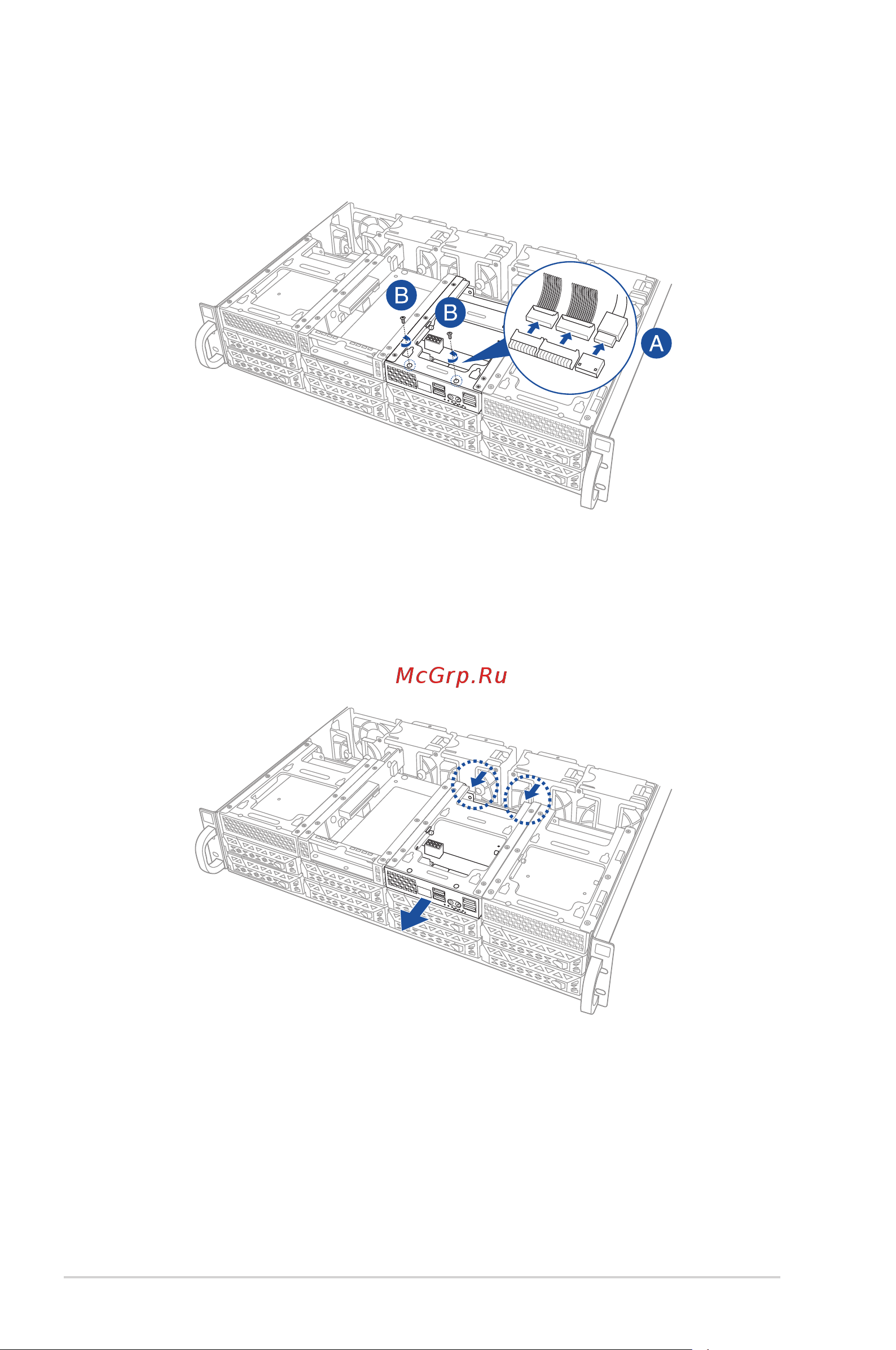

15. From the back of the Cache Vault Power Module clip holder, push the Cache Vault
Power Module clip holder out of the server system.
14. Remove the three (3) cables on the Cache Vault Power Module clip holder (A), then
release the two (2) screws on the Cache Vault Power Module clip holder (B).
1
2
1
2
1
2
1
2
1
2
1
2
