Chapter 2: Hardware Setup
2-20
ESC4000 G4X
1. Remove the storage device cage.
Refer to section ESC4000 G4X under 2.4.1 Installing the 3.5-inch SATA/SAS storage
device for the steps on removing the storage device cage.
2. Prepare the SATA/SAS/NVME storage
device and the bundled set of screws.

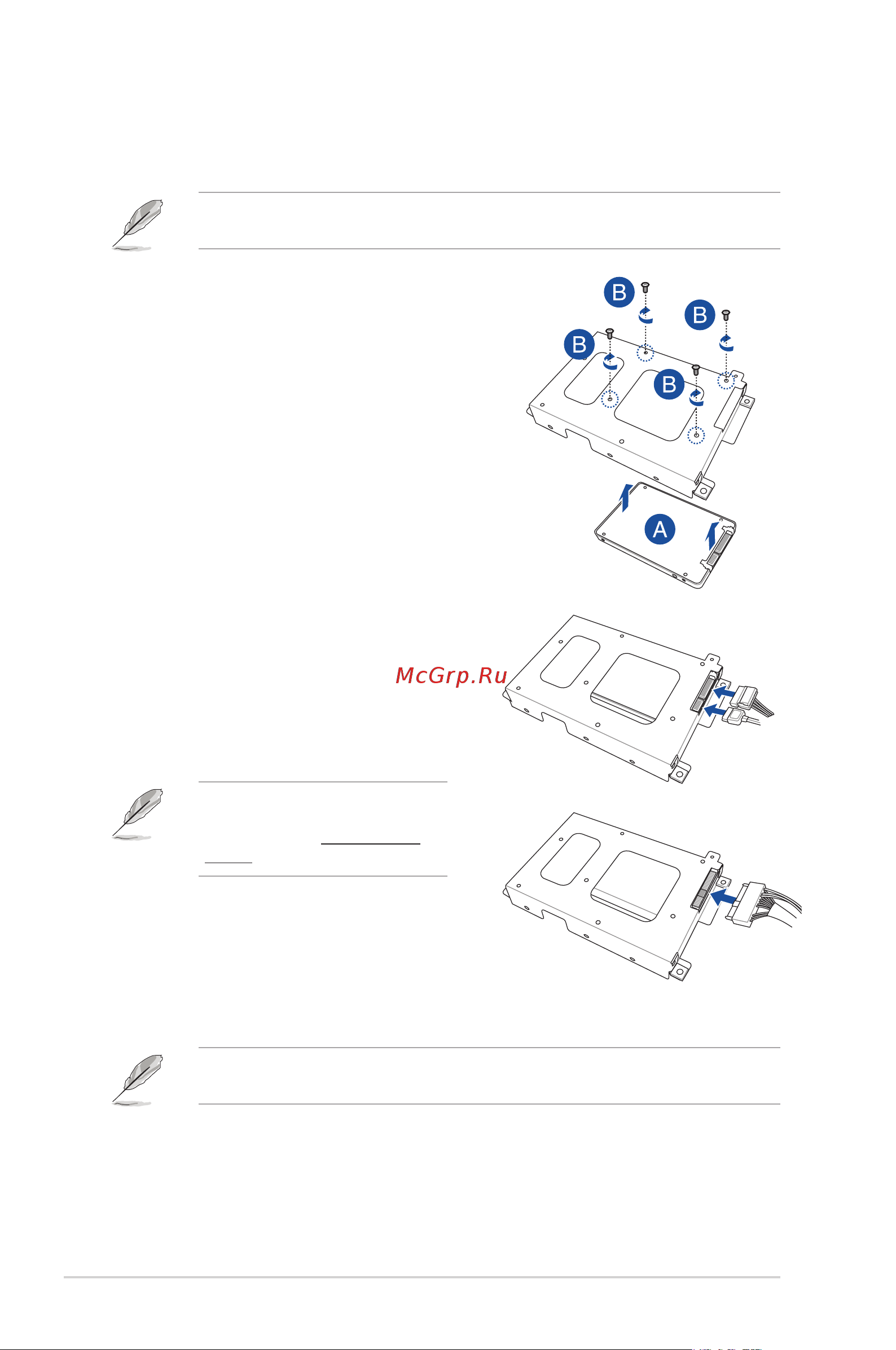

3. Place the SATA/SAS/NVME storage
device into the storage device cage (A),
then secure it using four (4) screws (B).
4. Connect the SATA and power cable to
your SATA/SAS/NVME storage device.
OR
(optional) Connect the NVME cable to
your NVME device.
(optional)
OR
The NVME cable is optional, for more
information about the optional NVME
cable, please visit www.asus.com/
support.
6. Repeat steps 1 to 6 to install the other SATA/SAS/NVME storage device.
5. Replace the storage device cage.
Refer to section ESC4000 G4X under 2.4.1 Installing the 3.5-inch SATA/SAS storage
device for the steps on replacing the storage device cage.
