5-17
ASUS ESC4000 G4 Series
OnboardI350LANConguration

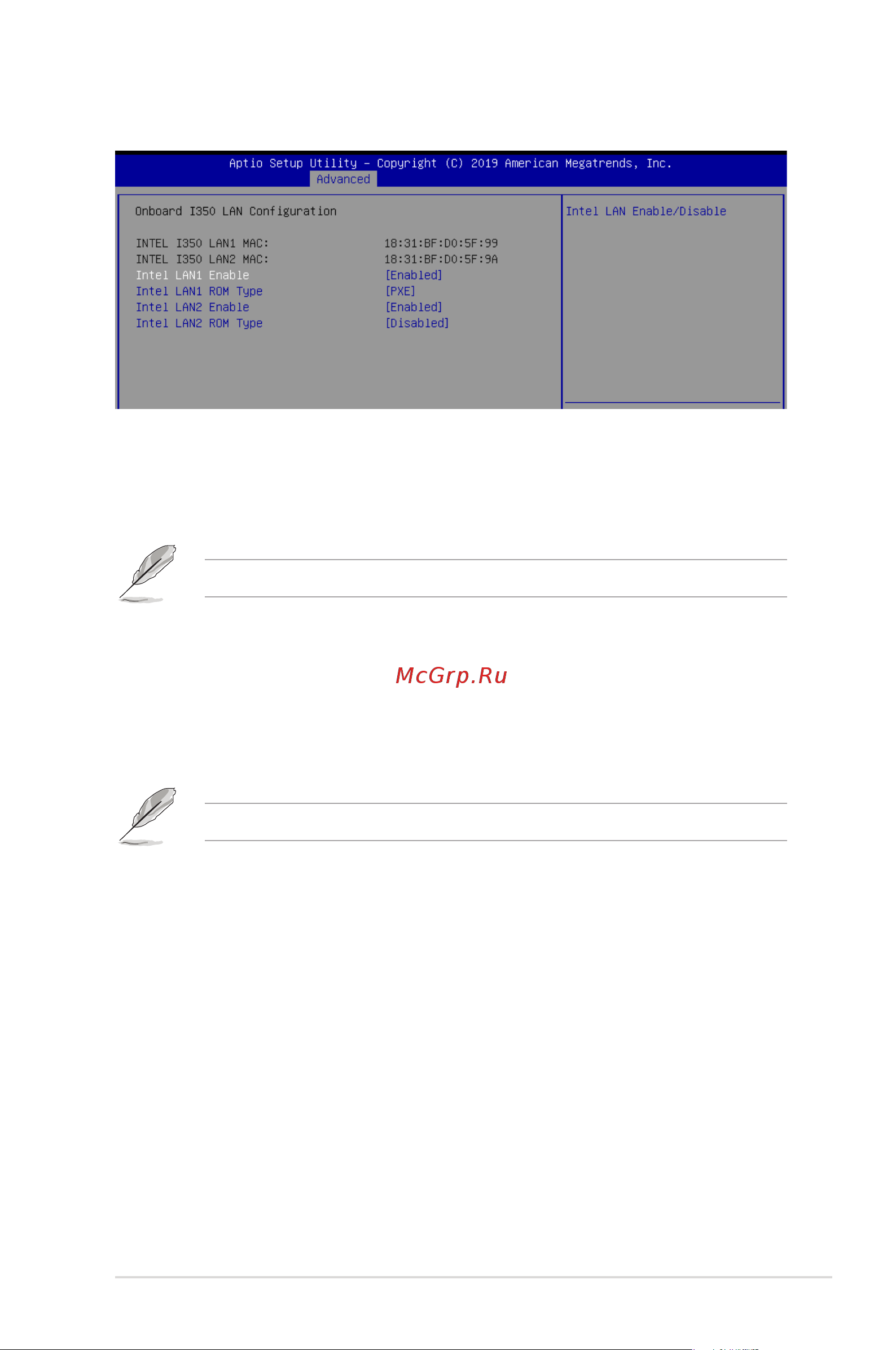

Intel LAN1 Enable [Enabled]
Allows you to enable or disable the Intel LAN.
Congurationoptions:[Disabled][Enabled]
The following items appear only when Intel LAN1 Enable is set to [Enabled].
Intel LAN 1 ROM Type [PXE]
Allows you to select the Intel LAN ROM type.
Congurationoptions:[PXE][iSCSI][Disabled]
Intel LAN2 Enable [Enabled]
Allows you to enable or disable the Intel LAN.
Congurationoptions:[Disabled][Enabled]
The following items appear only when Intel LAN2 Enable is set to [Enabled].
Intel LAN 2 ROM Type [Disabled]
Allows you to select the Intel LAN ROM type.
Congurationoptions:[PXE][iSCSI][Disabled]
5.5.6 OnboardLANConguration
