Chapter 2: Hardware Setup
2-48

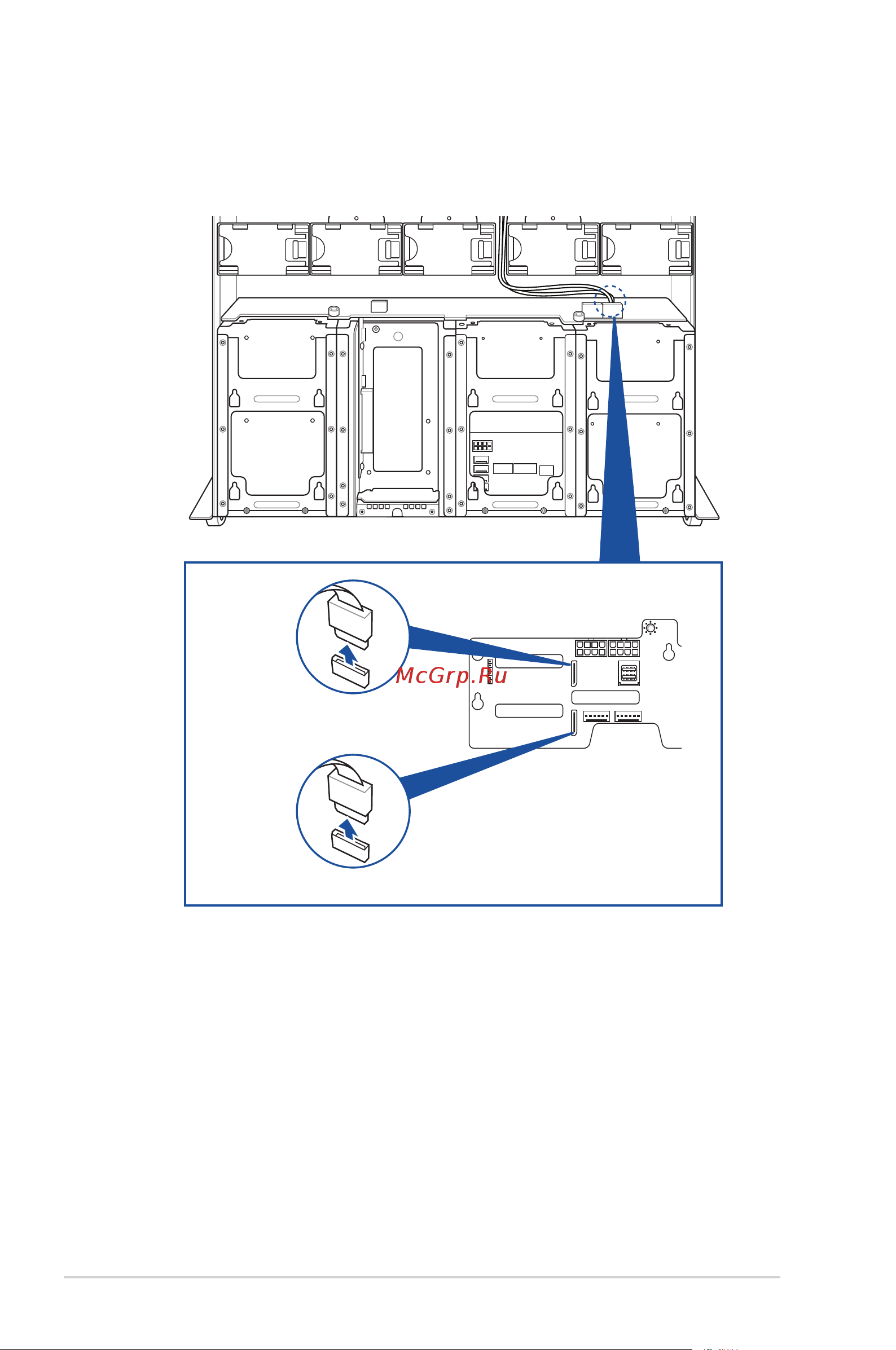

3. Connect the OCuLink cables to the corresponding slots located on the backplane.
Ensure to connect OCuLink cable 1 to the OCUPCIE8 connector, and OCuLink cable 2
to the OCUPCIE7 connector.
®
BP6LX2LE12G-35-R23A
SMBUS1
FRNT_FAN1
FRNT_FAN2
FRNT_FAN3
FRNT_FAN4
FRNT_FAN5
PWR1
BPSMB1
OCUPCIE7
OCUPCIE8
PWR2
MB_RST1
MSAS_HD1
MSAS_HD2
CON1
Connect OCuLink cable 1 to OCUPCIE8
Connect OCuLink cable 2 to OCUPCIE7
