Chapter 1: Product Introduction
1-8
1
2
1
2
1.4 Front panel features

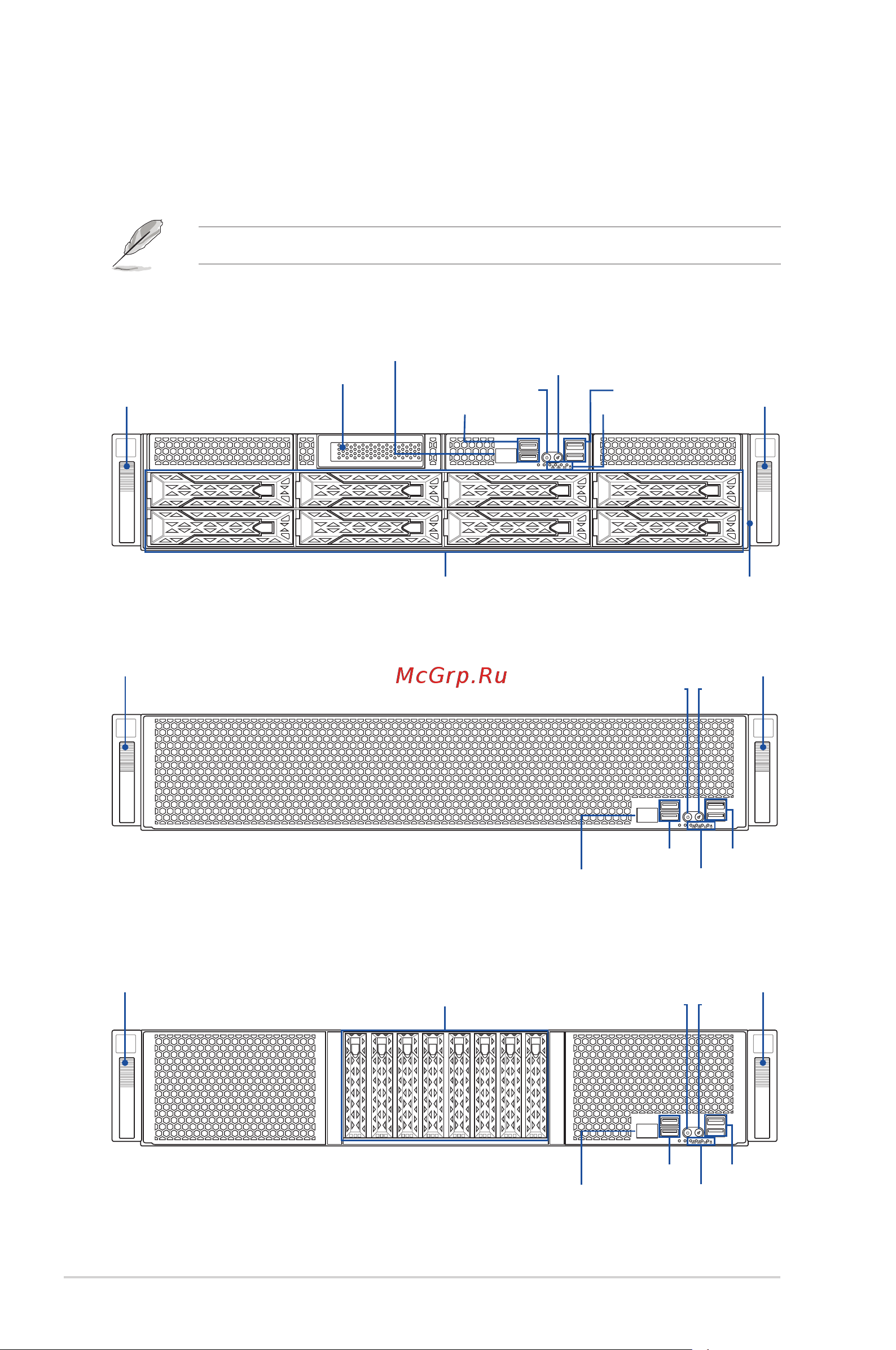

The barebone server features a simple yet stylish front panel. The power and reset buttons,
LED indicators, and USB ports are located and easily accessible on the front panel.
ESC4000 G4
ESC4000 G4S
ESC4000 G4X
USB 2.0 ports
Front panel LED
USB 3.0 ports
USB 3.0 ports
USB 3.0 ports
USB 2.0 ports
USB 2.0 ports
Steel handle
Steel handle
Steel handle
Steel handle
Steel handle
Steel handle
Hot-swap 3.5-inch Storage Device Bays
Hot-swap 2.5-inch Storage Device Bays
Asset tag
Location button
Location
button
Location
button
Power button
Power
button
Power
button
Refer to the 1.7.1 Front panel LEDs section for the LED descriptions.
Internal SAS/HBA/Storage bracket
Q-code/Port 80 LED
Q-code/Port 80 LED
Q-code/Port 80 LED
1
2
Front panel LED
Front panel LED
