3-3
ASUS ESC4000 G4 Series
3.1.2 Attaching the rack rails
Installing the rack rail
To install the rack rails into the rack:
1. Selectadesiredspaceontherack.
A1Uspaceconsistsofthree
square mounting holes with two
thin lips on the top and the bottom.
1U
The installation steps in this section uses a 1200 mm rack railasanexample,the
installationstepsfora1000 mm rack railisexactlythesame.
• Ensurethattherackrailcabinetandtherackpostsarestableandstandingrmlyona
levelsurface.
• Westronglyrecommendthatatleasttwoable-bodiedpersonsperformthesteps
described in this guide.
• Werecommendtheuseofanappropriateliftingtoolordevice,ifnecessary.

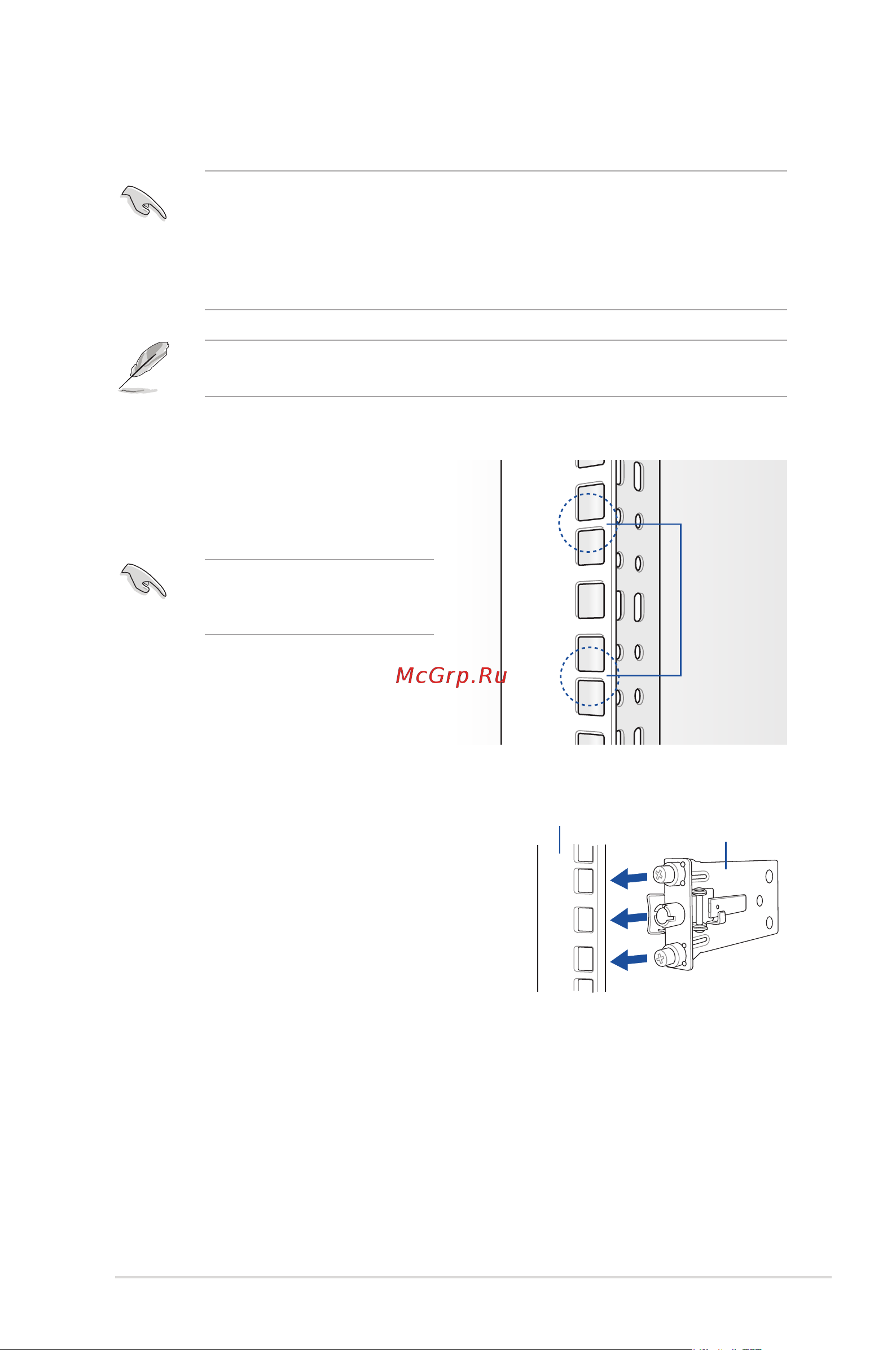

2. Alignandinsertthefrontendofthe
appropriaterackrail(leftandright)into
thefrontrackpost.
Front end of rack rail
Front rack post
