Chapter 3: Installation Options
3-4

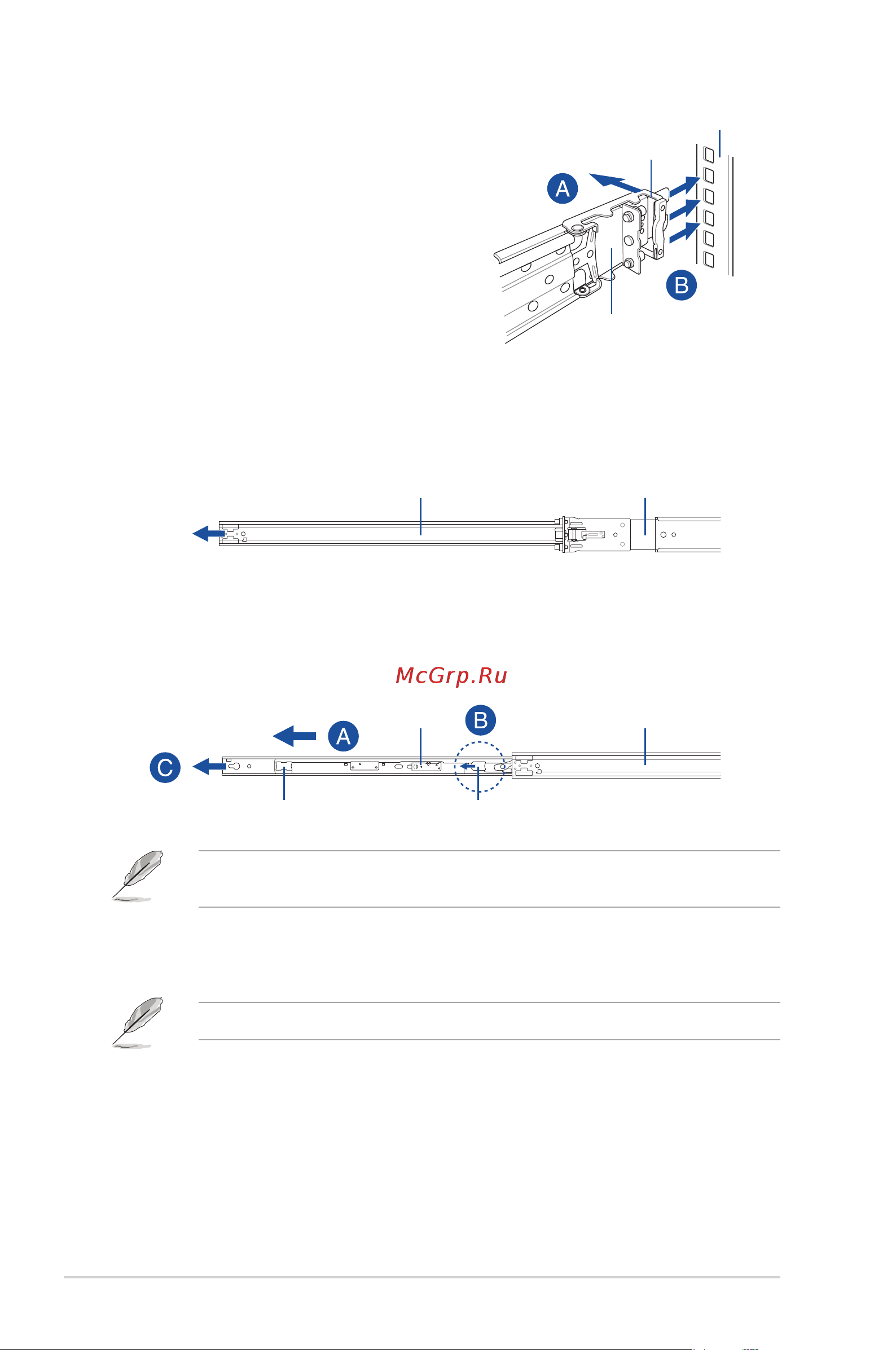

Outer rail
Intermediate rail
Intermediate rail
Inner rail
Blue release tab White release tab
Spring lock
Rear end of rack rail
Rear rack post
3. Pressthespringlockontherearend
oftherackrailandinsertthestudsinto
the selected mounting holes on the rear
rack post.
4. Slidetheintermediaterailoutoftheouterrailuntilitclickstoastop.
5. Slidetheinnerrailoutoftheintermediaterailuntilitclickstoastop.Slidethewhite
releasetaboutwardsandremovetheinnerrailcompletelyfromtheintermediaterail.
6. Repeatsteps2to5fortheotherrackrail.
Ensurethattheinstalledrackrails(leftandright)arealigned,secured,andstableinplace.
Thebluereleasetabisavailableon1200mmrackrails.Thisbluereleasetabisusedto
furtherextendorretracttheinnerrail.
