ASUS ESC4000 G4 Series
1-11
The barebone server does not include a oppy disk drive or an optical drive. Connect a
USB oppy disk drive to any of the USB ports on the front or rear panel if you need to use
a oppy disk.
WARNING
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY
A protection lm is pre-attached to the front cover before shipping. Please remove the
protection lm before turning on the system for proper heat dissipation.

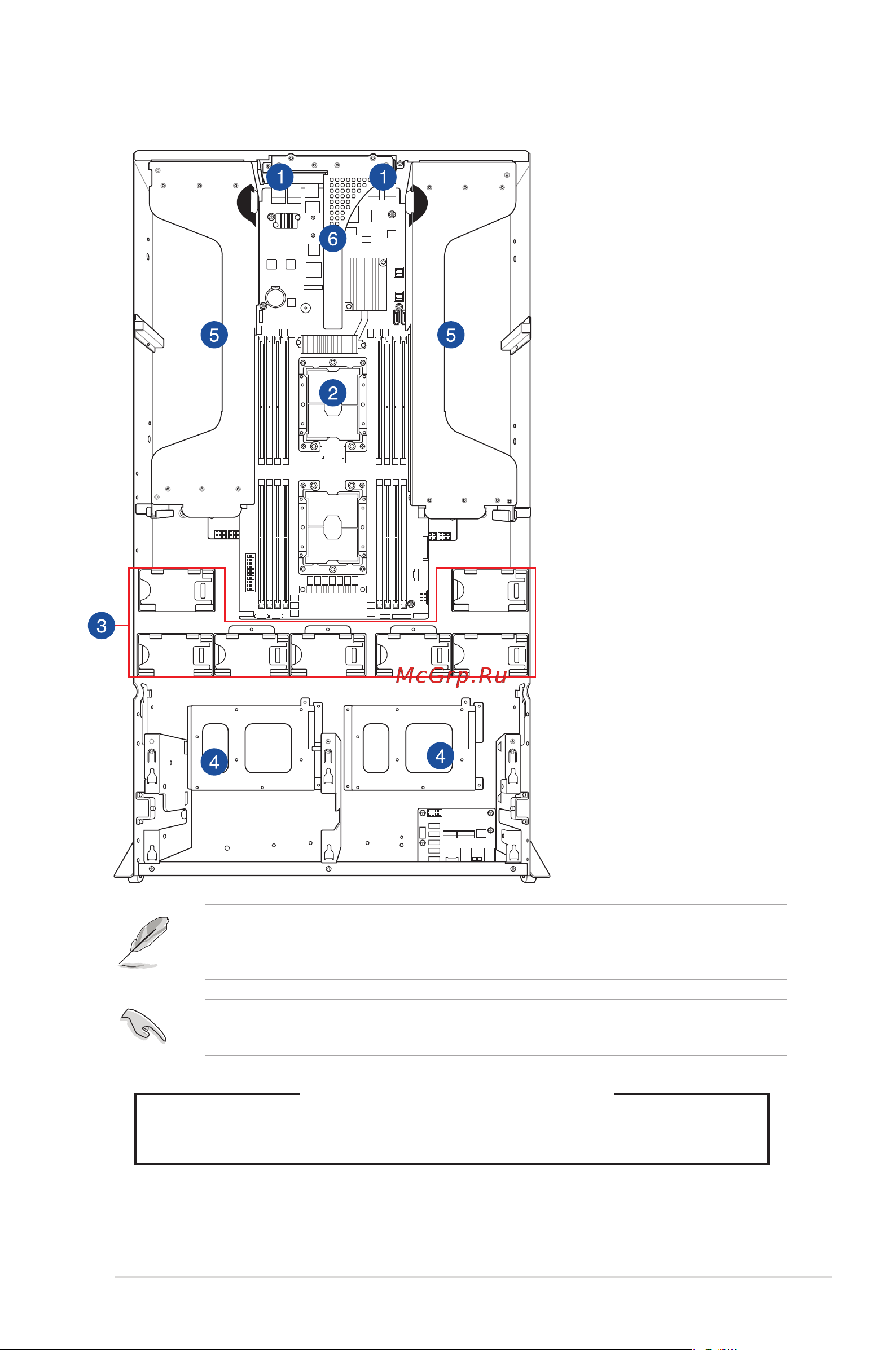

1. Redundant power
supply and power fan
(hidden)
2. ASUS Z11PG-D16
server board
3. System fans
4. Storage Device bays
(SAS, SATA, and U.2)
5. PCI-E expansion
boards (hidden)
6. PCI-E x24 slot with
buttery riser card
ESC4000 G4X
FAN1FAN2FAN3FAN4FAN5
FAN7 FAN6
