2-53

ASUS ESC4000 G4 Series

For Nvidia CPU-12V GPU card installation

dongle

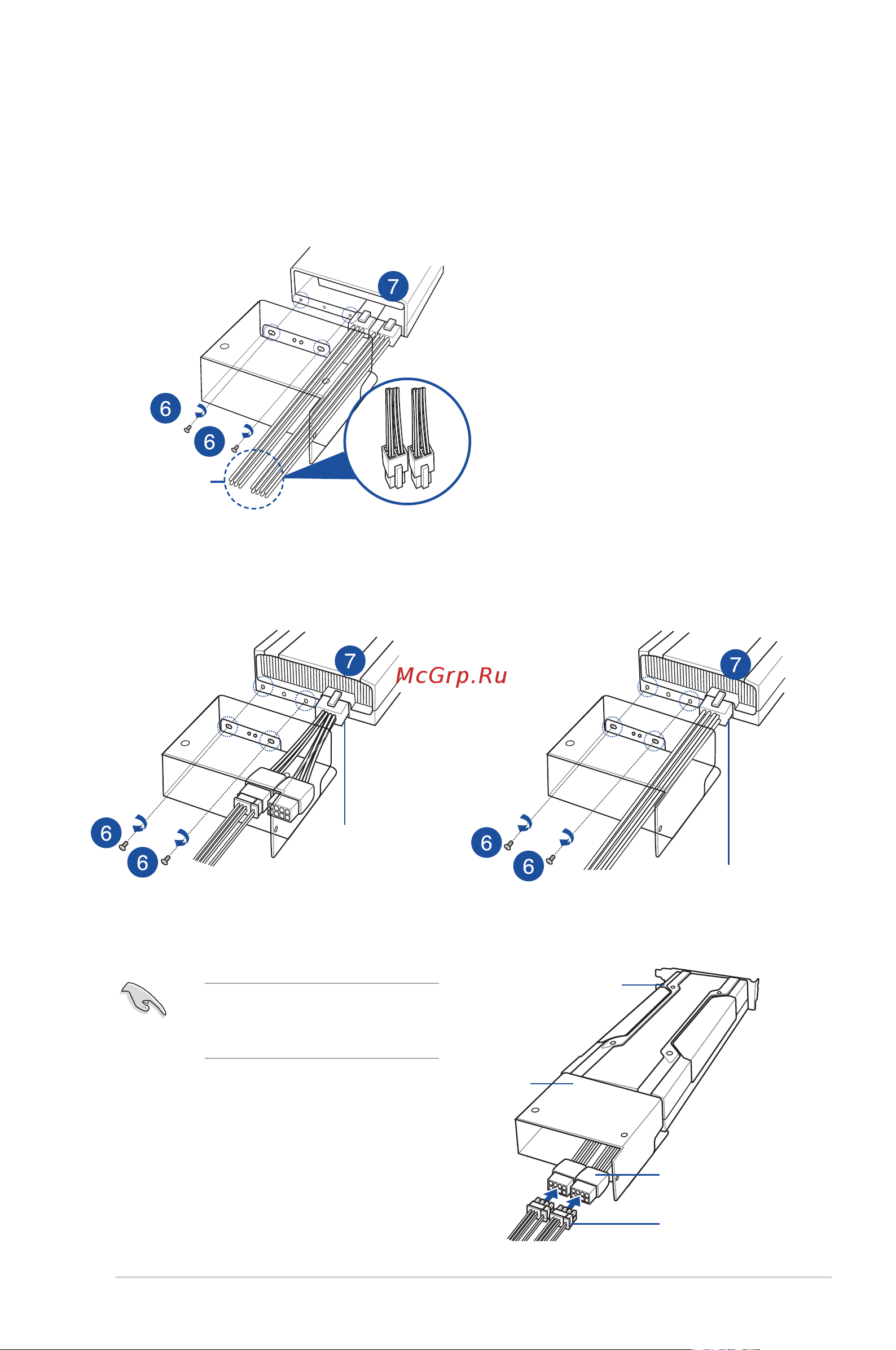

6. From inside the air duct, secure the air duct to the accelerator with two screws.

7. Connect the GPU power cable, dongle, or ASUS CPU 8-pin power cable to the

connector on the accelerator as shown.

4-pin connector

Nvidia CPU-12V GPU card

air duct

dongle

GPU power cable

When using the dongle, connect a

GPU power cable to the connector

on the dongle.

For Intel/AMD/Nvidia GPU card installation

ASUS CPU 8-pin power cable
