ASUS ESC4000 G4 Series 7-9

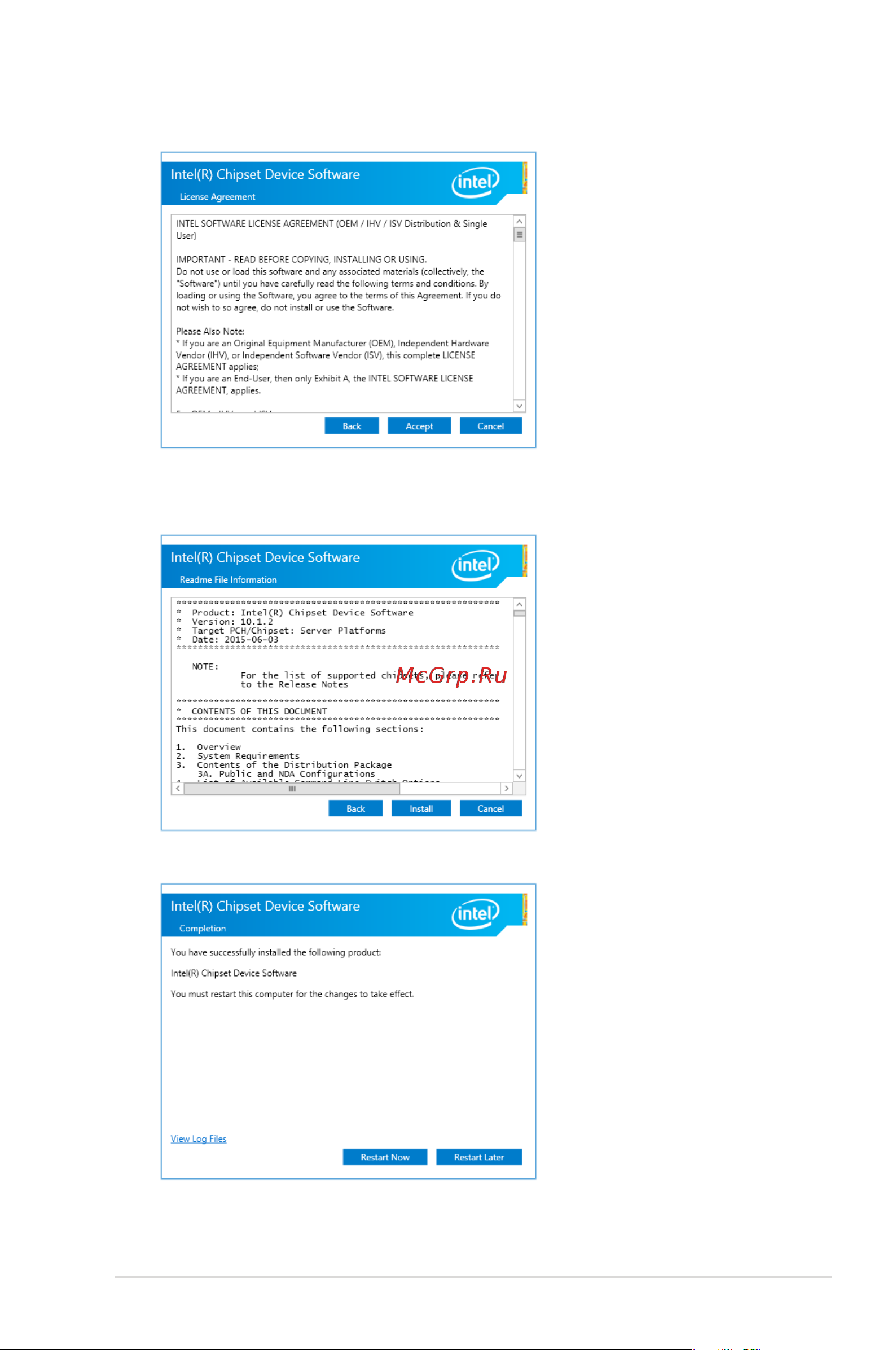

5. Read the License Agreement and click Accept to continue the process.
6. Read the Readme File Information and click Install to start the installation process.
7. Click Restart Now to complete the setup process.
