2-5

ASUS ESC4000 G4 Series

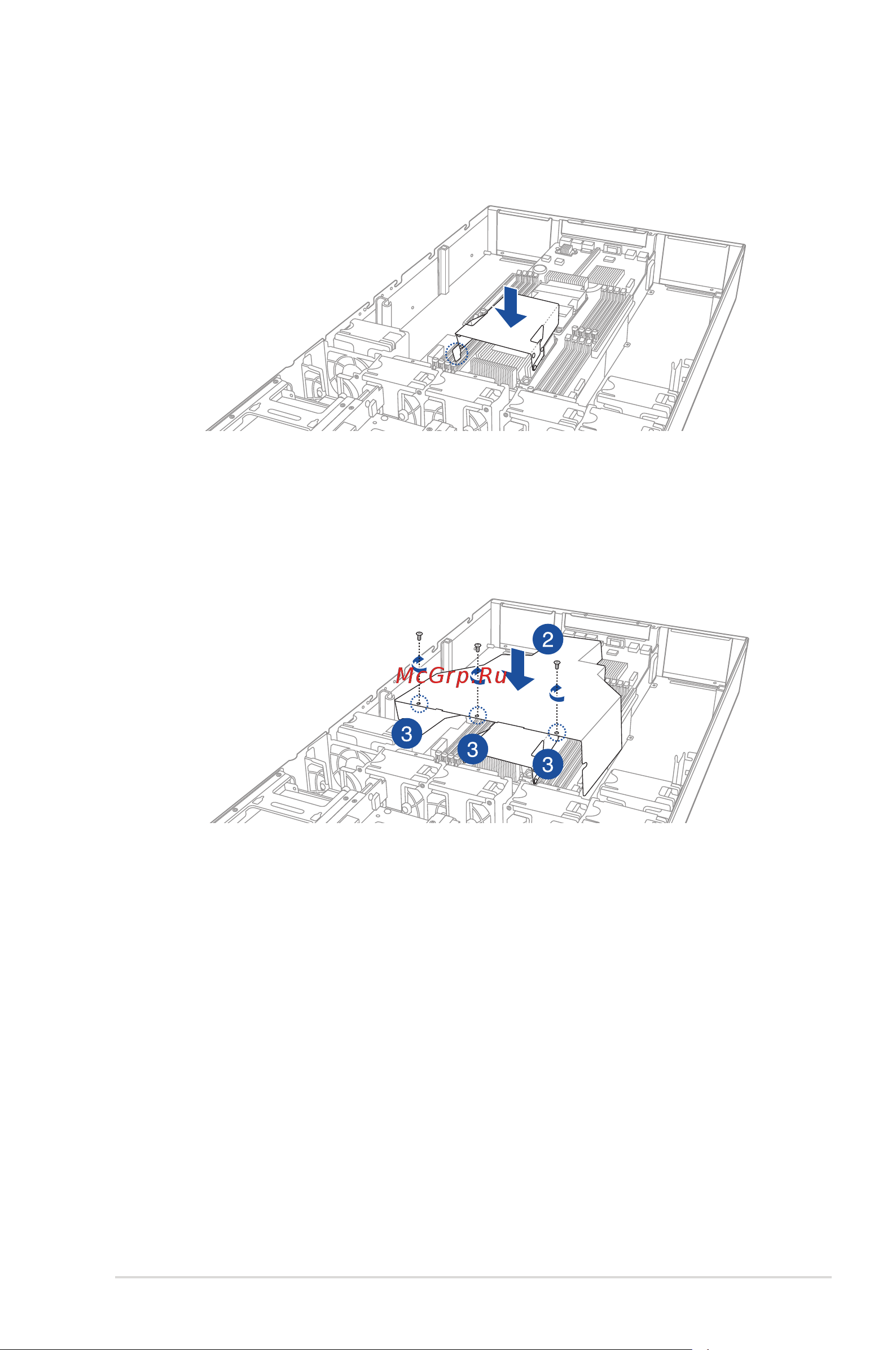

To reinstall the air duct:

1. Align and replace the CPU air duct to the motherboard.

2. Align and replace the air duct to the chassis ensuring that the screw holes on the air

duct match the screw holes on chassis.

3. Secure the air duct to the chassis with three screws removed earlier.
