Chapter 2: Hardware Setup

2-8

7. Reinstall the air duct. For more information, see the section Air Duct.

3 4

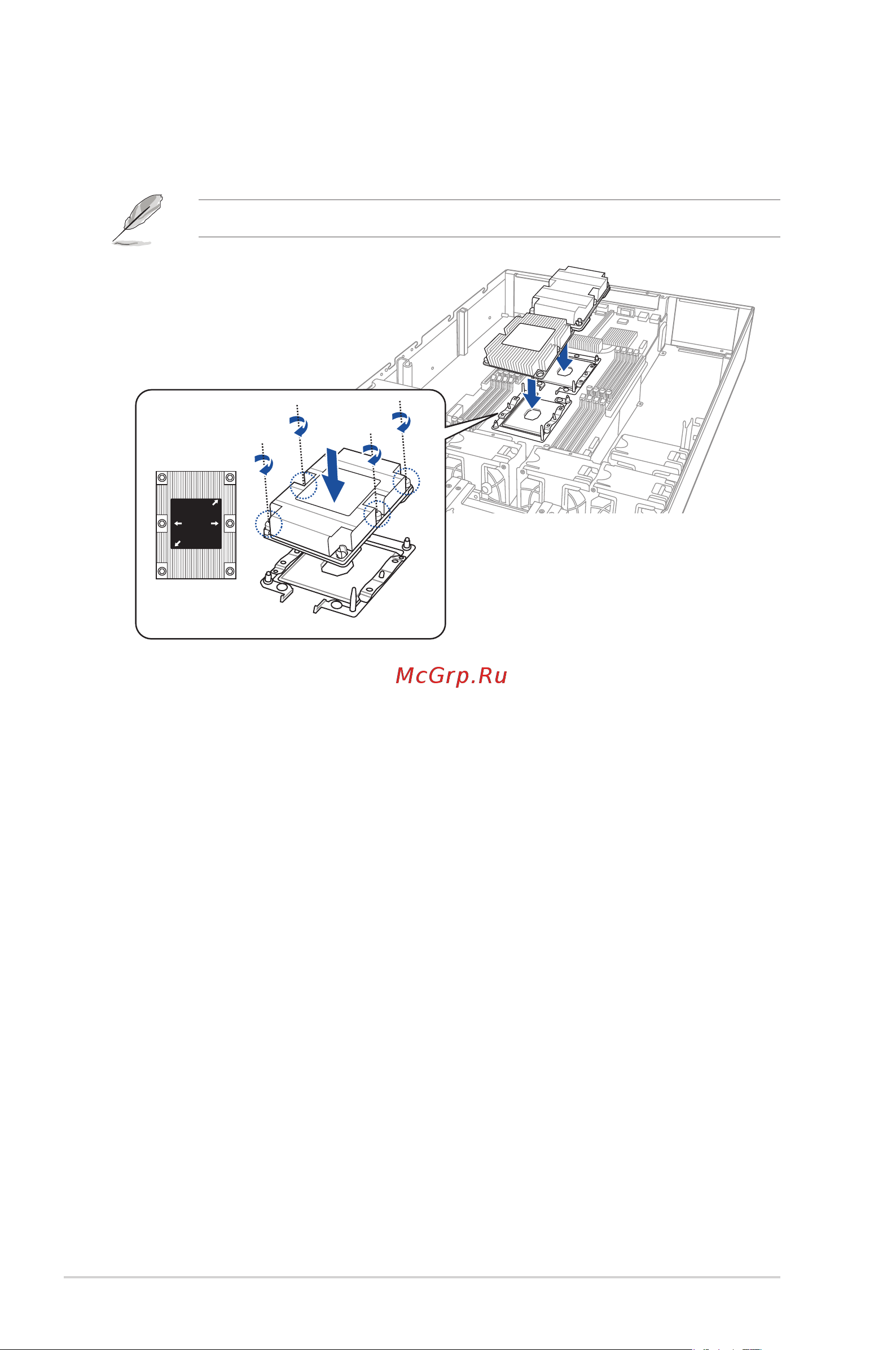

6. Twist each of the four screws with a screwdriver just enough to attach the heatsink to

the motherboard. When the four screws are attached, tighten them one by one in a

diagonal sequence to completely secure the heatsink.

The heatsink screws are T30 models. A torque value of 12 inch-lbf is recommended.
