2-27
ASUS ESC4000 G4 Series

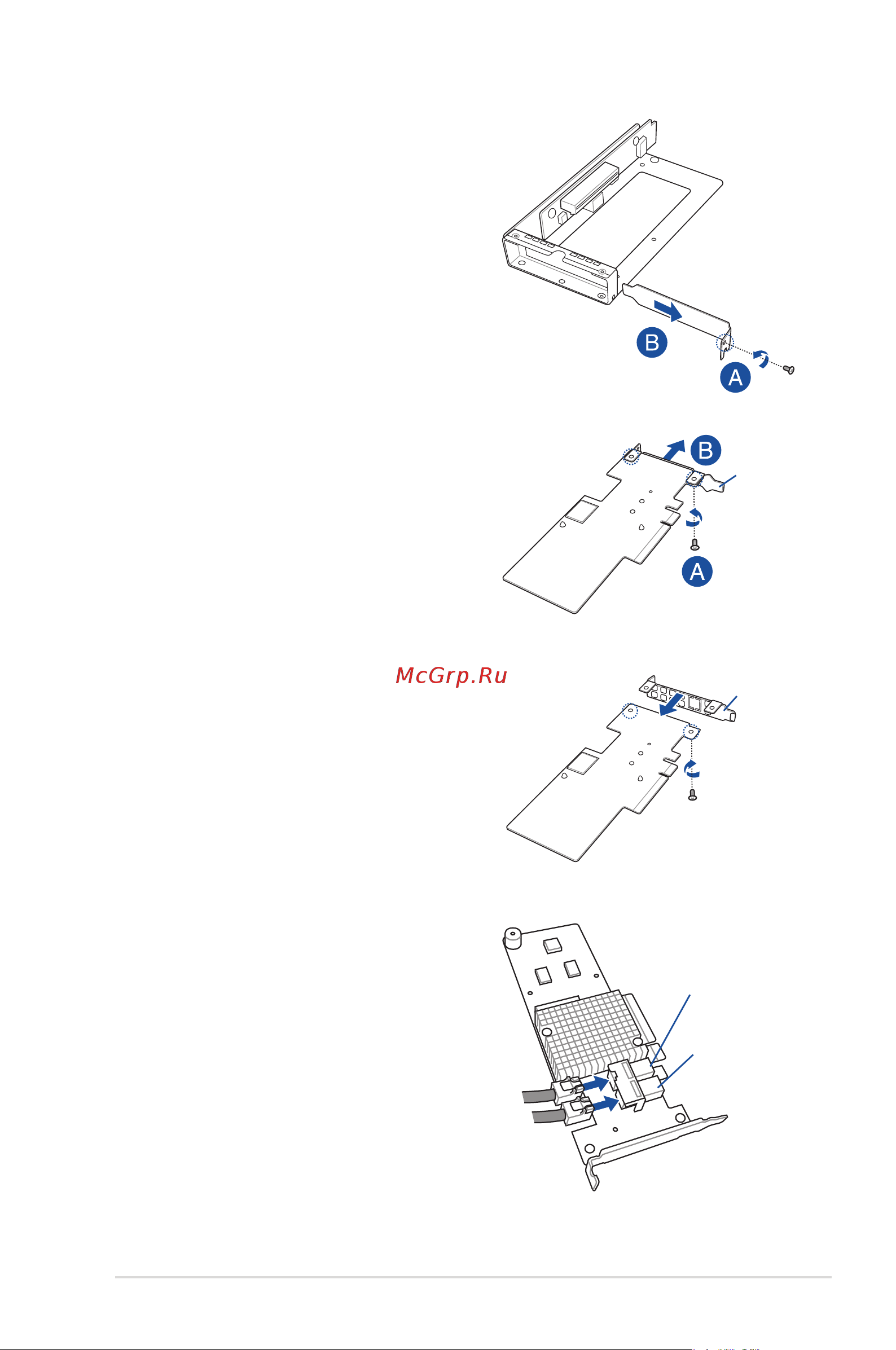

3. Remove the screw from the metal bracket
(A), then remove the metal bracket (B).
4. Prepare the ASUS PIKE II card.
5. Remove the two screws on the ASUS PIKE II
card (A), then remove the card bracket (B).
Card bracket
Metal cover
6. Secure the ASUS PIKE II card and the metal
cover (internal SAS/HBA/Storage bracket)
with the two screws.
7. Connect the two mini SAS HD cables to the
ASUS PIKE II card.
connect to ASUS PIKE II
connector 2
connect to ASUS PIKE II
connector 1
