Chapter 2: Hardware Setup

2-34

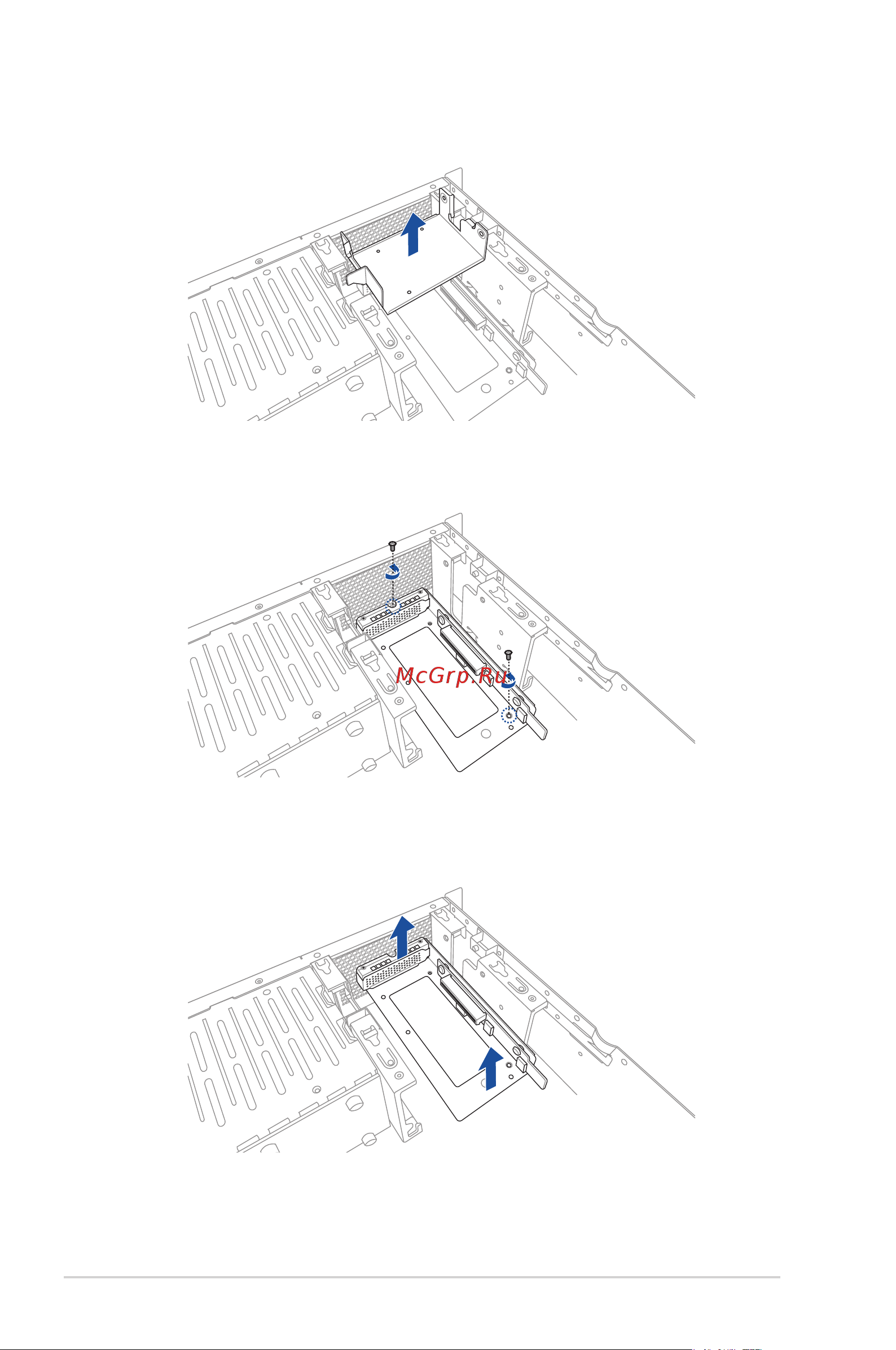

3. Remove the Cache Vault Power Module clip holder from the server system.

4. Remove the two (2) screws from the internal SAS/HBA/Storage bracket.

5. Remove the internal SAS/HBA/Storage bracket from the server system.
