2-37

ASUS ESC4000 G4 Series

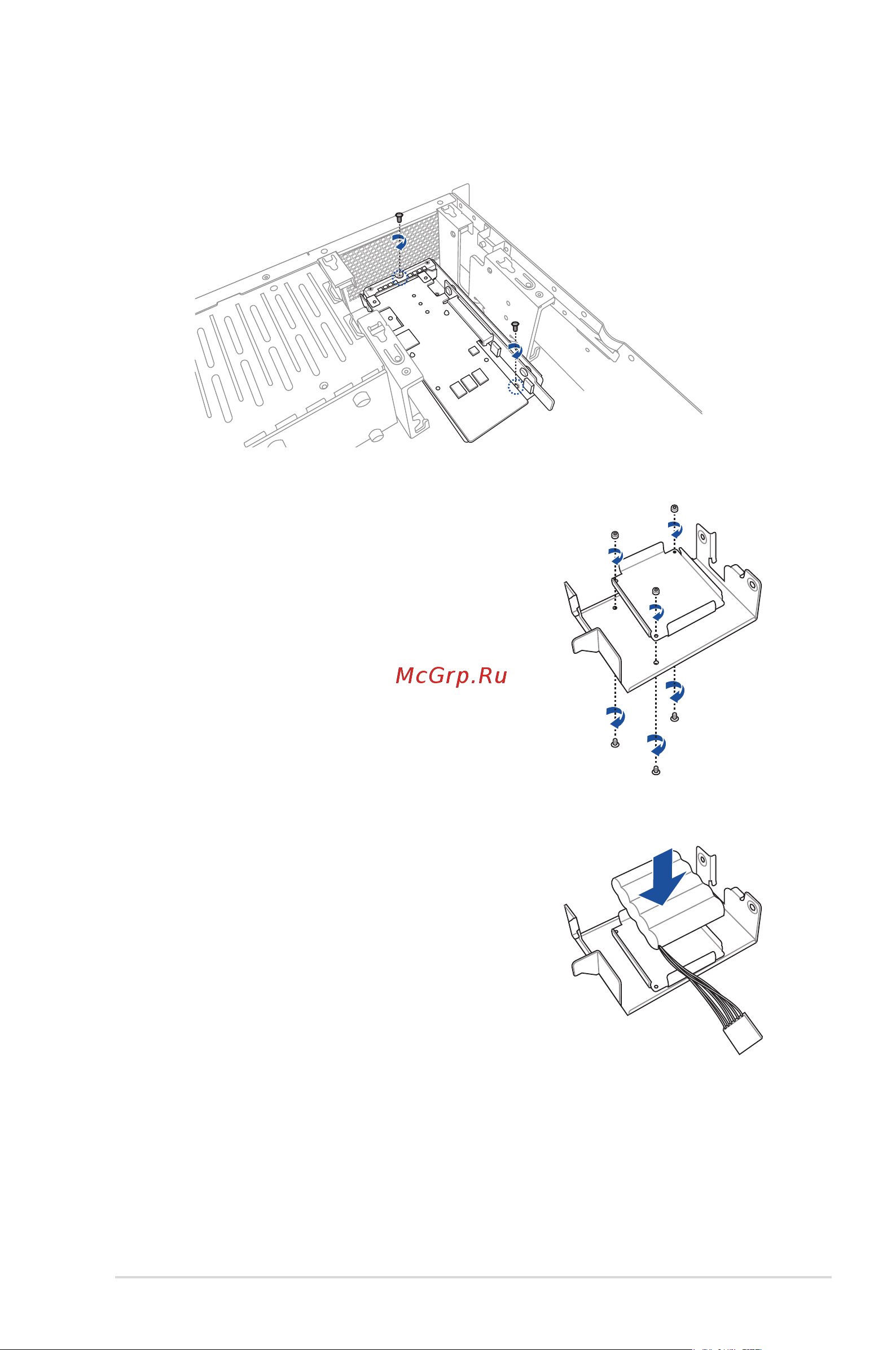

16. Align the three screw holes on the Cache

Vault Power Module clip to the three

screw holes on the Cache Vault Power

Module clip holder, then secure the clip

with the bundled three (3) screws and

three (3) bundled nuts.

17. Align and install the Cache Vault Power

Module into the Cache Vault Power

Module clip.

15. Reinstall the internal SAS/HBA/Storage bracket into the server system, then secure the

internal SAS/HBA/Storage bracket with the two screws removed earlier.
