Chapter 2: Hardware Setup

2-50

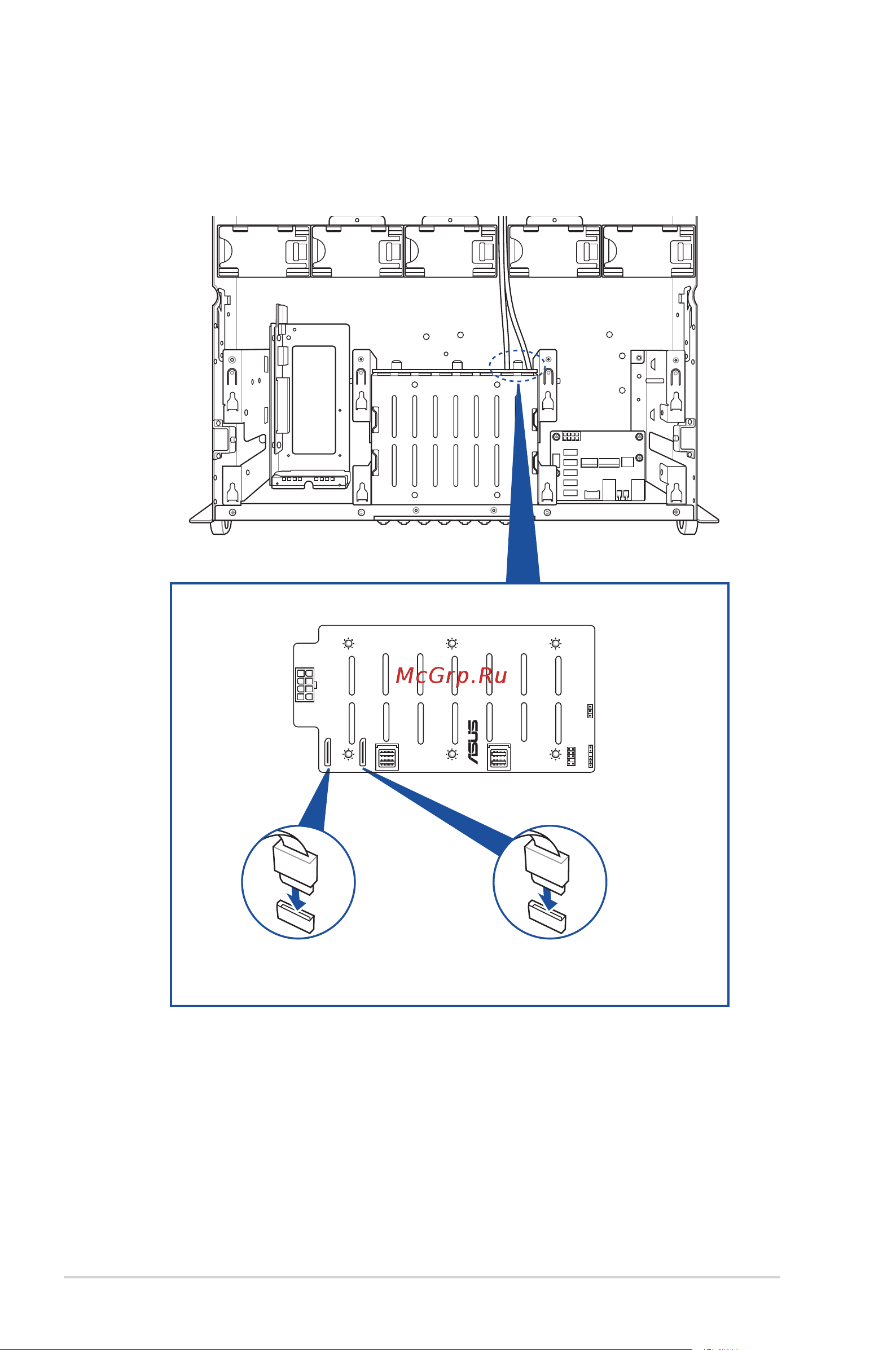

3. Connect the OCuLink cables to the corresponding slots located on the backplane.

Ensure to connect OCuLink cable 1 to the OCUPCIE8 connector, and OCuLink cable 2

to the OCUPCIE7 connector.

Connect OCuLink cable 1 to OCUPCIE8

Connect OCuLink cable 2 to OCUPCIE7

BPSMB1

SMBUS1

MSAS_HD1

MB_RST1

BP8LX4LE12G-25-R23A

MSAS_HD2

OCUPCIE7

OCUPCIE8
