2-55

ASUS ESC4000 G4 Series

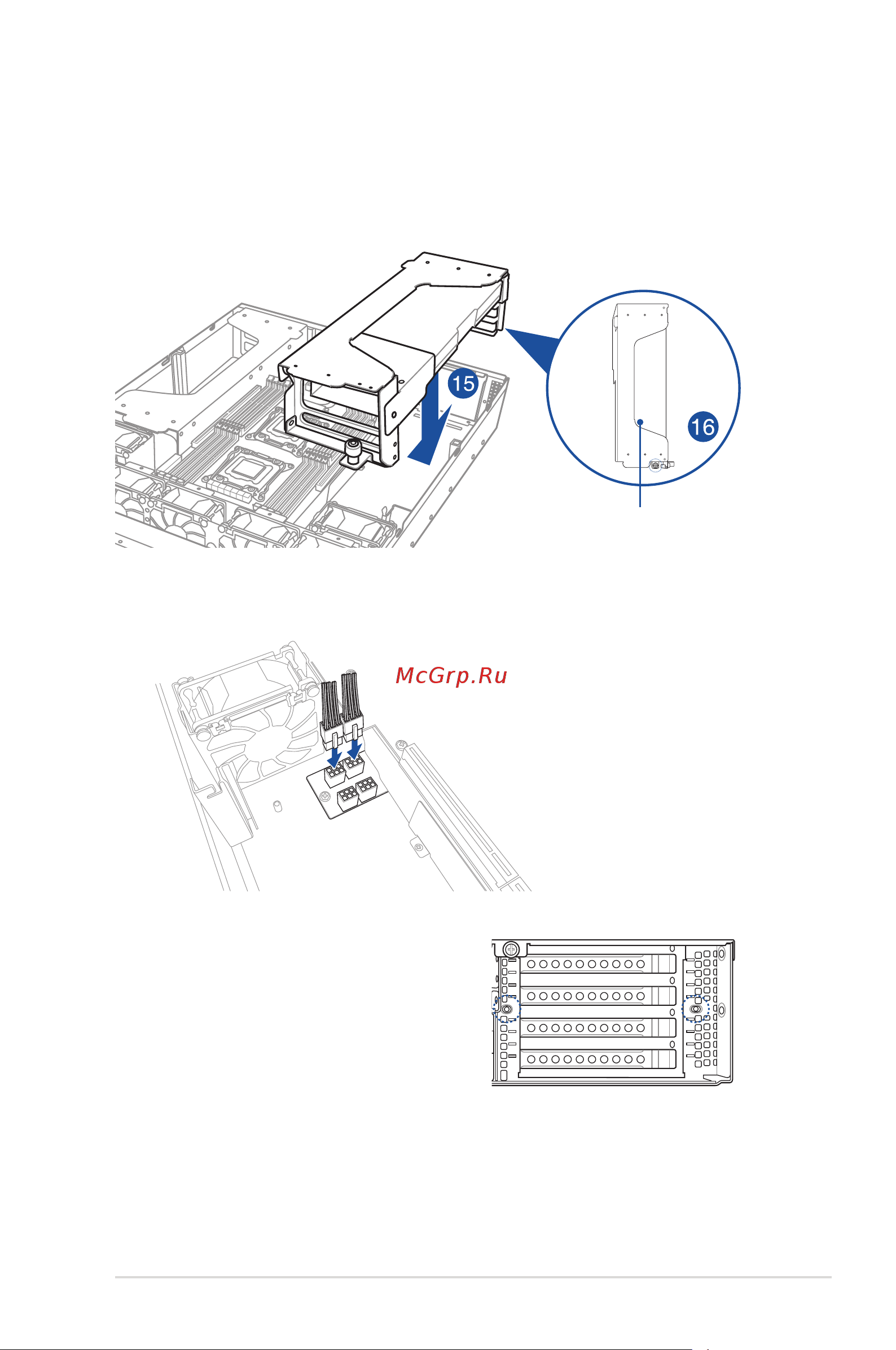

14. Repeat step 4-13 if you need to install a second accelerator to the bracket.

15. Align and insert the golden ngers of the accelerator bracket into the card slot on the

motherboard. Ensure the bracket is completely seated on the slot.

16. Secure the thumbscrew in front of the accelerator bracket.

17. Attach the other end of the GPU power cable (6-pin power connector) to an available

6-pin power connector in front of the accelerator bracket.

18. Secure the accelerator brackets to the

server chassis with two screws.

accelerator and

bracket assembly
