3-9

ASUS ESC4000 G4 Series

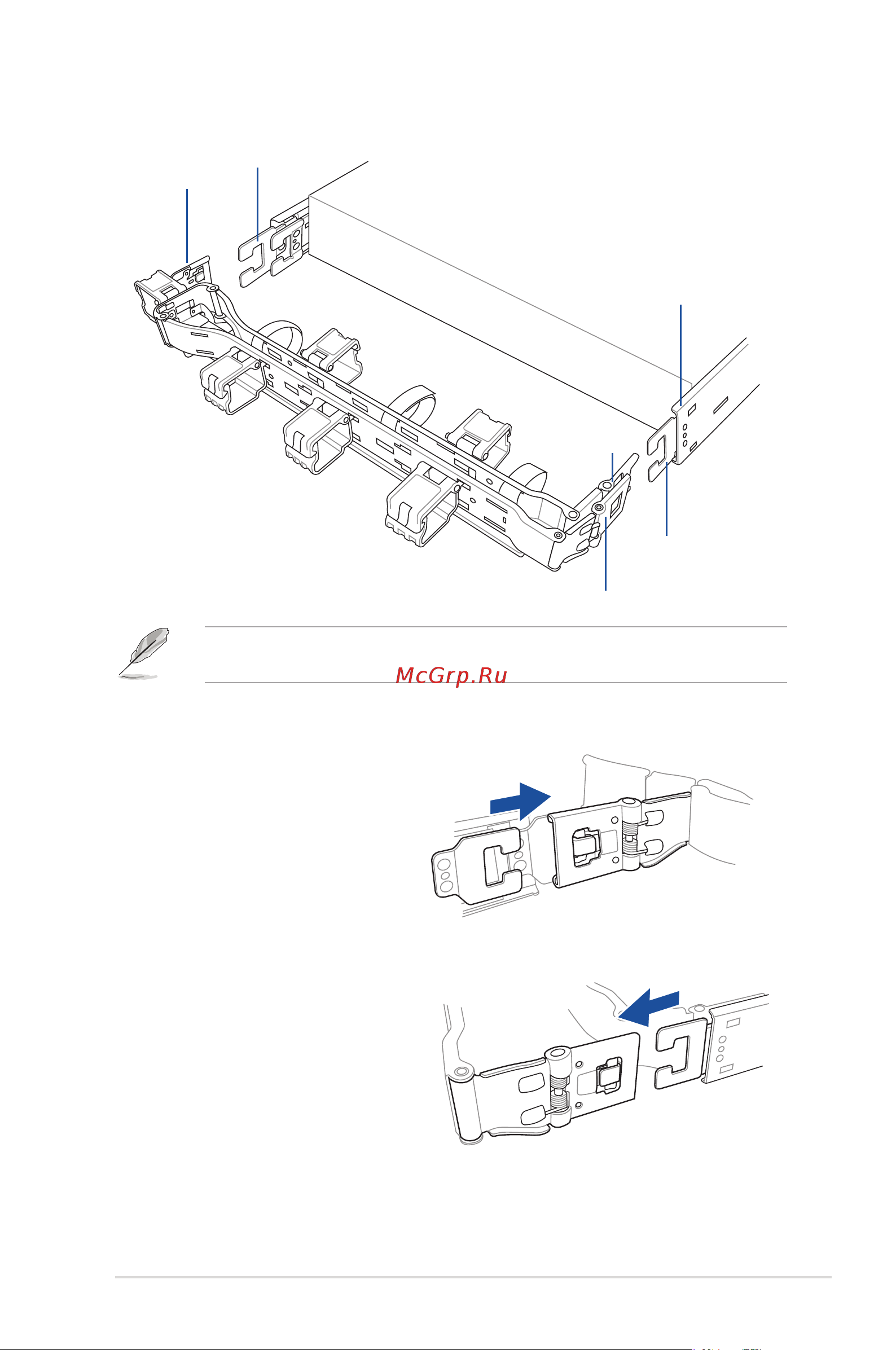

3. Align the three receptors on the CMA with the connectors on the rack rails.

4. Alignandconnecttheinner

receptor on the CMA with the

connector on the inner rail.

5. Alignandconnecttheouter

receptor on the CMA with the

connector on the intermediate

rail.

Intermediate rail connector

Pivot receptor

Inner receptor

Inner rail connector (hidden)

Intermediate rail

connector

Outer receptor

The installation steps in this section uses a Leftpivotcongurationasanexample,the

installationstepsforaRightpivotconguration is similar.
