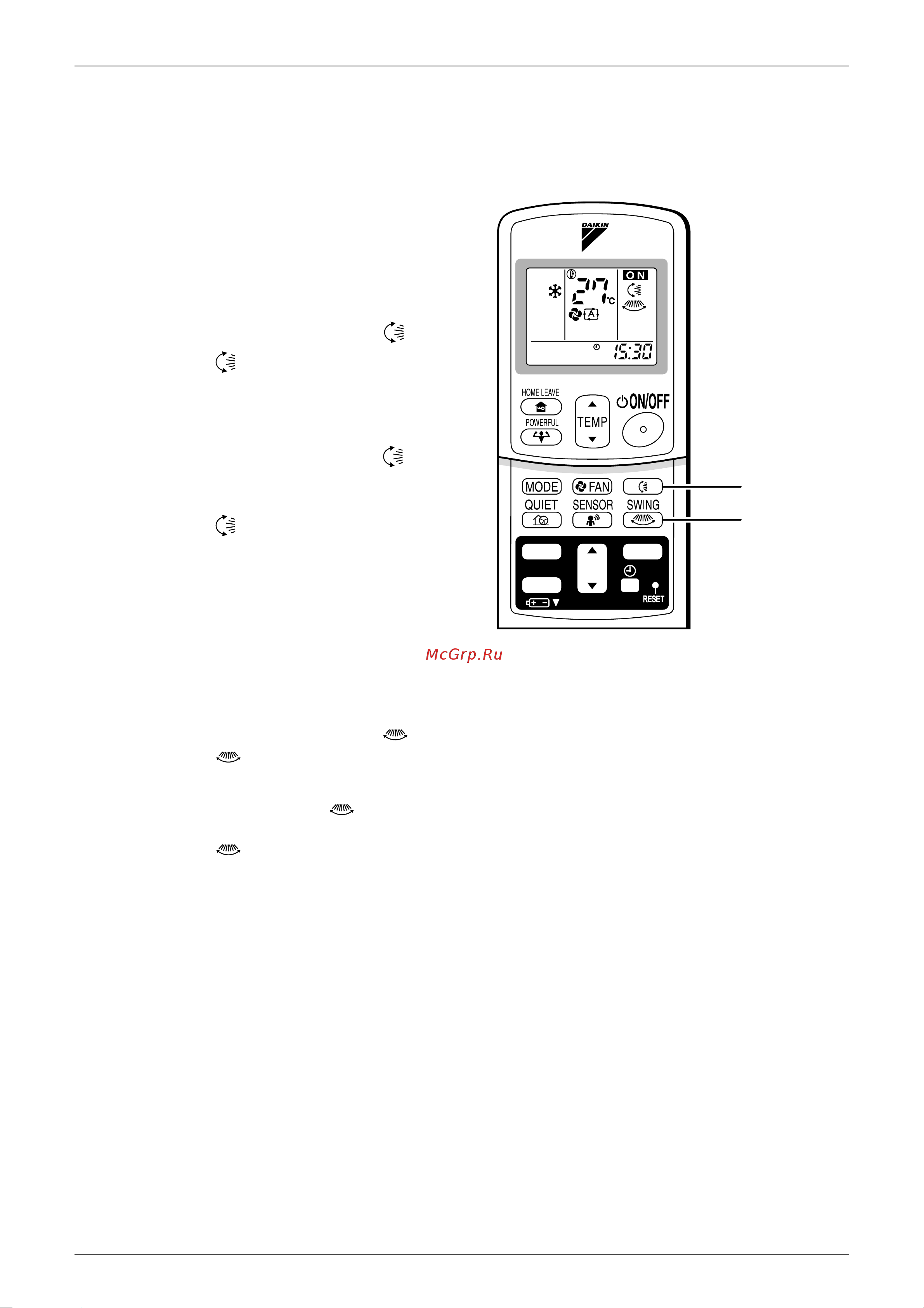

2.3.4 Adjusting the Air Flow Direction
12
Adjusting the Air Flow Direction
You can adjust the air flow direction to increase your
comfort.
To adjust the horizontal
blade (flap)
1. Press “SWING button ”.
• “ ” is displayed on the LCD and the
flaps will begin to swing.
2. When the flap has reached the
desired position,
press “SWING button ” once
more.
• The flap will stop moving.
• “ ” disappears from the LCD.
To adjust the vertical blades (louvers)
3. Press “SWING button ”.
• “ ” is displayed on the LCD.
4. When the louvers have reached the desired position, press the
“SWING button ” once more.
• The louvers will stop moving.
• “ ” disappears from the LCD.
TIMER
ON
CANCEL
OFF
1, 2
3, 4
