SiBE04-705 Outdoor Unit
Removal Procedure 221

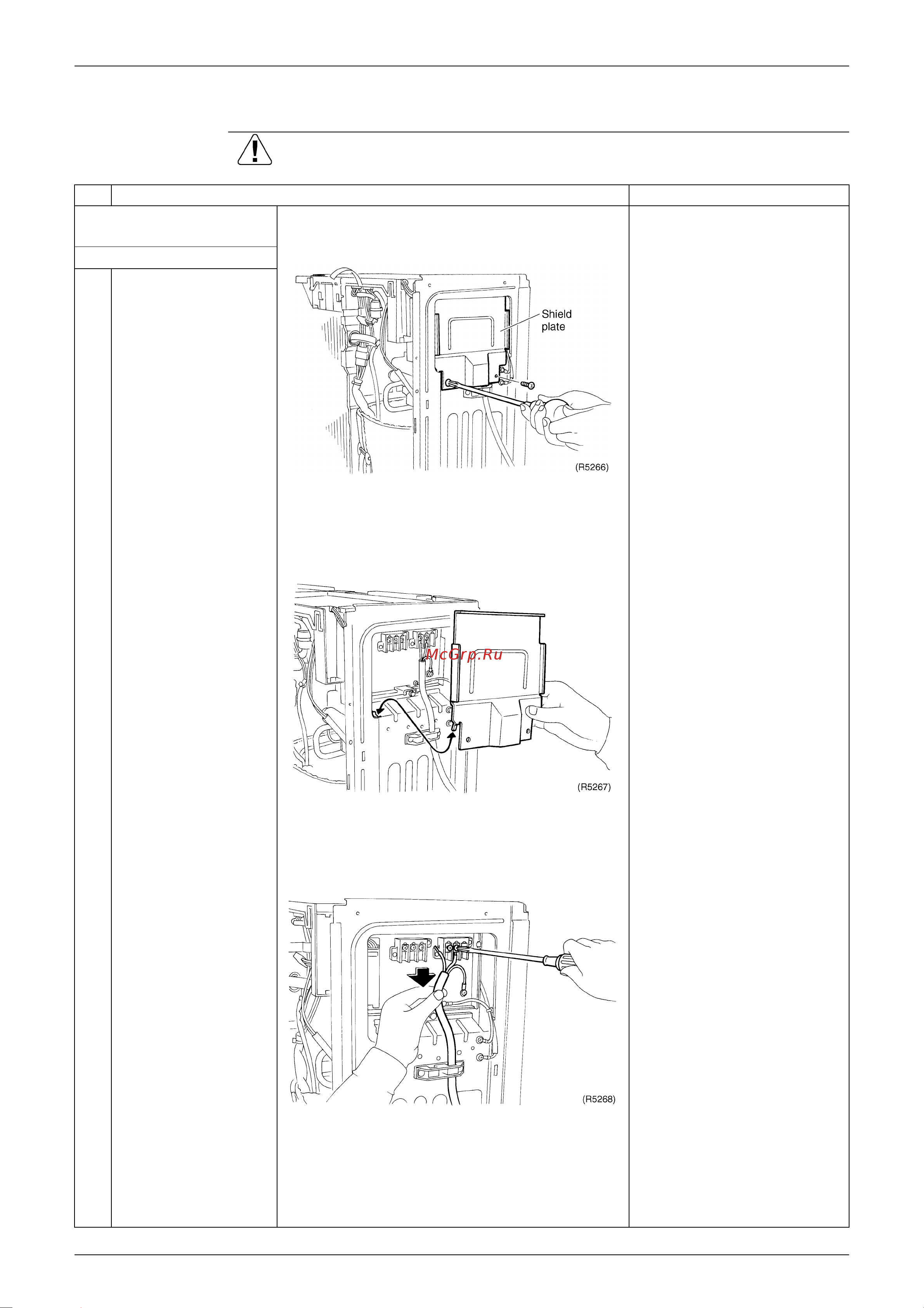

2.1.3 Removal of the Electrical Box
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
Remove the top panel
and the front panel.
1. Remove the shield plate.
1
Loosen the 2 screws.
2
Slide the cover upward
to undo the one hook
on the bottom left, and
then remove the plate.
3
Disconnect the 2 power
supply cables and the 1
earth wire.
