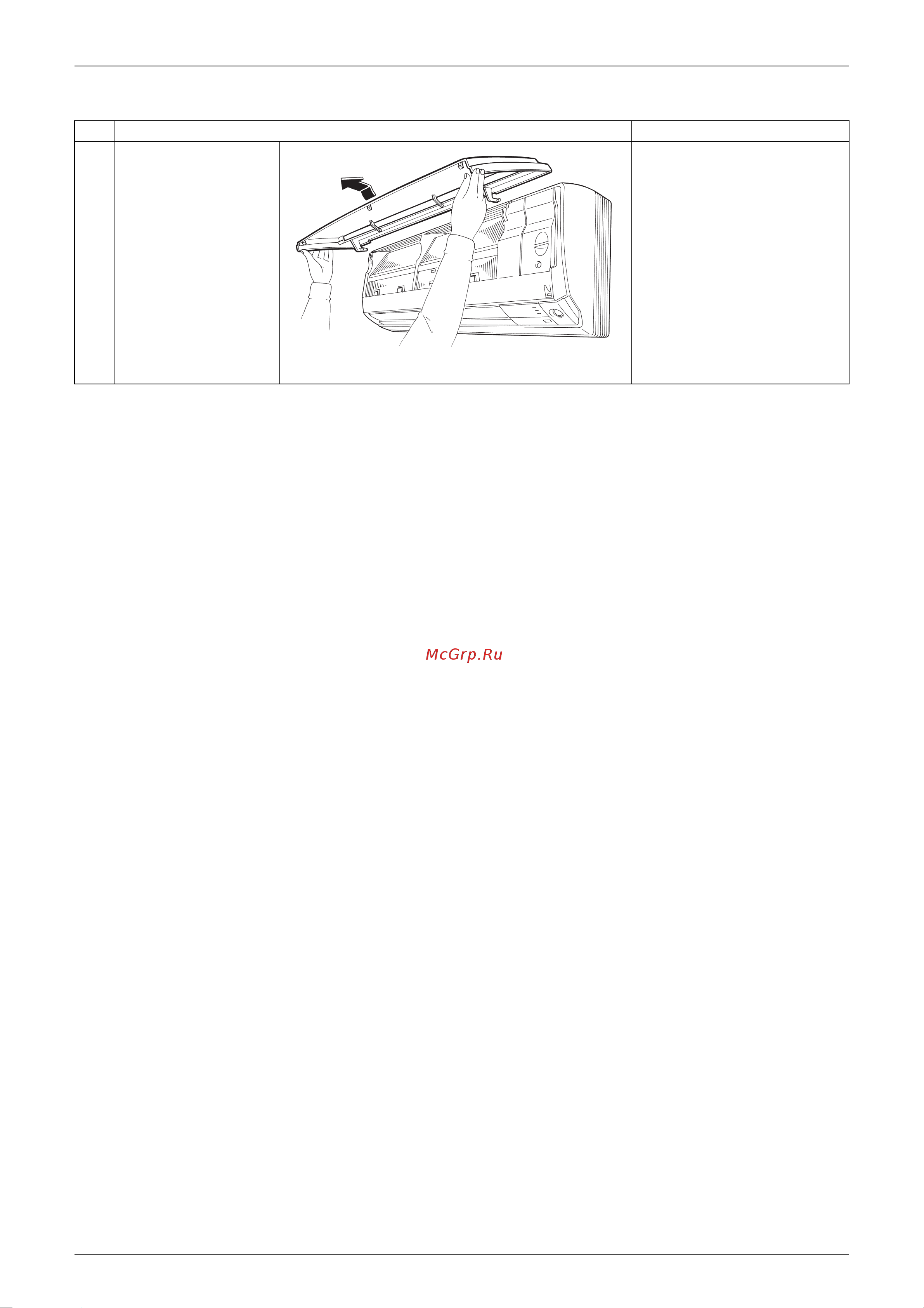

Daikin RYN60E3V1B [178/300] When mounting the front panel fit the right and left rotary shafts one by one into the grooves and fully push them in position

Inverter principle to regulate the capacity a frequency control is needed the inverter makes it possible to vary the rotation speed of the compressor the following table explains the conversion principle 37

Main control parameters the compressor is frequency controlled during normal operation the target frequency is set by the following 2 parameters coming from the operating indoor unit 37

Main functions 37

Note see the list of functions for the functions applicable to different models 37

The difference between the room temperature and the set temperature 37

The load condition of the operating indoor unit 37

The target frequency is adapted by additional parameters in the following cases 37

Comfortable air conditioning a detailed adjustment is integrated to ensure a fixed room temperature it is possible to air condition with a small room temperature variation 38

Energy saving heating and cooling once the set temperature is reached the energy saving operation enables to maintain the room temperature at low power 38

Even during extreme cold weather the high capacity is achieved it is maintained even when the outside temperature is 2 c 38

For more information refer to forced operation mode on page 38

Forced cooling operation 38

Frequency limits the following table shows the functions that define the minimum and maximum frequency 38

Inverter features the inverter provides the following features 38

Quick heating and quick cooling the compressor rotational speed is increased when starting the heating or cooling this enables a quick set temperature 38

The regulating capacity can be changed according to the changes in the outside temperature and cooling heating load 38

Power airflow dual flaps wide angle louvers and auto swing 39

Fan speed control for indoor units 40

In case of inverter units the microcomputer automatically sets the temperature and fan settings the difference between the room temperature at startup and the temperature set by the microcomputer is divided into two zones then the unit operates in the dry mode with an appropriate capacity for each zone to maintain the temperature and humidity at a comfortable level 41

Programme dry function 41

Programme dry function removes humidity while preventing the room temperature from lowering since the microcomputer controls both the temperature and air flow volume the temperature adjustment and fan adjustment buttons are inoperable in this mode 41

Zone a thermostat off 41

Zone b zone b 41

Zone c thermostat on 41

Automatic operation 42

Cooling dry 43

Function and control 43

Heating 43

Main functions sibe04 705 43

The monitoring time has passed while the temperature difference is in the zone b cooling dry 10 minutes heating 10 seconds 43

The operation turns on in any zones except a 43

The system resumes from defrost control in any zones except a 43

The temperature difference is above the zone c after being in the zone a 43

The temperature difference is in the zone a 43

Thermostat control 43

Thermostat control is based on the difference between the room temperature and the setpoint 43

Thermostat off condition 43

Thermostat on condition 43

Night set mode 44

Econo mode 45

A microcomputer in an indoor unit carries out a sampling every 20 msec and if it detects 10 cycles of the wave in one second in total corresponding to 20msec 10 100msec it judges human is in the room as the motion signal is on 46

Function and control 35 46

In case of fan mode the fan speed reduces by 50 rpm 46

Intelligent eye 46

Processing 1 detection method by intelligent eye 46

Sibe04 705 main functions 46

The motions for example in cooling 46

This is the function that detects existence of humans in the room by a human motion sensor intelligent eye and reduces the capacity when there is no human in the room in order to save electricity 46

This sensor detects human motion by receiving infrared rays and displays the pulse wave output 46

When a microcomputer doesn t have a signal from the sensor in 20 minutes it judges that nobody is in the room and operates the unit in temperature shifted 2 c from the set temperature cooling dry 2 c higher heating 2 c lower and auto according to the operation mode at that time 46

Home leave operation 48

Details of the control when powerful button is pushed in each operation mode the fan speed setting temperature will be converted to the following states in a period of twenty minutes 49

Ex powerful operation in cooling mode 49

Ftk x s50 60 71f ft y n50 60f 49

Inverter powerful operation 49

Outline in order to exploit the cooling and heating capacity to full extent operate the air conditioner by increasing the indoor fan rotating speed and the compressor frequency 49

Hot start function 50

Mold proof air filter prefilter 50

On off button on indoor unit 50

Other functions 50

Self diagnosis digital display 50

Signal receiving sign 50

Titanium apatite photocatalytic air purifying filter 50

Auto restart function 51

Even if a power failure including one for just a moment occurs during the operation the operation restarts in the condition before power failure automatically when power is restored note it takes 3 minutes to restart the operation because the 3 minute standby function is activated 51

Function of thermistor 52

Heat pump model 52

Cooling only model 53

Control specification 54

Detail 1 for heat pump model there are following modes stop cooling includes drying heating include defrosting 54

For cooling only model there are following models stop and cooling including drying 54

Function and control 43 54

Mode hierarchy 54

Note unless specified otherwise an indoor dry operation command must be regarded as cooling operation 54

Outline there are two modes the mode selected in user s place normal air conditioning mode and forced operation mode for installation and providing service 54

Sibe04 705 control specification 54

Frequency control 55

D signal 56

D signal and is used for frequency command 56

D signal the difference between a room temperature and the temperature set by the remote controller will be taken as the 56

D value in each sampling time 20 seconds and adjust the frequency according to its difference from the frequency previously calculated 56

D value is large increase the frequency 56

D value is small lower the frequency when the 56

D value obtaining the fixed 56

D value of the indoor unit and the q value of the indoor unit q value indoor unit output determined from indoor unit volume air flow rate and other factors 56

D value when the 56

Determine lower limit frequency 56

Determine prohibited frequency 56

Determine upper limit frequency 56

For limiting lower limit frequency management is carried out only when the frequency rises 56

Frequency initial setting 56

Frequency management when other controls are functioning 56

I control if the operating frequency is not change more than a certain fixed time adjust the frequency up and down according to the 56

Indoor frequency command 56

Limit of frequency variation width when the difference between input current and input current drooping value is less than 1 a the frequency increase width must be limited 56

Outlin 56

P control calculate 56

Pi control determine frequency up down by 56

Set a maximum value as an lower limit frequency among the frequency lower limits of the following functions pressure difference upkeep 56

Set a minimum value as an upper limit frequency among the frequency upper limits of the following functions compressor protection input current discharge pipes freeze prevention dew prevention fin thermistor temperature 56

Th off thermostat off 56

There is a certain prohibited frequency such as a power supply frequency 56

Upper and lower limit of frequency by pi control the frequency upper and lower limits are set depending on indoor unit when low noise commands come from the indoor unit or when outdoor unit low noise or quiet commands come from indoor unit the upper limit frequency must be lowered than the usual setting 56

When frequency is drooping frequency management is carried out only when the frequency droops 56

When starting the compressor or when conditions are varied due to the change of the room the frequency must be initialized according to the total of a maximum 56

Controls at mode changing start up 57

Four way valve operation compensation 57

Four way valve switching 57

Preheating operation 57

3 minutes stand by 58

Compressor protection function 58

Detail divide the zone 58

Discharge pipe temperature control 58

Management within the zones 58

Outline the discharge pipe temperature is used as the compressor s internal temperature if the discharge pipe temperature rises above a certain level the operating frequency upper limit is set to keep this temperature from going up further 58

Prohibit to turn on the compressor for 3 minutes after turning it off except when defrosting only for heat pump model 58

Reset zone discharge pipe temperature 58

Stop zone 58

When turning the compressor from off to on the upper limit of frequency must be set as follows the function must not be used when defrosting only for heat pump model 58

After 2 s in this zone the compressor is stopped 59

After this the output frequency is pulled down by 2hz every second until it reaches the steady zone keep zone 59

Detail 59

Frequency control in each zone drooping zone 59

Ftk x s50d and atxs50e only have econo mode 59

Input current control 59

Limit of the frequency is cancelled stop zone 59

Limitation of current drooping and stop value according to the outdoor air temperature 1 in case the operation mode is cooling 59

Outline the microcomputer calculates the input current during the compressor is running and set the frequency upper limit from such input current in case of heat pump model this control is the upper limit control function of the frequency which takes priority of the lower limit of four way valve activating compensation 59

The current droops when outdoor air temperature becomes higher than a certain level model by model 59

The current droops when outdoor air temperature becomes higher than a certain level model by model 2 in case the operation mode is heating only for heat pump model 59

The maximum limit of the compressor frequency in this control is defined as operation frequency 2hz 59

The present maximum frequency goes on reset zone 59

Freeze up protection control 60

Heating peak cut control 60

Fan control 61

Liquid compression protection function 2 61

Defrost control 62

Detail conditions for starting defrost the starting conditions must be made with the outdoor air temperature and heat exchanger temperature under the conditions that the system is in heating operation 6 minutes after the compressor is started and more than 44 minutes of accumulated time pass since the start of the operation or ending the defrosting conditions for canceling defrost the judgment must be made with heat exchanger temperature 4 c 12 c 62

Function and control 51 62

Outline heat pump only defrosting is carried out by the cooling cycle reverse cycle the defrosting time or outdoor heat exchanger temperature must be more than its fixed value when finishing 62

Sibe04 705 control specification 62

Control specification sibe04 705 63

Detail the followings are the examples of control which function in each mode by the electronic expansion valve control 63

Electronic expansion valve control 63

Function and control 63

Outline the following items are included in the electronic expansion valve control electronic expansion valve is fully closed 1 electronic expansion valve is fully closed when turning on the power 2 pressure equalizing control open control 1 electronic expansion valve control when starting operation 2 control when frequency changed 3 control for defrosting only for heat pump model 4 control when a discharge pipe temperature is abnormally high 5 control when the discharge pipe thermistor is disconnected feedback control 1 discharge pipe temperature control 63

Disconnection of the discharge pipe thermistor 64

Fully closing with power on 64

High temperature of the discharge pipe 64

Opening limit 64

Pressure equalization control 64

Starting operation control 64

Control when frequency is changed 65

Target discharge pipe temperature control 65

Detection of overload and over current 66

Insufficient gas control 66

Malfunctions 66

Sensor malfunction detection 66

Additional function 67

Compressor operating frequency is increased to pi max max hz of operating room and outdoor unit airflow rate is increased 67

Detail forced cooling 67

Detail judgment by input current when an output frequency is exceeds 55 hz 40hz for 71 class and the input current is less than specified value the adjustment is made for insufficient gas judgment by discharge pipe temperature when discharge pipe temperature is 20 45 c depending on the model or mode higher than target value and the electronic expansion value opening is 480 pulse max the adjustment is made for insufficient gas 67

Forced operation mode 67

Outline forced operating mode includes only forced cooling 67

Power supply voltage is detected each time equipment operation starts 67

Powerful operation mode 67

Voltage detection function 67

Facility setting switch cooling at low outdoor temperature 68

Part 5 operation manual 70

System configuration 0 2 instruction 1 70

System configuration 71

Caution 72

Instruction 72

Safety precautions 72

Warning 72

Consider nuisance to your neighbours from noises 73

Electrical work 73

Installation site 73

System relocation 73

Ftk x s 50 d 74

Indoor unit 74

Names of parts 74

Outdoor unit 75

Arc433b50 b4 76

Remote controller 76

Preparation before operation 77

To set the batteries 77

Attention 78

Choose a place from where the sig nals reach the unit 78

Fix the holder to a wall a pillar or similar location with the screws procured locally 78

Place the remote controller in the remote controller holder 78

Preparation before operation 78

To fix the remote controller holder on the wall 78

To operate the remote controller 78

Be careful not to cool heat the room too much keeping the temperature setting at a moderate level helps save energy cover windows with a blind or a curtain blocking sunlight and air from outdoors increases the cooling heating effect clogged air filters cause inefficient operation and waste energy clean them once in about every two weeks 79

If you are not going to use the air conditioner for a long period for example in spring or autumn turn the breaker off 79

Mode fan 79

Operation outside this humidity or temperature range may cause a safety device to disable the system 79

Please note 79

Press clock button 79

Sensor 79

The air conditioner always consumes 15 35 watts of electricity even while it is not operating 79

Tips for saving energy 79

To set the clock 79

Turn the breaker on 79

Turning on the breaker opens the flap then closes it again this is a normal procedure 79

Use the air conditioner in the following conditions 79

Auto dry cool heat fan operation 80

To change the temperature setting 80

To start operation 80

To stop operation 80

Press fan setting button 81

To change the air flow rate setting 81

Adjusting the air flow direction 82

To adjust the horizontal blades flaps 82

To adjust the vertical blades louvers 82

Always use a remote controller to adjust the flaps angle if you attempt to move it forcibly with hand when it is swinging the mechanism may be broken 83

Cool dry the flap will go up heat the flap will go down 83

In dry mode or cool mode 83

In fan mode 83

In heat mode 83

Notes on comfort airflow operation 83

Notes on flaps and louvers angles 83

Press comfort airflow button 83

Press comfort airflow button again 83

To cancel comfort airflow operation 83

To start comfort airflow operation 83

Powerful operation 84

To cancel powerful operation 84

To start powerful operation 84

Outdoor unit quiet operation 85

To cancel outdoor unit quiet operation 85

To start outdoor unit quiet operation 85

Econo operation 86

To cancel econo opera tion 86

To start econo operation 86

Intelligent eye operation 87

To cancel the intelligent eye operation 87

To start intelligent eye operation 87

Caution 88

Intelligent eye is useful for energy saving 88

Intelligent eye operation 88

Notes on intelligent eye 88

Timer operation 89

To cancel the off timer operation 89

To use off timer operation 89

Attention 90

Timer operation 90

To cancel on timer operation 90

To combine on timer and off timer 90

To use on timer operation 90

Care and cleaning 91

Caution 91

Front panel 91

Indoor unit outdoor unit and remote controller 91

Air filter 92

Filters 92

Maintenance 92

Replacement 92

Titanium apatite photocatalytic air purifying filte 92

After operation stops turn off the breaker for the room air conditioner 93

Before a long idle period 93

Clean the air filters and set them again 93

Operate the fan only for several hours on a fine day to dry out the inside 93

Take out batteries from the remote controller 93

Case explanation 94

These cases are not troubles 94

Trouble shooting 94

Troubleshooting 94

Case check 95

Check again 95

Call the service shop immediately 96

Disposal requirements 96

Important information regarding the refrigerant used 96

The power cord is abnormally hot or damaged an abnormal sound is heard during operation the safety breaker a fuse or the earth leakage breaker cuts off the operation frequently a switch or a button often fails to work properly there is a burning smell water leaks from the indoor unit 96

Turn the breaker off and call the service shop 96

Warning 96

We recommend periodical maintenance 96

Fault diagnosis 97

Instruction sibe04 705 97

Operation manual 97

The code indication changes as shown below and notifies with a long beep 97

Ftk x s 50 60 71 f ft y 50 60 f 98

Indoor unit 98

Names of parts 98

60 class 71 class 99

Outdoor unit 99

Arc433b70 7 100

Remote controller 100

Preparation before operation 101

To set the batteries 101

Attention 102

Choose a place from where the signals reach the unit 102

Place the remote controller in the remote controller holder 102

Preparation before operation 102

To fix the remote controller holder on the wall 102

To operate the remote controller 102

Be careful not to cool heat the room too much keeping the temperature setting at a moderate level helps save energy 103

Clogged air filters cause inefficient operation and waste energy clean them once in about every two weeks 103

Cover windows with a blind or a curtain blocking sunlight and air from outdoors increases the cooling heating effect 103

If you are not going to use the air conditioner for a long period for example in spring or autumn turn the breaker off 103

Operation outside this humidity or temperature range may cause a safety device to disable the system 103

Please note 103

Press clock button 103

The air conditioner always consumes 15 35 watts of electricity even while it is not operating 103

Tips for saving energy 103

To set the clock 103

Turn the breaker on 103

Use the air conditioner in the following conditions 103

Auto dry cool heat fan operation 104

To change the temperature setting 104

To start operation 104

To stop operation 104

Press fan setting button 105

To change the air flow rate setting 105

Adjusting the air flow direction 106

To adjust the horizontal blade flap 106

To adjust the vertical blades louvers 106

Notes on flap angle 107

Notes on louvers angles 107

Press either the swing button or the swing button 107

Press the swing button and the swing button the and display will light up and the flap and louvers will move in turn 107

To 3 d airflow 107

To cancel 3 d airflow 107

Powerful operation 108

To cancel powerful operation 108

To start powerful operation 108

Outdoor unit quiet operation 109

To cancel outdoor unit quiet operation 109

To start outdoor unit quiet operation 109

Before using home leave operation 110

Home leave operation 110

To cancel home leave operation 110

To start home leave operation 110

Use as a favorite mode 111

Use as an energy saving mode 111

Useful in these cases 111

What s the home leave operation 111

Intelligent eye operation 112

To cancel the intelligent eye operation 112

To start intelligent eye operation 112

Caution 113

Intelligent eye is useful for energy saving 113

Notes on intelligent eye 113

Timer operation 114

To cancel the off timer operation 114

To use off timer operation 114

Attention 115

Press cancel button 115

Press on timer button 115

Press on timer button again 115

Press timer setting button until the time setting reaches the point you like 115

To cancel on timer operation 115

To combine on timer and off timer 115

To use on timer operation 115

Care and cleaning 116

Caution 116

Front panel 116

Indoor unit outdoor unit and remote controller 116

After washing shake off remaining water and dry in the shade 4 117

Air filter 117

Clean or replace each filter 117

Filters 117

If it is very dirty soak it for 10 to 15 minutes in water mixed with a neutral cleaning agent 117

Maintenance 117

Open the front panel page 24 2 pull out the air filters 117

Remove dust with a vacuum cleaner and wash lightly with water 2 117

Remove the tabs on the filter frame and replace with a new filter 117

Replacement 117

Set the air filter and the titanium apatite photocatalytic air purifying filter as they were and close the front panel 117

Take off the titanium apatite photocatalytic air purifying filter 117

Titanium apatite photocatalytic air purifying filter 117

Wash the air filters with water or clean them with vacuum cleaner 117

After operation stops turn off the breaker for the room air conditioner 118

Before a long idle period 118

Clean the air filters and set them again 118

Dispose of old filters as non flammable waste 118

Operate the fan only for several hours on a fine day to dry out the inside 118

Press mode button and select fan operation 118

Press on off button and start operation 118

Take out batteries from the remote controller 118

Titanium apatite photocatalytic air purifying filter without frame 1 set 118

To order titanium apatite photocatalytic air purifying filter contact to the service shop there you bought the air conditioner 118

Case explanation 119

These cases are not troubles 119

Trouble shooting 119

Troubleshooting 119

Case check 120

Check again 120

Call the service shop immediately 121

Disposal requirements 121

Important information regarding the refrigerant used 121

The power cord is abnormally hot or damaged an abnormal sound is heard during operation the safety breaker a fuse or the earth leakage breaker cuts off the operation frequently a switch or a button often fails to work properly there is a burning smell water leaks from the indoor unit 121

Turn the breaker off and call the service shop 121

Warning 121

We recommend periodical maintenance 121

Fault diagnosis 122

Operation manual 111 122

Sibe04 705 instruction 122

The code indication changes as shown below and notifies with a long beep 122

Caution for diagnosis 14 2 problem symptoms and measures 15 3 service check function 16 4 troubleshooting 17 124

Check 54 124

Part 6 service diagnosis 124

Caution for diagnosis 125

Problem symptoms and measures 126

In the arc433b series remote controller the temperature display sections on the main unit indicate corresponding codes 1 when the timer cancel button is held down for 5 seconds a 127

Indication flashes on the temperature display section 127

Note 1 a short beep and two consecutive beeps indicate non corresponding codes 2 to cancel the code display hold the timer cancel button down for 5 seconds the code display also cancels itself if the button is not pressed for 1 minute 127

Press the timer cancel button repeatedly until a continuous beep is produced 127

Service check function 127

Displayed only when system down occurs 128

Error codes and description 128

Troubleshooting 128

Indoor unit pcb abnormality 129

Freeze up protection control or high pressure control 130

Caution be sure to turn off power switch before connect or disconnect connector or parts damage may be occurred 131

Check no 6 refer to p 56 131

Service diagnosis 131

Troubleshooting 131

Troubleshooting sibe04 705 131

Fan motor dc motor or related abnormality 132

Caution be sure to turn off power switch before connect or disconnect connector or parts damage may be occurred 133

Check no 1 refer to p 54 133

Service diagnosis 133

Troubleshooting 133

Troubleshooting sibe04 705 133

Thermistor or related abnormality indoor unit 134

Signal transmission error between indoor and outdoor unit 135

Caution be sure to turn off power switch before connect or disconnect connector or parts damage may be occurred 136

Check no 0 refer to p 59 136

Service diagnosis 125 136

Sibe04 705 troubleshooting 136

Troubleshooting 136

Outdoor unit pcb abnormality 137

A compressor overload is detected through compressor ol 138

Check no 1 refer to p 59 138

Check no 4 refer to p 54 138

Check no 5 refer to p 55 138

Check no 6 refer to p 56 138

Electronic expansion valve defective 138

Four way valve malfunctioning 138

If the compressor ol is activated twice the system will be shut down 138

Malfunction decision conditions 138

Method of malfunction detection 138

Ol activation compressor overload 138

Outdoor unit pcb defective 138

Refrigerant shortage 138

Remote controller display 138

Service diagnosis 127 138

Sibe04 705 troubleshooting 138

Stop valve defective 138

Supposed causes 138

The error counter will reset itself if this or any other error does not occur during the following 60 minute compressor running time total time 138

The operating temperature condition is not specified 138

Troubleshooting 138

Water mixed in the local piping 138

A compressor lock is detected by checking the compressor running condition through the position detection circuit 139

Clearing condition continuous run for about 5 minutes normal 139

Compressor lock 139

Compressor locked 139

Judging from current waveform generated when high frequency voltage is applied to the compressor 139

Malfunction decision conditions 139

Method of malfunction detection 139

Remote controller display 139

Service diagnosis 139

Supposed causes 139

The system will be shut down if the error occurs 16 times 139

Troubleshooting 139

Troubleshooting sibe04 705 139

Dc fan lock 140

Input over current detection 141

Caution be sure to turn off power switch before connect or disconnect connector or parts damage may be occurred 142

Check no 4 refer to p 61 142

Check no 7 refer to p 57 142

Check no 8 refer to p 58 142

Service diagnosis 131 142

Sibe04 705 troubleshooting 142

Troubleshooting 142

Four way valve abnormality 143

Caution be sure to turn off power switch before connect or disconnect connector or parts damage may be occurred 144

Check no 1 refer to p 59 144

Check no 5 refer to p 55 144

Check no 6 refer to p 56 144

Service diagnosis 133 144

Sibe04 705 troubleshooting 144

Troubleshooting 144

60 class 71 class 110 120 145

Check no 1 refer to p 59 145

Check no 4 refer to p 54 145

Check no 6 refer to p 56 145

Discharge pipe temperature control 145

Discharge pipe thermistor defective heat exchanger or outdoor temperature thermistor defective 145

Electronic expansion valve defective 145

Four way valve malfunctioning 145

If a stop takes place 6 times successively due to abnormal discharge pipe temperature the system will be shut down 145

If the temperature being detected by the discharge pipe thermistor rises above c the compressor will stop the error is cleared when the temperature has dropped below c 145

Malfunction decision conditions 145

Method of malfunction detection 145

Outdoor unit pcb defective 145

Refrigerant shortage 145

Remote controller display 145

Service diagnosis 145

Stop valve defective 145

Supposed causes 145

The discharge pipe temperature control stop frequency drooping etc is checked with the temperature being detected by the discharge pipe thermistor 145

The error counter will reset itself if this or any other error does not occur during the following 60 minute compressor running time total time 145

Troubleshooting 145

Troubleshooting sibe04 705 145

Water mixed in the local piping 145

High pressure control in cooling 146

Caution be sure to turn off power switch before connect or disconnect connector or parts damage may be occurred 147

Check no 4 refer to p 54 147

Check no 6 refer to p 56 147

Check no 7 refer to p 57 147

Check no 9 refer to p 58 147

Service diagnosis 147

Troubleshooting 147

Troubleshooting sibe04 705 147

Compressor sensor system abnormality 148

Caution be sure to turn off power switch before connect or disconnect connector or parts damage may be occurred 149

Service diagnosis 149

Troubleshooting 149

Troubleshooting sibe04 705 149

A compressor startup failure is detected by checking the compressor running condition through the position detection circuit 150

Check no 3 refer to p 60 150

Clearing condition continuous run for about 5 minutes normal 150

Compressor itself defective 150

Compressor relay cable disconnected 150

Input voltage out of specification 150

Malfunction decision conditions 150

Method of malfunction detection 150

Outdoor unit pcb defective 150

Position sensor abnormality 150

Remote controller display 150

Service diagnosis 139 150

Sibe04 705 troubleshooting 150

Stop valve closed 150

Supposed causes 150

The compressor fails to start in about 15 seconds after the compressor run command signal is sent 150

The system will be shut down if the error occurs 8 times 150

Troubleshooting 150

Ct or related abnormality 151

Caution be sure to turn off power switch before connect or disconnect connector or parts damage may be occurred 152

Check no 2 refer to p 60 152

Service diagnosis 141 152

Sibe04 705 troubleshooting 152

Troubleshooting 152

P4 j3 j6 h9 153

Thermistor or related abnormality outdoor unit 153

Caution be sure to turn off power switch before connect or disconnect connector or parts damage may be occurred 154

Check no 6 refer to p 56 154

Discharge pipe thermistor 154

Outdoor air thermistor 154

Outdoor heat exchanger thermistor 154

Radiation fin thermistor 154

Service diagnosis 143 154

Sibe04 705 troubleshooting 154

Troubleshooting 154

Electrical box temperature rise 155

Caution be sure to turn off power switch before connect or disconnect connector or parts damage may be occurred 156

Check no 6 refer to p 56 156

Check no 7 refer to p 57 156

Check no 9 refer to p 58 156

Service diagnosis 145 156

Sibe04 705 troubleshooting 156

Troubleshooting 156

Radiation fin temperature rise 157

Caution be sure to turn off power switch before connect or disconnect connector or parts damage may be occurred 158

Check no 6 refer to p 56 158

Check no 7 refer to p 57 158

Check no 9 refer to p 58 158

Service diagnosis 147 158

Sibe04 705 troubleshooting 158

Troubleshooting 158

Output over current detection 159

Caution be sure to turn off power switch before connect or disconnect connector or parts damage may be occurred 160

Check no 3 refer to p 60 160

Check no 7 refer to p 57 160

Check no 8 refer to p 58 160

Service diagnosis 149 160

Sibe04 705 troubleshooting 160

Troubleshooting 160

Insufficient gas 161

Caution be sure to turn off power switch before connect or disconnect connector or parts damage may be occurred 162

Check no 4 refer to p 54 162

Check no 6 refer to p 56 162

Service diagnosis 151 162

Sibe04 705 troubleshooting 162

Troubleshooting 162

An abnormal voltage rise or drop is detected by checking the detection circuit or dc voltage detection circuit 163

An over voltage signal is fed from the over voltage detection circuit to the microcomputer or the voltage being detected by the dc voltage detection circuit is judged to be below 150 v for 0 second 163

Clearing condition continuous run for about 60 minutes normal 163

Low voltage detection or over voltage detection 163

Malfunction decision conditions 163

Method of malfunction detection 163

Over voltage detector or dc voltage detection circuit defective 163

Pam control part s defective 163

Remote controller display 163

Service diagnosis 163

Short circuit inside the fan motor winding 163

Supply voltage not as specified 163

Supposed causes 163

The system will be shut down if the error occurs 16 times 163

Troubleshooting 163

Troubleshooting sibe04 705 163

Signal transmission error on outdoor unit pcb 164

Electronic expansion valve check 165

Fan motor connector output check 165

How to check 165

Check no 5 166

Four way valve performance check 166

Service diagnosis 155 166

Sibe04 705 check 166

Check no 6 remove the connectors of the thermistors on the pcb and measure the resistance of each thermistor using tester the relationship between normal temperature and resistance is shown in the graph and the table below 167

Thermistor resistance check 167

Check no 7 168

Installation condition check 168

Service diagnosis 157 168

Sibe04 705 check 168

Check no 8 169

Check no 9 169

Check sibe04 705 169

Discharge pressure check 169

Outdoor unit fan system check with dc motor 169

Service diagnosis 169

Check no 0 measure the power supply waveform between pins 1 and 3 on the terminal board and check the waveform disturbance 170

Check no 1 170

Check to see if the power supply waveform is a sine wave fig 170

Check to see if there is waveform disturbance near the zero cross sections circled in fig 170

Fig fig 170

Inverter units refrigerant system check 170

Power supply waveforms check 170

Service diagnosis 159 170

Sibe04 705 check 170

Capacitor voltage check 171

Check no 2 before this checking be sure to check the main circuit for short circuit 171

Check no 3 171

Checking the capacitor voltage 171

Checking the power transistor 171

For the uvw make measurements at the faston terminal on the board or the relay connector 171

If unavoidably necessary to touch a live part make sure the power transistor s supply voltage is below 50 v using the tester 171

Never touch any live parts for at least 10 minutes after turning off the circuit breaker 171

Power transistor check 171

With the circuit breaker still on measure the voltage according to the drawing of the model in question be careful never to touch any live parts 171

Main circuit electrolytic capacitor check 172

Turning speed pulse input on the outdoor unit pcb check 172

Indoor unit 64 174

Outdoor unit 13 174

Part 7 removal procedure 174

Ftk x s 50 d 175

Indoor unit 175

Removal of air filter 175

Removal of front panel 177

Remove the front panel caution on mounting 178

When mounting the front panel fit the right and left rotary shafts one by one into the grooves and fully push them in position 178

Removal of front grille 179

Removal of horizontal blades and vertical blades 182

Remove the horizontal blade small while bending the fixed part at the center slightly 183

Removing the horizontal blade small 183

Unfasten the key type fixing shaft at the right side 183

Unfasten the left side 183

Removal of electrical box 185

Removal of pcb 188

Removal of drain pan unit 194

Removal of fan motor 198

Remove the fan motor 199

Unfasten the hook a of the fan motor fixing plate with your thumb 199

Unfasten the hook c 199

Removal of heat exchanger 200

Removal of fan rotor 203

Ftk x s 50 60 71 f ft y n 50 60 f 206

Removal of air filter front panel 206

Removal of front grille 209

Removal of horizontal blades vertical blades 211

Removal of electrical box pcb swing motor 213

Removal of heat exchanger 219

Removal of fan rotor fan motor 222

Outdoor unit 224

Removal of the panels and plates 224

Rk x s 50 60 f r y n 50 60 e 224

Removal of the fan motor propeller fan 228

Pull the fan motor out 231

Put the lead wire through the back of the motor when reassembling so as not to be entangled with the propeller fan 231

Removal of the electrical box 232

Lift the electrical box and remove it 235

Release the clamp and undo the wire from the hook 235

Removal of the pcb 236

Lift up and remove the pcb 238

Loosen the 3 fixing screws for the main pcb 238

Undo the 4 hooks 238

Removal of the sound blanket 239

Removal of the four way valve 241

Removal of the electronic expansion valve 242

Removal of the compressor 244

Removal of outer panels 247

Rk x s 71 f 247

Lift the top panel and remove it 249

Remove the 2 screws on the front and 1 screw on the right side panel 249

Remove the 5 screws 249

Removing the right side panel 249

Slide the panel downward to undo 2 hooks on the back side 250

Remove the 2 screws 251

Remove the right side panel 251

Removing the front panel 2 251

Remove the front panel 2 252

Slide the panel downward to undo the hook 252

Next slide the grille downward to undo the 2 hooks at the top 254

Remove the discharge grille 254

Remove the propeller fan fixing nut fan fixing nut m8 254

Remove the 2 fixing screws on the partition plate 255

Remove the screw at bottom left of the front 255

Remove the screw at bottom of the left side 255

Remove the screw at bottom of the back side 256

The front panel 1 is provided with a hook on its front lift the front panel off position to remove it 256

Remove the 3 screws 258

Remove the wire fixing plate 258

Slide the panel leftward to undo the hook and remove the partition plate 258

Remove the 3 fixing screws on the partition plate 259

The holder is secured in the clearances of the heat exchanger fins 259

Undo the holder of the thermistor 259

Lift the panel upward to undo the 2 hooks and remove it 260

Remove the fixing screw from the bottom frame 260

Remove the fixing screw from the shut off valve mounting plate 260

Remove the rear panel 261

Removal of the electrical box 262

Removal of the pcb 266

Lift up and remove the pcb 268

Loosen the 3 fixing screws for the main pcb 268

Undo the 4 hooks 268

Removal of fan motor 269

Removal of coils thermistors 270

Remove the discharge pipe thermistor 271

Remove the sound blanket top upper 271

Slightly open the sound blanket 271

Remove the fixture 272

Remove the four way valve coil 272

Remove the screw 272

Removing the four way valve coil and motorized valve coil 272

Removal of sound blanket 273

Remove the sound blanket outer sleeve 275

Procedure warning be sure to wait 10 minutes or more after turning off all power supplies before disassembling work 276

Pull out the 3 leads using long nose pliers 276

Removal of compressor 276

Remove the 3 screws 276

Remove the ol 276

Remove the terminal cover 276

U red v yellow w blue 276

Others 68 278

Part 8 others 278

Others 279

Test run from the remote controller 279

Control pcb of the indoor unit 1 remove the front grille 3 screws 2 remove the electrical box 1 screw 3 remove the drip proof plate 4 tabs 4 cut the address jumper ja on the control pcb 280

How to set the different addresses 280

Jumper setting 280

Jumper settings 280

When two indoor units are installed in one room the two wireless remote controllers can be set for different addresses 280

When two units are installed in one room 280

Wireless remote controller 1 slide the front cover and take it off 2 cut the address jumper j4 280

Part 9 appendix 282

Piping diagrams 72 282

Wiring diagrams 76 282

Cooling only 283

Ftks50d2v1w l ftks50fv1b ftks60fv1b ftn50fv1b ftn60fv1b 283

Ftks71fv1b 283

Indoor units 283

Piping diagrams 283

Appendix 273 284

Ftxs50d2v1w l ftxs50fv1b ftxs60fv1b ftyn50fv1b ftyn60fv1b 284

Ftxs71fv1b 284

Heat pump 284

Sibe04 705 piping diagrams 284

Appendix 285

Cooling only 285

Outdoor units 285

Piping diagrams sibe04 705 285

Rks50f2v1b rks60f2v1b rn50e3v1b rn60e3v1b 285

Rks71fv1b 285

Appendix 275 286

Heat pump 286

Rxs50f2v1b rxs60f2v1b ryn50e3v1b ryn60e3v1b 286

Rxs71fv1b 286

Sibe04 705 piping diagrams 286

Appendix 287

Ftks50d2v1w l ftxs50d2v1w l 287

Ftks50fv1b ftks60fv1b ftks71fv1b ftxs50fv1b ftxs60fv1b ftxs71fv1b 287

Indoor units 287

Wiring diagrams 287

Wiring diagrams sibe04 705 287

Appendix 277 288

D038532f 288

Ftn50fv1b ftn60fv1b ftyn50fv1b ftyn60fv1b 288

Sibe04 705 wiring diagrams 288

Appendix 289

Cooling only 289

Outdoor units 289

Rks50f2v1b 289

Rks60f2v1b rn50e3v1b rn60e3v1b 289

Wiring diagrams sibe04 705 289

Appendix 279 290

D053930b 290

Rks71fv1b 290

Sibe04 705 wiring diagrams 290

Appendix 291

Heat pump 291

Rxs50f2v1b 291

Rxs60f2v1b ryn50e3v1b ryn60e3v1b 291

Wiring diagrams sibe04 705 291

Appendix 281 292

D053931b 292

Rxs71fv1b 292

Sibe04 705 wiring diagrams 292

Numerics 294

Drawings flow charts 298

Daikin RYN60E3V1B [178/300] When mounting the front panel fit the right and left rotary shafts one by one into the grooves and fully push them in position

Содержание

Похожие устройства
