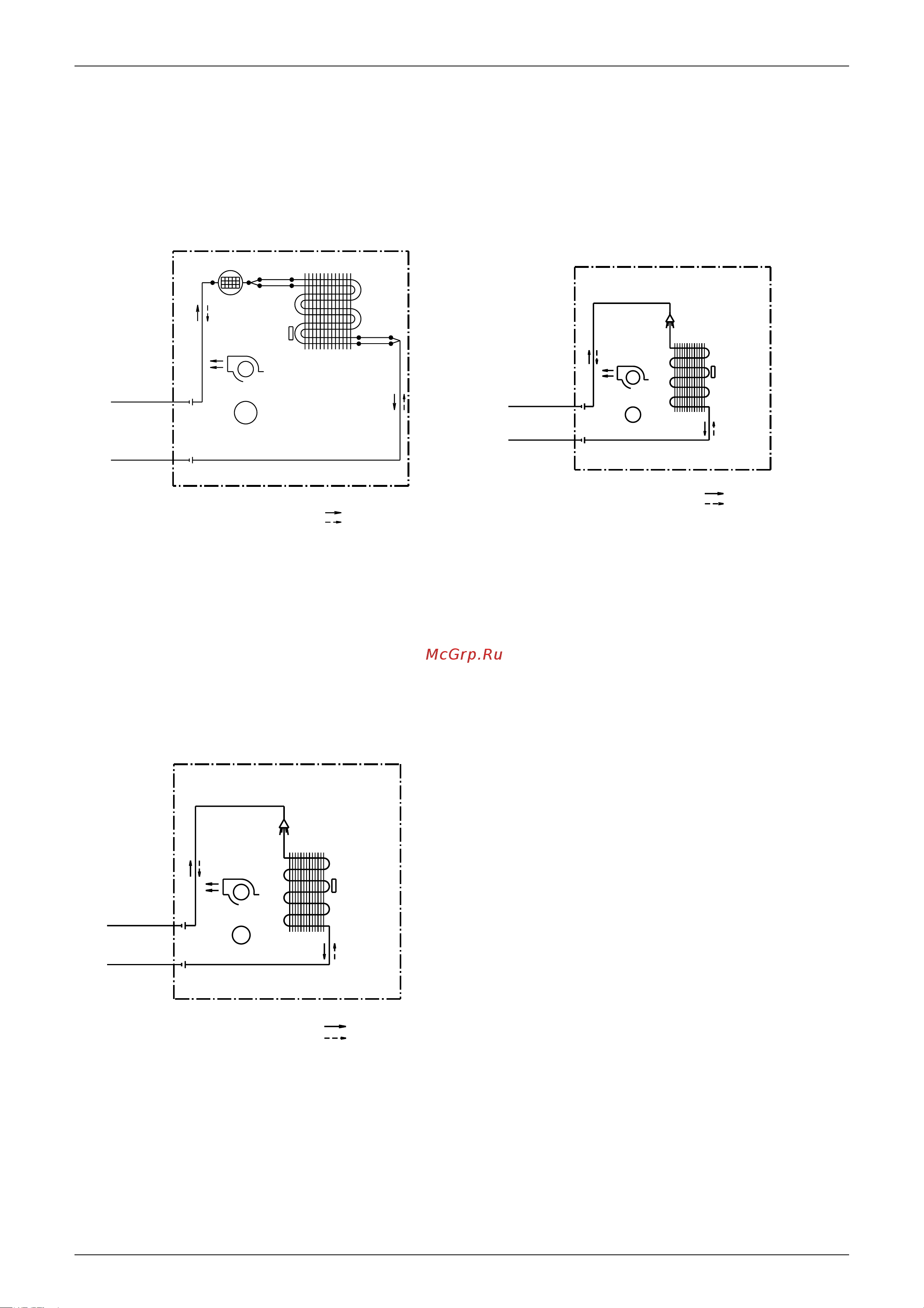

SiBE04-705 Piping Diagrams
Appendix 273
1.1.2 Heat Pump
FTXS50D2V1W(L) FTXS50FV1B, FTXS60FV1B
FTYN50FV1B, FTYN60FV1B
FTXS71FV1B
FIELD PIPING
FIELD PIPING
(
6.4CuT
)
(
12.7CuT
)
7.9CuT
MAFFLER ASSY
CROSS FLOW FAN
FAN MOTOR
ON HEAT EXCH.
THERMISTOR
INDOOR UNIT
M
6.4CuT
7.0CuT
9.5CuT
HEAT EXCHANGER
REFRIGERANT FLOW
HEATING
COOLING
6.4CuT
6.4CuT
4D047913D
FIELD PIPING
FIELD PIPING
(
12.7CuT
)
(
6.4CuT
)
CROSS FLOW FAN
FAN MOTOR
(
7.9CuT
)
INDOOR UNIT
(
12.7CuT
)
M
HEAT EXCHANGER
REFRIGERANT FLOW
ON HEAT EXCH.
THERMISTOR
HEATING
COOLING
4D040081Q
(
15.9CuT
)
FIELD PIPING
FIELD PIPING
(
6.4CuT
)
CROSS FLOW FAN
FAN MOTOR
(
7.9CuT
)
INDOOR UNIT
(
12.7CuT
)
M
HEAT EXCHANGER
REFRIGERANT FLOW
ON HEAT EXCH.
THERMISTOR
COOLING
HEATING
4D040082P
