SiBE04-705 Outdoor Unit
Removal Procedure 265

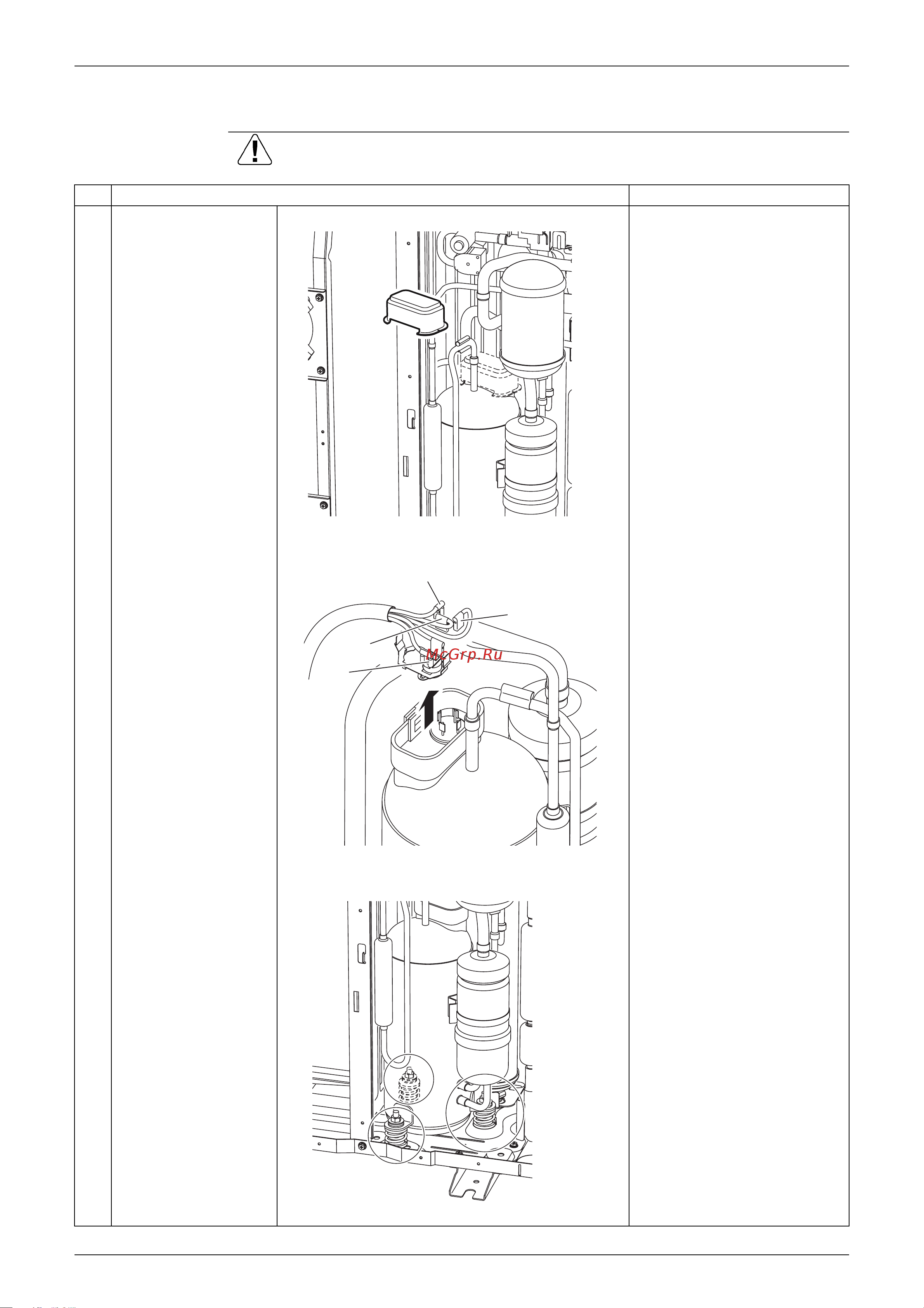

2.2.7 Removal of Compressor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1
Remove the terminal
cover.
2
Pull out the 3 leads
using long-nose pliers.
U:red, V:yellow, W:blue
3
Remove the OL.
4
Remove the 3 screws.
(R7020)
(R6467)
W(blue)
U(red)
V(yellow)
OL
(R7021)
