Daikin RYN60E3V1B [177/300] Removal of front panel
![Daikin RYN60E3V1B [177/300] Removal of front panel](/views2/1776922/page177/bgb1.png)
Indoor Unit SiBE04-705
166 Removal Procedure

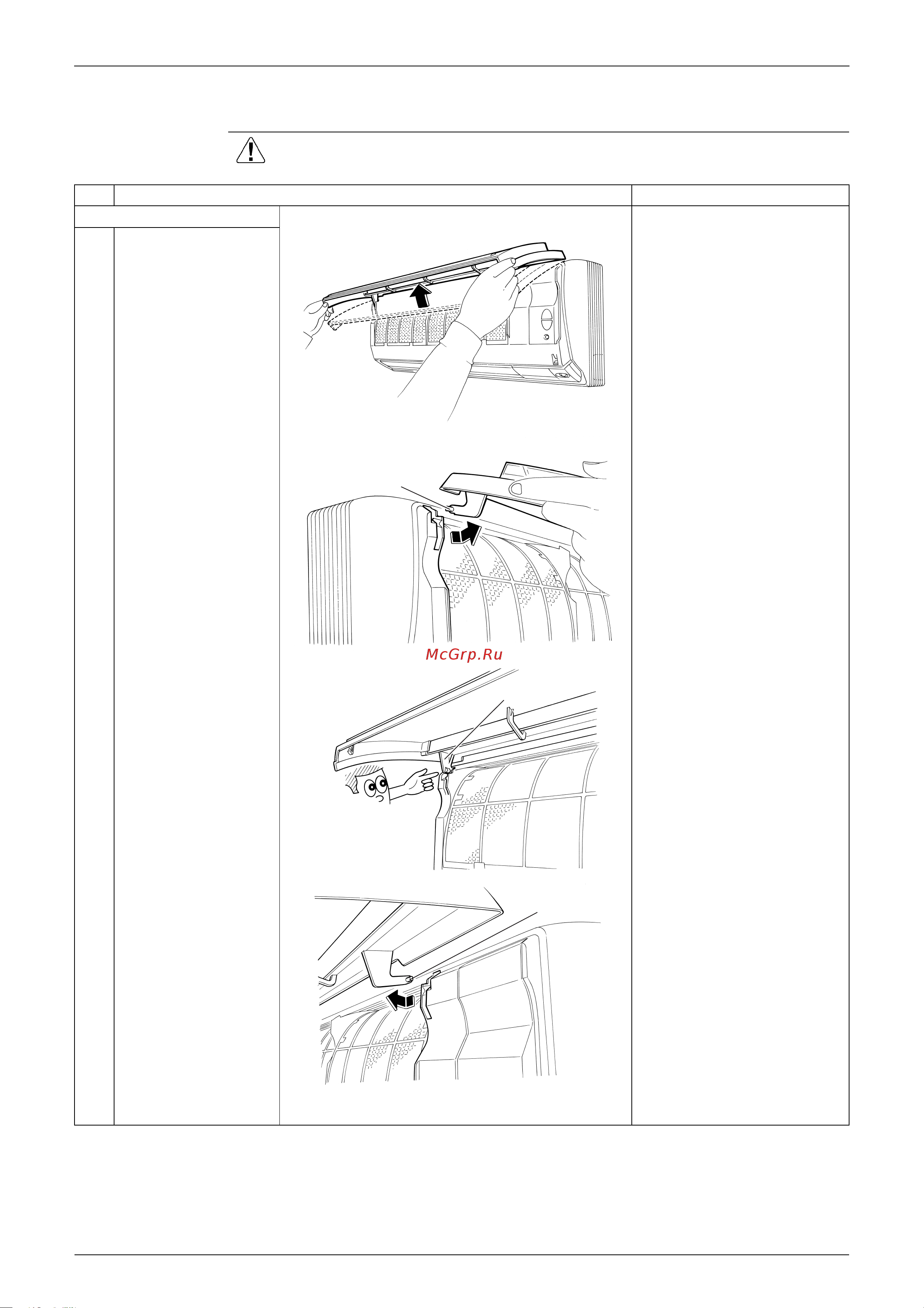

1.1.2 Removal of Front Panel
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1. Removing the front panel
1
Put your fingers on the
right and left projections
of the front panel, and
open the panel over the
position where it will
stop.
2
3
4
Slide the left rotary
shaft to the right and
release it.
When mounting the
front panel, make sure
that the projection is
fitted in the guide
before closing the
panel.
Slide the right rotary
shaft to the left and
release it.
Projection
R
otary shaft
Rotary shaft
(R4312)
(R4313)
(R4314)
(R4315)
