Indoor Unit SiBE04-705

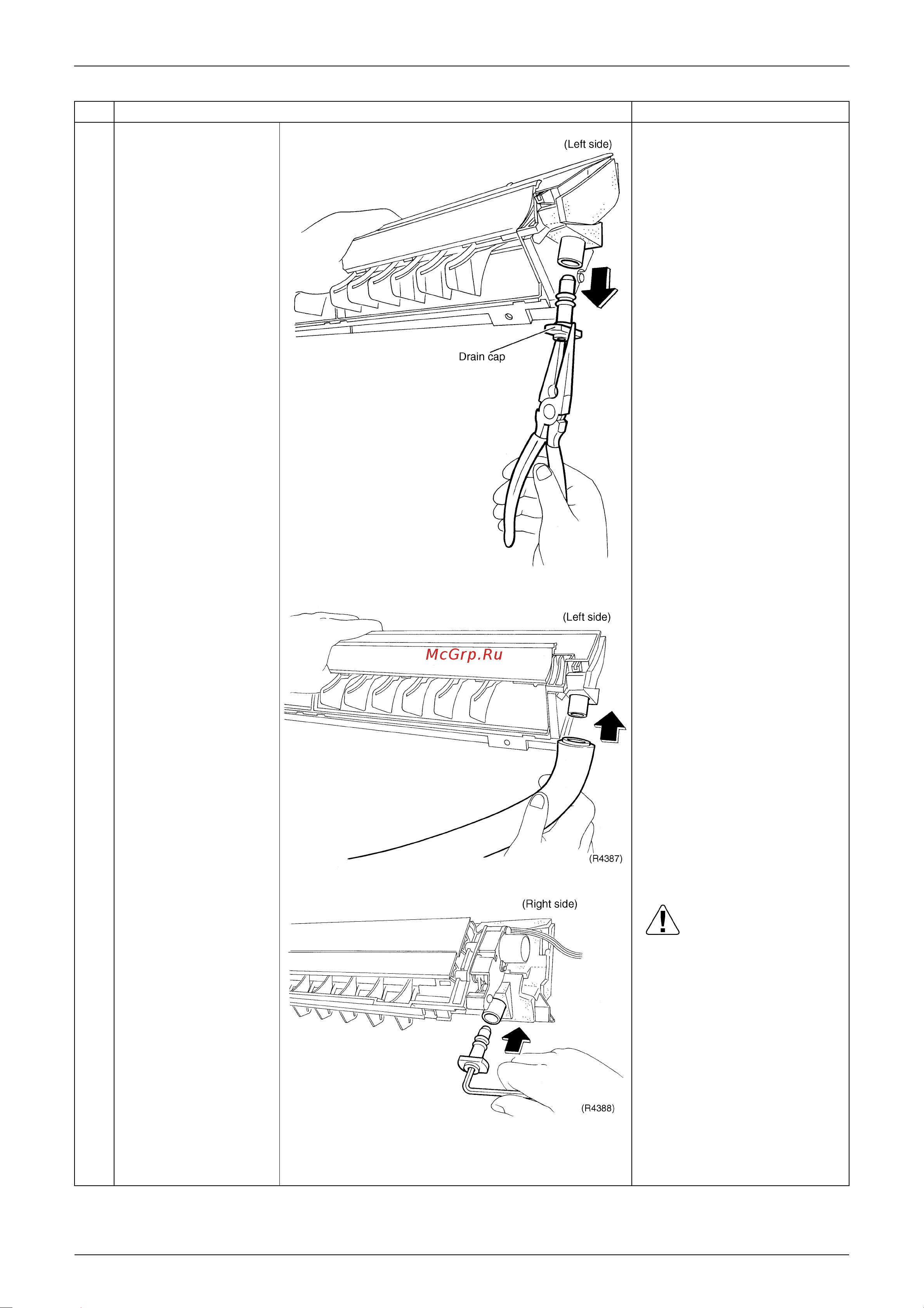

186 Removal Procedure
2
Remove the drain cap
located at the left side
of the drain pan unit.
3
Insert the drain hose to
the left side.
4
Press the removed
drain plug into the right
side with an Allen
wrench (4mm).
Use a 4mm Allen wrench.
Caution
Do not thrust in the drain
plug with a sharp-pointed
tool like a screwdriver. (The
drain plug may be broken,
resulting in water leakage.)
Step Procedure Points
