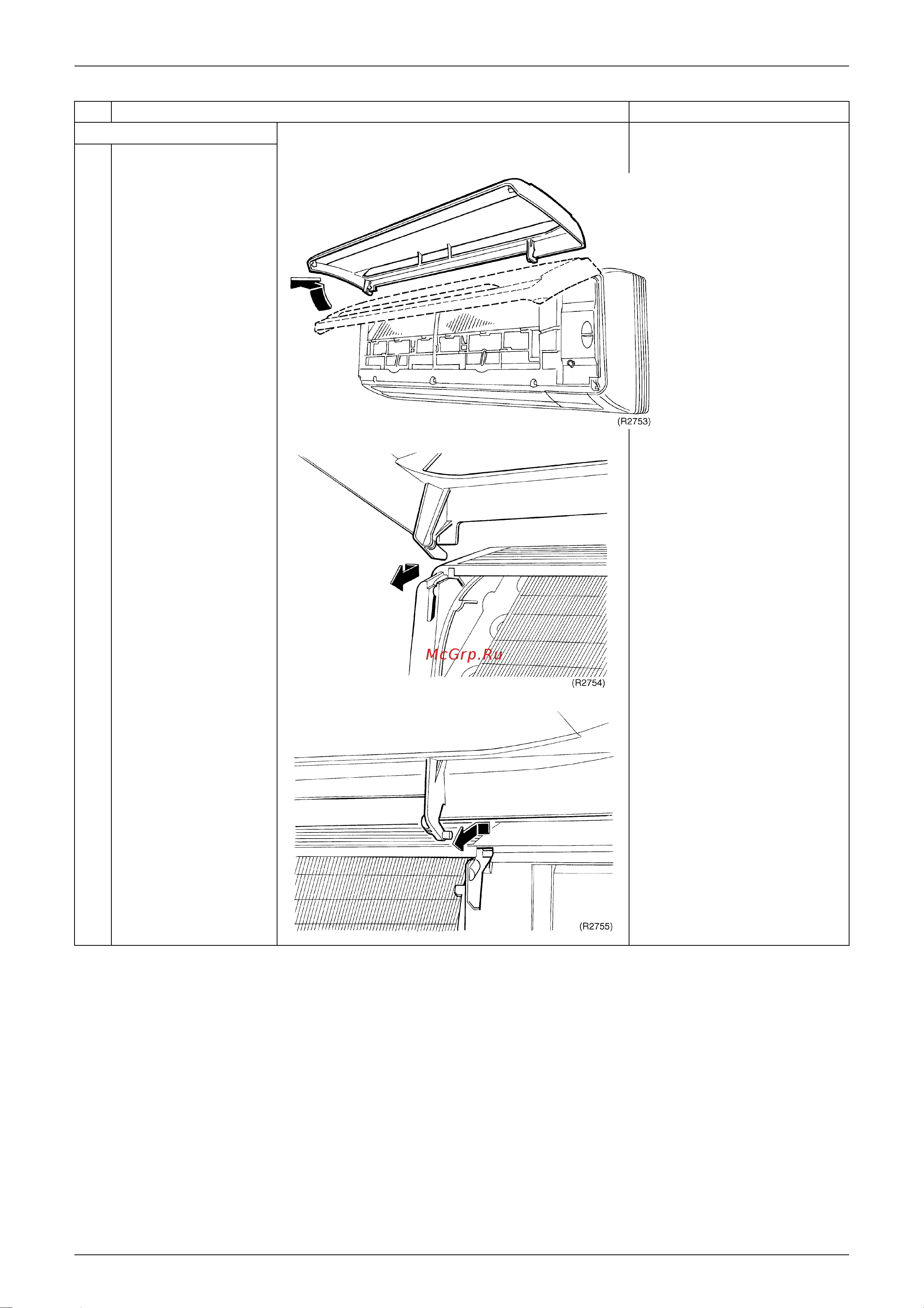

SiBE04-705 Indoor Unit
Removal Procedure 197
4. Remove the front panel.
1
While opening the front
panel further than it
stops, release both
axes and remove the
front panel.
Slide the front panel side to
side to release each axis.
Align the right and left axes
with grooves in turn and
insert them to the end when
installing.
Step
Procedure Points
