Indoor Unit SiBE04-705

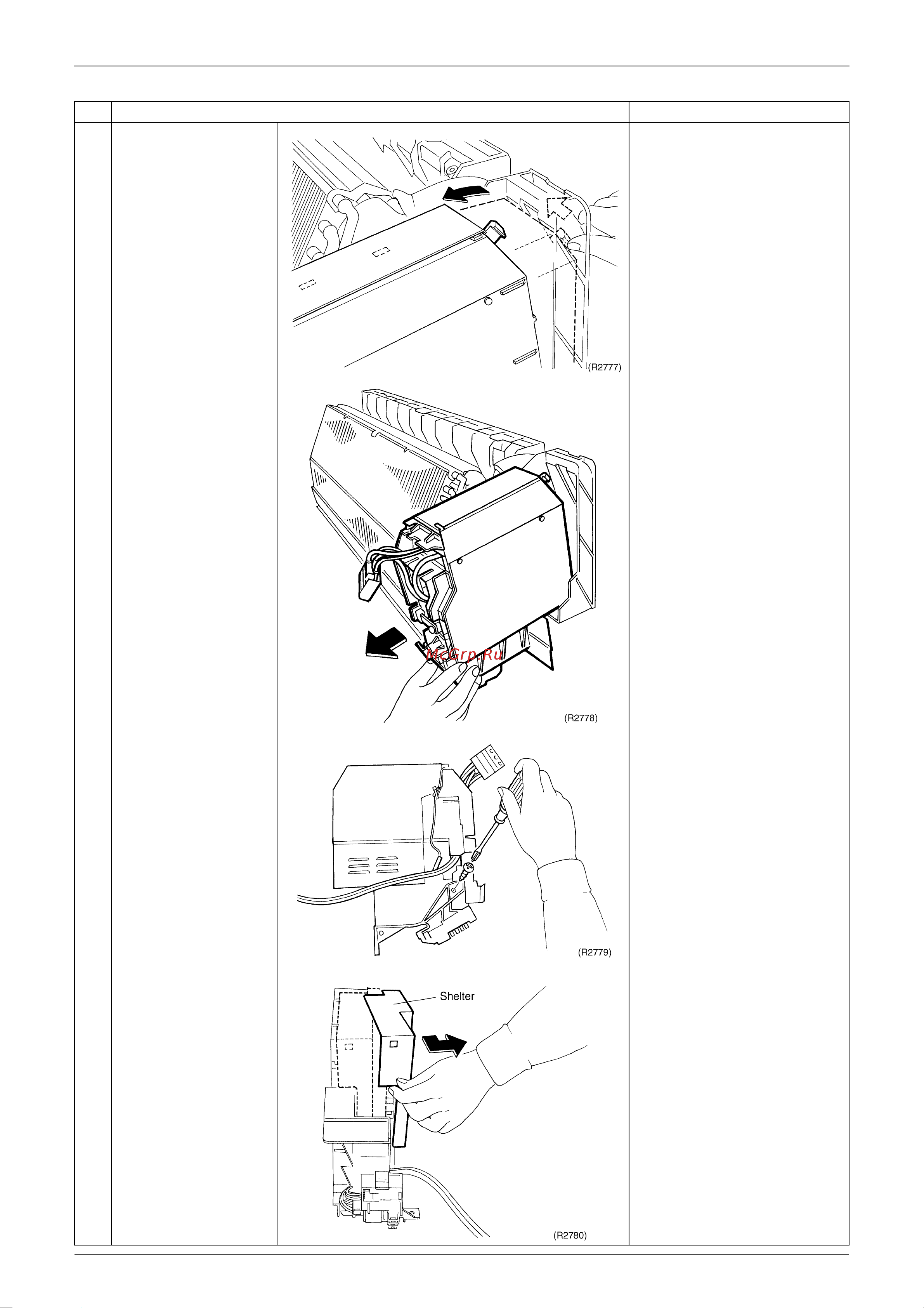

204 Removal Procedure
5
Dislocate the electrical
box to the left and undo
the back hook.
The electrical box has a
hook on its back.
6
Pull the electrical box
out towards you.
Catch the back hook of the
electrical box when
reassembling.
7
Loosen the screw on
the electrical box.
Screw: M4×16
8
Push the shelter up and
undo the hook.
Step
Procedure Points
