SiBE04-705 Indoor Unit
Removal Procedure 207

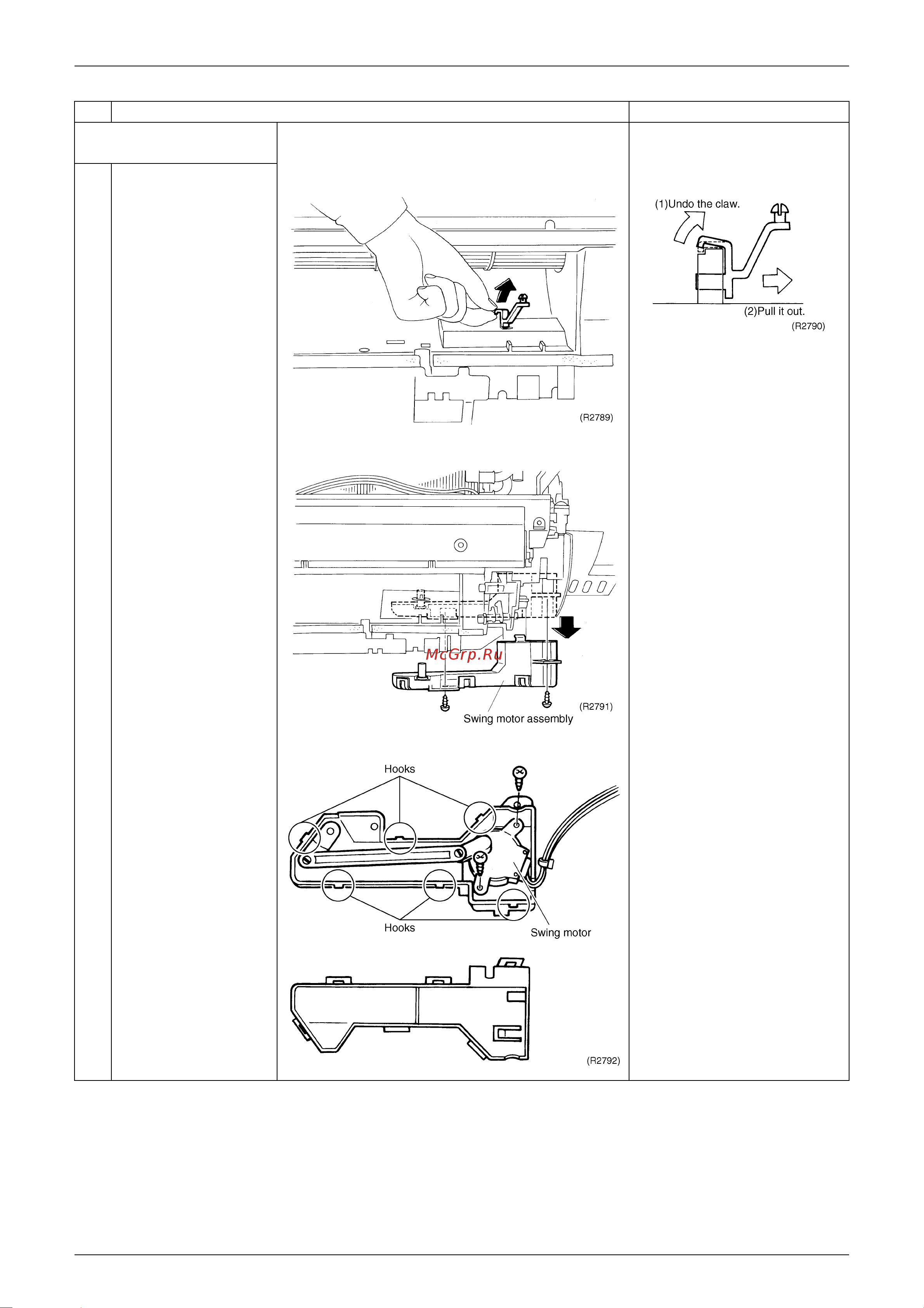

7. Remove the swing motor
for vertical blades.
1
Release the swing axis
on the right side.
Releasing the swing axis
2
Loosen the 2 screws
and detach the swing
motor assembly.
3
Loosen the 2 screws
and remove the swing
motor.
6 hooks hold the assembly.
Step
Procedure Points
