SiBE04-705 Outdoor Unit
Removal Procedure 215
5

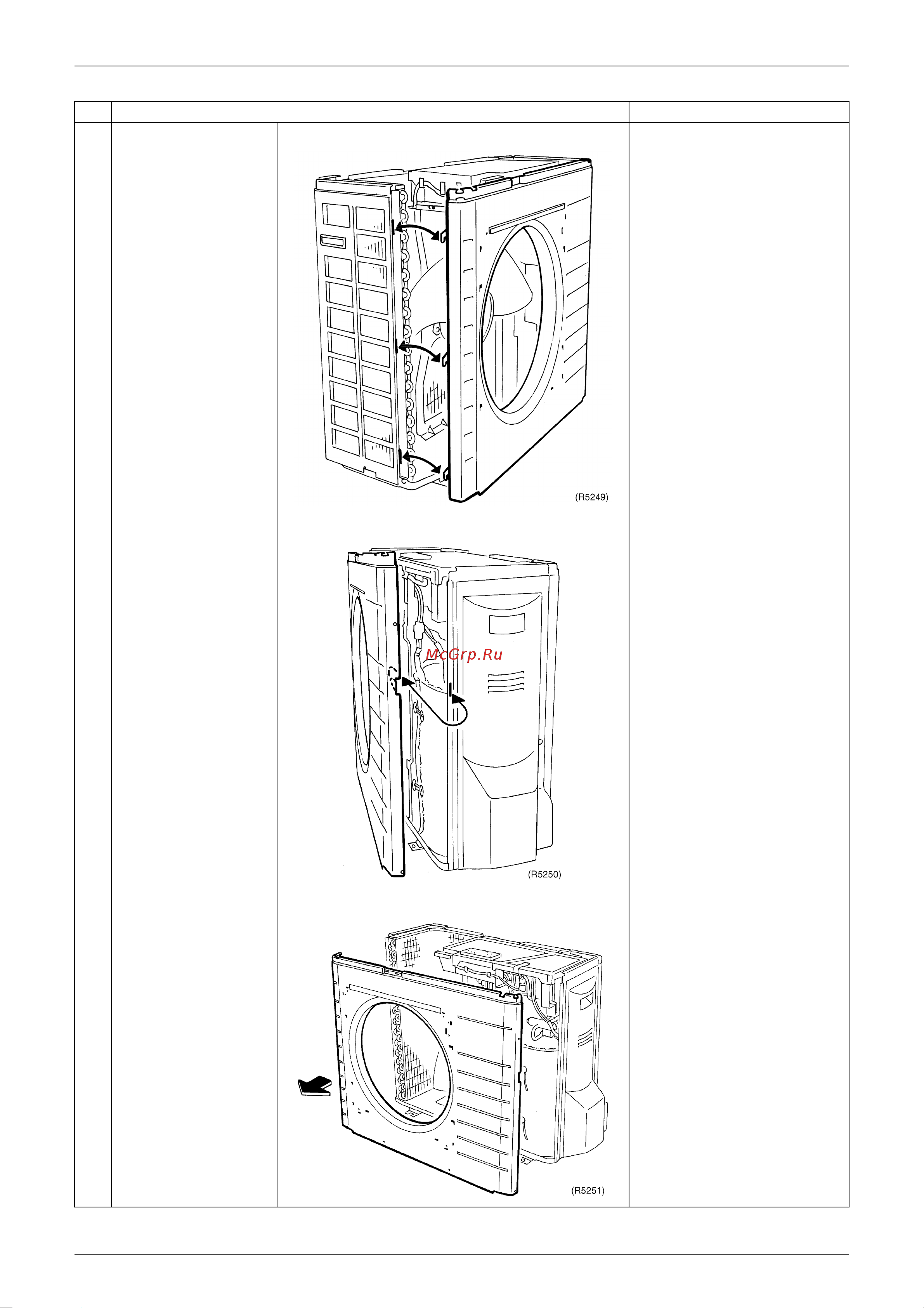

Undo the left side
hooks, and then the
right side hook.
Remove the front panel.
Lift the front panel and
remove it while pushing the
left side panel inwards.
Lift the front panel and undo
the right side hook.
Fit the right side of the front
panel first when installing.
Step
Procedure Points
