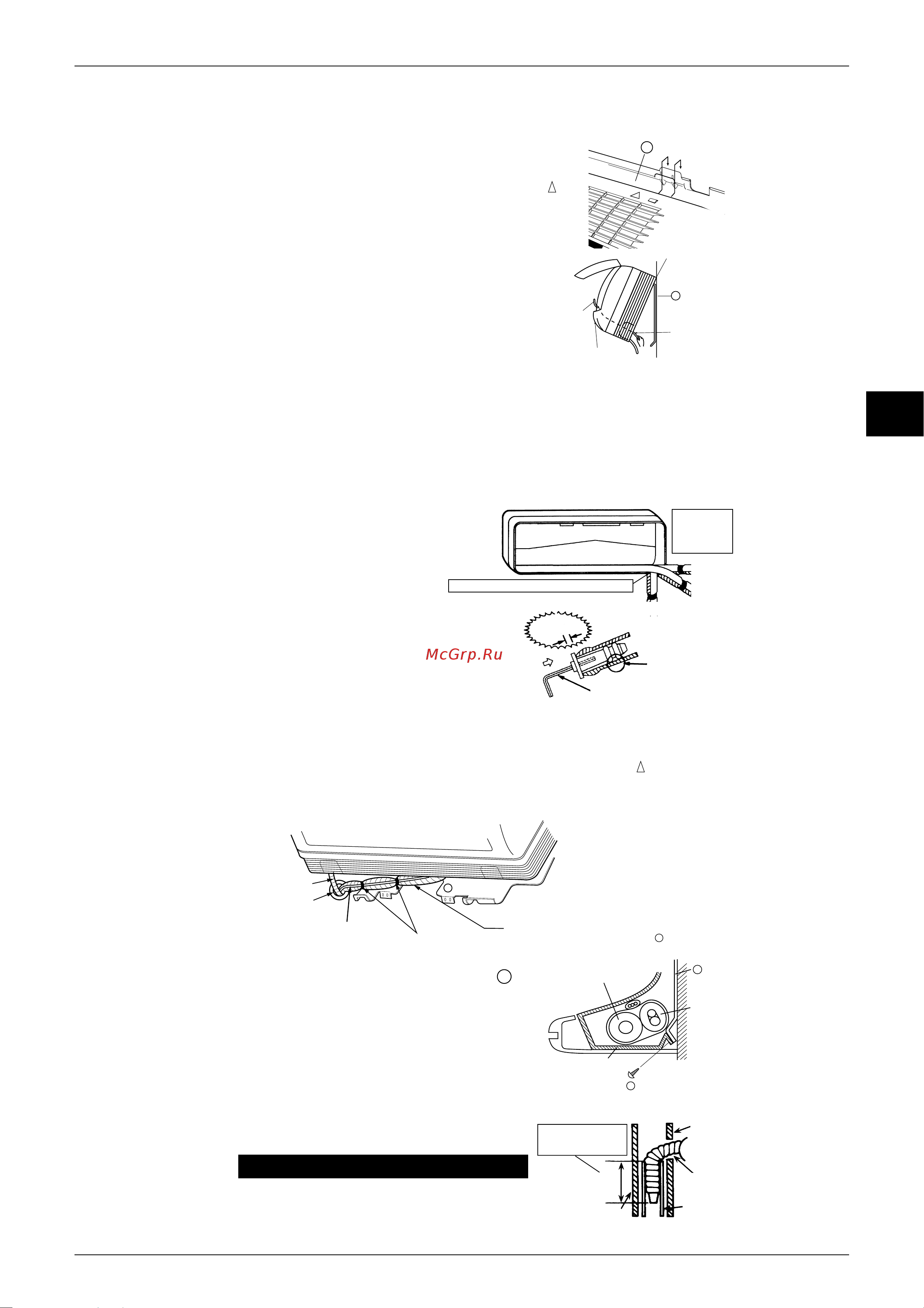

ED12-321A Indoor Units

Installation Manual 145

4

Wire guide

When stripping

the ends of

interconnecting wires

in advance, bind right

ends of wires with

insulating tape.

Hang indoor unit's

hook here.

Interconnecting

wires

Mounting plate

A

Outer wall

Inner wall

Vinyl chloride

drain pipe

(VP-30)

Drain hose

Insert drain hose to this

depth so it won’t be

pulled out of drain pipe.

50 mm

or more

Remove pipe port cover here for left-bottom piping

Remove pipe

port cover here

for left-side

piping

Left-bottom piping

Left-side

piping

Left-back

piping

No gap

Do not apply lubricating

oil (refrigerant machine

oil) when inserting

Application of causes

deterioration and drain

leakage of the plug

Insert a hexagon wrench (4 mm)

• How to set drain plug

A

Mounting plate

Wrap insulating tape around the bent portion of refrigerant pipe.

Overlap at least half the width of the tape J with each turn.

Drain

hose

Caulk this hole

with putty or

caulking material.

Bind with plastic tape.

Interconnecting

wires

A

Mounting plate

Drain hose

Bottom frame

A

Mounting

plate

Refrigerant

pipes

H

M4 x 12L (2 points)

3) Pass the drain hose and refrigerant pipes

through the wall hole, then set the indoor unit

on the mounting plate hooks by using the

markings at the top of the indoor unit as a

guide.

4) Open the front grille, then open the service lid.

(Refer to Installation Tips.)

5) Pass the interconnecting wires

from the outdoor unit through the

feed-through wall hole and then

through the back of the indoor unit.

Pull them through the front side.

Bend the ends of tie wires upward in advance for easier work. (If

the interconnecting wire ends are to be stripped first, bundle wire

ends with adhesive tape.)

6) Press the indoor unit's bottom panel with both hands to set it on the

mounting plate hooks. Make sure the wires do not catch on the

edge of the indoor unit.

3-2. Left-Side, Left-Back, or Left Bottom Piping

1) Attach the drain hose to the

underside of the refrigerant

pipes with adhesive vinyl tape.

2) Be sure to connect the drain hose to

the drain port in place of a drain plug.

3) Shape the refrigerant pipe along the pipe path marking on the

mounting plate.

4) Pass drain hose and refrigerant pipes through the wall hole, then

set the indoor unit on mounting plate hooks, using the markings at

the top of indoor unit as a guide.

5) Pull in the interconnecting wires.

6) Connect the inter-unit piping.

Note:

1) Wrap the refrigerant pipes and drain

hose together with insulation tape J as

right figure, in case of setting the drain

hose through the back of the indoor unit.

2) If it is difficult to fix the claws of the

bottom frame on the catches of the

mounting plate. Secure indoor unit to the

mounting plate with screws (M4 x 12L).

3-3. Wall Embedded Piping

Follow the instructions given under

1) Insert the drain hose to this depth so it

wont be pulled out of the drain pipe.

Left-Side, Left-Back, or Left Bottom Piping
