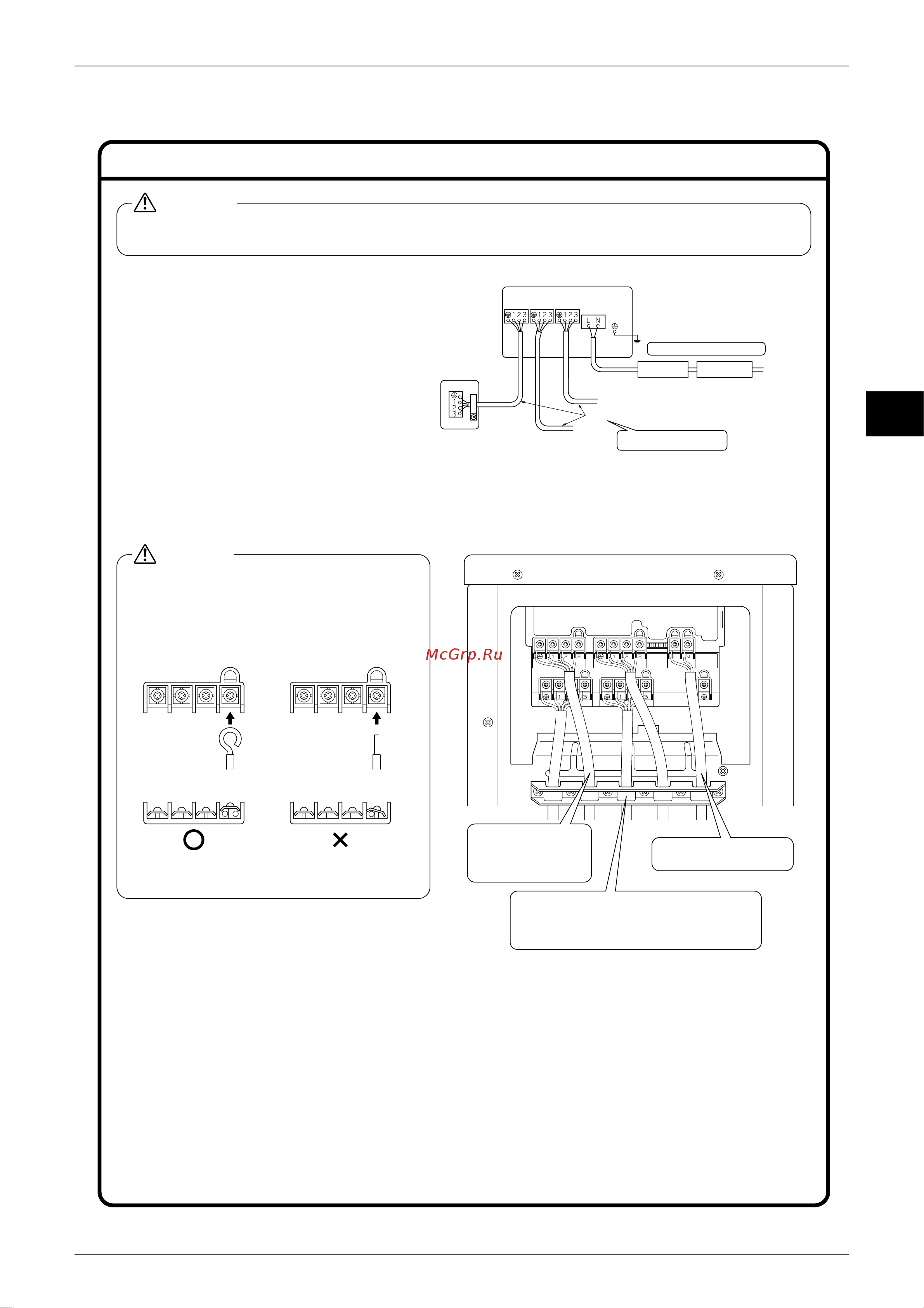

ED12-321A Outdoor Units
Installation Manual 177
4
Wiring
Room
A
Room A
To room B
To room C
Room
C
Room
B
Outdoor unit
Indoor unit
Safety breaker
Earth leakage
circuit breaker
50Hz 220-240V
60Hz 220-230V
Be sure to use the dedicated circuits.
H05VV
If the length of a connection wire is
10 m or more, use φ2.0-mm wire.
Shape the wires so that
there is no lifting of the
service hatch or other
structural parts.
Secure the branch wiring firmly using the 4
included screws, as shown in the figure.
Secure firmly, making sure no outside pressure is
exerted on the terminals.
Use the specified wires and
connect them securely.
● Do not turn ON the safety breaker until all work is
completed.
(1) Strip the insulation from the wire (20 mm).
(2) Connect the connection wires between the indoor
and outdoor units so that the terminal numbers
match. Tighten the terminal screws securely. We
recommend a flathead screwdriver be used to
tighten the screws. The screws are packed with
the terminal board.
(3) Pull the wire and make sure that it does not
disconnect. Then fix the wire in place with a wire
stop.
Do not use tapped wires, stand wires, extensioncords, or starbust connections, as they may cause overheating,
electrical shock, or fire.
WARNING
When connecting the connection wires to the
terminal board using a single core wire, be sure to
perform curling.
Problems with the work may cause heat and fires.
CAUTION
