Indoor Units ED12-321A
158 Installation Manual

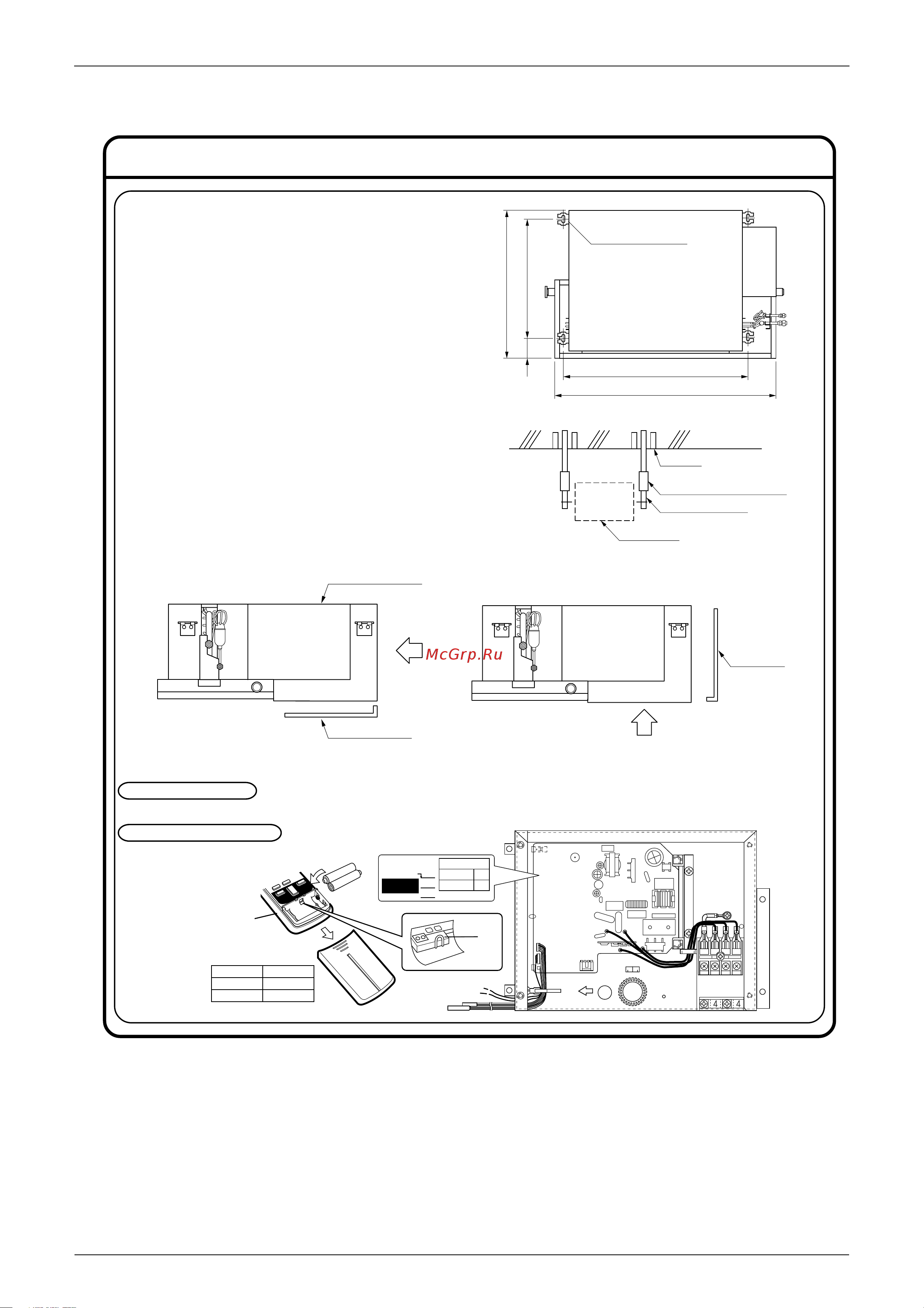

PREPARATIONS BEFORE INSTALLATION
■ Relation of the unit to the suspension bolt positions
■ Install the suspension bolts.
(Use M10-size bolts for the suspension bolts.)
In order to reinforce the ceiling bearing the weight of the unit, use
anchors when installing onto an existing ceiling or use sunken inserts,
sunken anchors or other commercially available parts when installing
onto a new ceiling.
NOTE) All of the above parts are commercially available.
■ Mount chamber cap
■
When two indoor units are installed in one room, one of the two wireless remote controllers can be easily set for another addresses.
PCB in the indoor unit
●
Cut the jumper JA on PCB.
Wireless remote controller
●
Cut the jumper J4.
500
Suspension bolt pitch 755
900
55
Suspension bolt pitch
580
4-Suspension bolt
Anchor
Long nut or turn-buckle
Suspension bolt
Indoor unit
(Installation example)
Ceiling slab
Chamber cap
Chamber cover
(In case of back-suction)
Air
Air
(In case of bottom-suction)
Chamber
cap
JA
ADDRESS:
CUT
EXIST
1
2
ADDRESS
JA
JB
JC
J4 ADDRESS
EXIST 1
CUT 2
Wireless
remote
controller
J4
